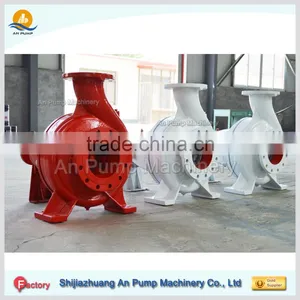

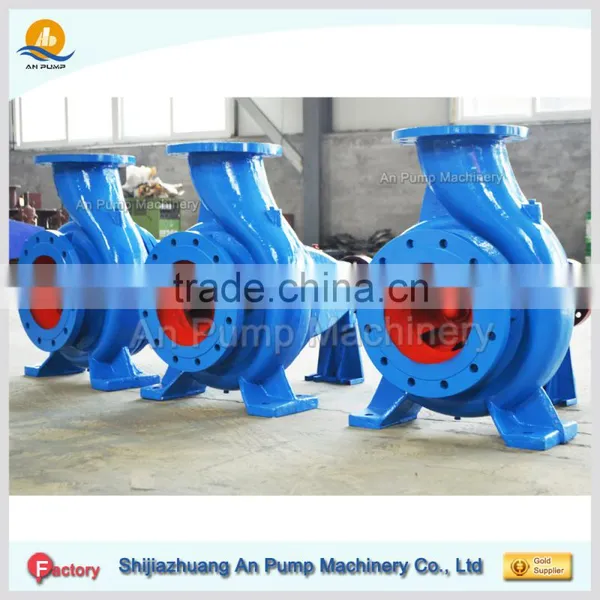

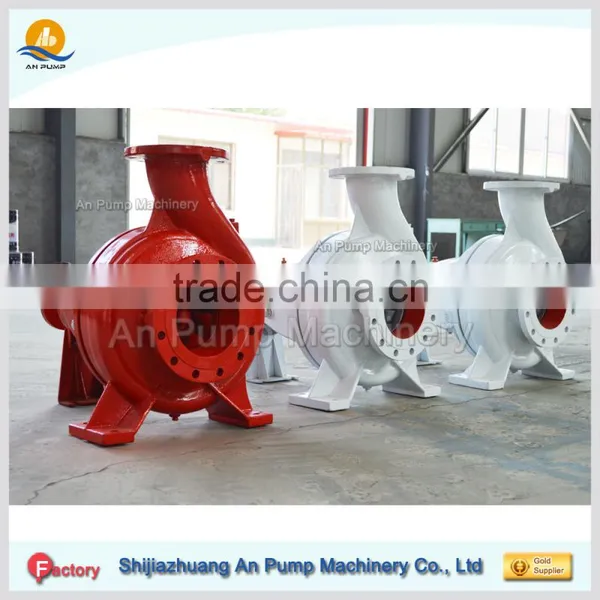

Centrifugal single stage end suction condensate pump for air conditioner
Centrifugal single stage end suction condensate pump for air conditioner details
Working Principle: |
Centrifugal type |
Main applications: |
Chemical |
Driver: |
Electric motor or Diesel engine |
Power Specs: |
220V, 240V, 380V, 400V, 415V, 440V, 50hz/60hz |
Max.permissible fluid temperature: |
105°C(221°F) |
Type of connection: |
Flange |
Installation position: |
Horizontal chemical pump |
Casing/Inner parts material: |
Cast iron,SS 304,SS 316L,Duplex SS |
Shaft seal type: |
Mechanical seal |
Maximum drive rating: |
90KW(10HP) |
Maximum caliber: |
300mm(12 inch) |
Maximum discharge-side pressure: |
1.25MPa(12.5bar) |
Maximum head: |
125m(410ft) |
Flow rate range: |
6.3-400m3/h(27.7-1760US.GPM) |
Centrifugal single stage end suction condensate pump for air conditioner introduction
QI series pump is single-stage , single suction centrifugal pump , desiged as per the interational standard
ISO2858 .It is a replacement of type BA water pump which is applicable to industrial and urban water supply
and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and
chemical properties similar to clean water with a temperature not exceeding 80°C.
Centrifugal single stage end suction condensate pump for air conditioner parameter
Centrifugal End Suction Pump Performance | |||||
Pump Type |
Capacity (m3/h) |
Head (m) |
Speed (rpm) |
Motor Power(kw) |
Eff (%) |
QI 50 |
3-14 |
3.7-82 |
1450-2900 |
0.55-11 |
21.5-60 |
QI 65 |
6-30 |
3.8-115.4 |
1450-2900 |
0.55-30 |
25-75 |
QI 80 |
12-60 |
3.6-128 |
1450-2900 |
0.55-37 |
39-75 |
QI 100 |
24.3-120 |
3.7-133 |
1450-2900 |
1.1-75 |
51-78 |
QI 125 |
51.4-240 |
8.4-133 |
1450-2900 |
4-110 |
52-81 |
QI 150 |
104-240 |
13-53 |
1450 |
11-45 |
62-81 |
QI 200 |
194-460 |
13.1-55 |
1450 |
22-90 |
65.5-82 |
QI 250 |
320-760 |
22.6-52 |
1480 |
75-132 |
67.5-84.5 |
QI 300 |
530-1200 |
21.9-38 |
1480 |
90-132 |
61.66-107.6 |
Centrifugal single stage end suction condensate pump for air conditioner structure
Centrifugal single stage end suction condensate pump for air conditioner curve
Centrifugal single stage end suction condensate pump for air conditioner application
♦ urban water supply and drainage |
♦ central heating system water supply and sewerage |
♦ iron and steel metallurgy enterprises |
♦ paper mills |
♦ petrochemical refineries |
♦ oil fields |
♦ construction of thermal power plants and power stations |
♦ airports, chemical factories |
♦ textile mills, sugar factories |
♦ chemical plants, power stations |
♦ mines |
♦ farmland drainage irrigation and hydraulic engineering. |
Centrifugal single stage end suction condensate pump for air conditioner packing and shipping
