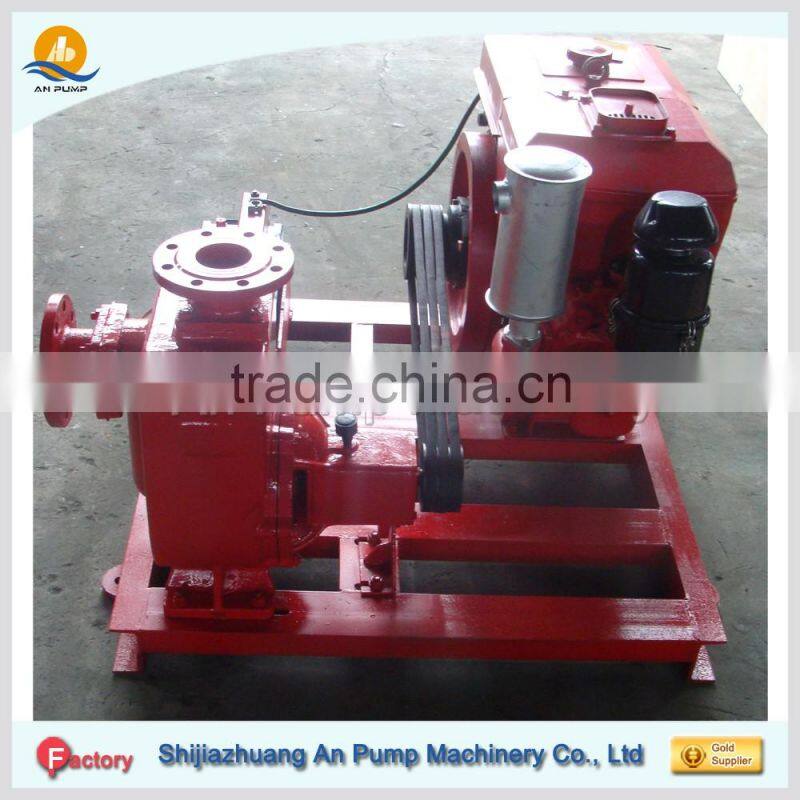

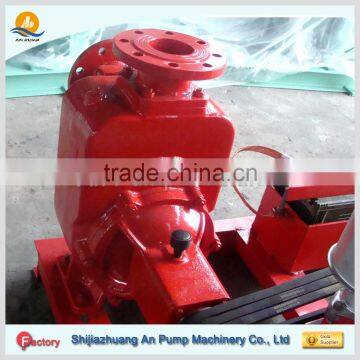

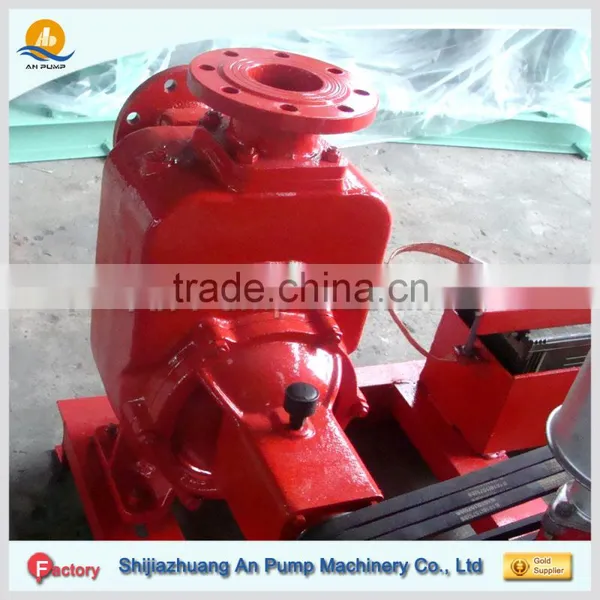

Self Priming Centrifugal Fire Sprinkler Pump
Self Priming Centrifugal Fire Sprinkler Pump Details
1. Outlet Diameter: 2''(50mm) to 12’’(300mm)
2. Flow Rates: 8m3/h~600m3/h
3. Head: 6m~63m
4. Horsepower: 1HP~125HP
5. Solid Passing: 20.63mm~76.2mm
6. Material: Cast iron, ductile iron, stainless steel, cast steel, aluminum, bronze
7. Diesel Driving: Water cooled or air cooled
8. Method of connection: Self priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted.
9. Drive Variation: Cummins, Ricardo, Perkins or Chinese Diesel, Electric Motor
10. Skid Mounted on Trailer: 2 wheels or 4 wheels trailer
11. Package: Exporting plywood case
12. Certification: ISO9001: 2000,CE
Self Priming Centrifugal Fire Sprinkler Pump Feature
QZX series self-priming pump belongs to self priming centrifugal pumps. The key advantage is that this
kind of pump have stronger self-priming capacity. It do not need bottom valve on the pipe line,but the
quantitative lead liquid must be stayed before work.The pumps simplified the system of the pipes,
and they improved the working condition.
1) Stable performance, reliable operation
2) Rapid self-priming, high suction head
3) Back-pull-out construction: convenient for maintenance and troubleshooting.
Daily maintenance can be performed rapidly by common head tools, saving time and labor
4) Semi-open impeller structure and non-clogging design. Strong passing capacity,
diameter of maximum passing solid for P-12 is 76.2mm
5) Convenient usage: the pump can be mounted high and dry at floor level, with only
the suction line down in the liquid
Self Priming Centrifugal Fire Sprinkler Pump Working Condition
Self Priming Centrifugal Fire Sprinkler Pump Structure
