Centrifugal multistage pump specification
- 8000 Set / Sets per Month
- Tianjin/Shanghai any part of China
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | QD multistage pump |
Theory: | Centrifugal Pump | Structure: | Multistage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | High Pressure | Application: | Other, customized twin impeller multistage pump |
Product Description
Centrifugal multistage pump specification
Product Description
Shijiazhuang An Pump Machinery Co.,Ltd
Specifications:
Centrifugal Multistage Boiler Water Feed Pump
1. Dischage:1''-18''
2. Head: 2500 M
3.Capacity: 11000m3/h
4.Up to 12 stage
Indroduction of our company:
Shijiazhuang An Pump Co., Ltd, the main pump products including slurry pump, desulfurization pump, gravel pump, sewage pump, impurity pump, split pump with large capacity, multistage pump with hjgh lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers
Product Description:
This serial pump is multi-stage section centrifugal pump, the excellent hydraulic models are high-efficiency, energy-saving, and have wide performance range, operating safety & steady, low noise, long life and installing & repairing is very convenient etc. It can deliver heat water, oil, corrosive or wearalbe medium by changing the material, seal or adding cooling system.
1. The multi stage pump can deliver the neuter mineral water which solid particles percent≤ 1.5%(solid Dia, < 0.5mm) and other similar sewage,
2. Temperature of the liquid is ≤ 80° C. It is suitable for steel works, mines, cities projects etc.
This kind pump can deliver the corrosive liquid without solid particle, which temperature is from -20° C-150° C
The multi stage pump deliver oil or oil products without solid grain, viscosity ≤ 120ct, range of temperature is from -20 ° C to 150 ° C
Technical Specifications
Type | QD(G) |
Capacity (m3/h) | 120-11000 |
Head (m) | 967-2500 |
Speed (r/min) | 2980-5410 |
Eff.(%) | 86-96 |
NPSHr (m) | 4.5-23.5 |
Power (kw) | 710-8000 |
Technical data:
♦ D multi impeller and centrifugal multistage pump
♦ Working Principle: Centrifugal
♦ Main applications: Water
♦ Driver: Electric Motor or Diesel Engine
♦ Max Liquid Temperature: 150°C
♦ Type of connection: Flange
♦ Casing Material: cast steel, stainless steel
♦ Impeller Material: cast steel, stainless steel
♦ Seal: mechanical seal/packing seal
♦ Flow Range: 120~1100m3/h
♦ Head: 967~2500m
Construction
The multi stage pump is consist of stator, rotator, bearing, shaft seal:
1. Stator: The main parts are suction casing, stage casing, discharge casing and diffuser. They are screw up by poles, to become a working house. It is horizontal, the discharge direction is upward; The discharge and suction direction of them are both upwards, and the suction direction is horizontal usually, also they can be made upward according to user's requirement.
2. Rotor: It is consist of shaft, impellers, balance dic and shaft sleeve etc. Shaft supplied power to impellers; The axial force is balanced by balance disc; The sleeve mounted on shaft to protect shaft.
3. Bearing parts: It is consist of bearing body, bearing and bearing cover etc. The bearing of type 85-67, 155-67, 600-60 pump is sliding bearing, lubricated by diluted oil, the other pump bearing is rolling bearing, lubricated by grease.
4. Shaft seal: It is usually adopted soft packing seal, consist of sealing house on suction casing, packing, blocking water ring, the sealing hose have some pressure water, to cool, lubricate and seal pump. The pumps usually adopt mechanical seal.
5. Drive: The pump is driven directly by motor through elastic coumpling, the rotation of pump is clockwise looking from motor to pump.
Our company also can design according to your requirement

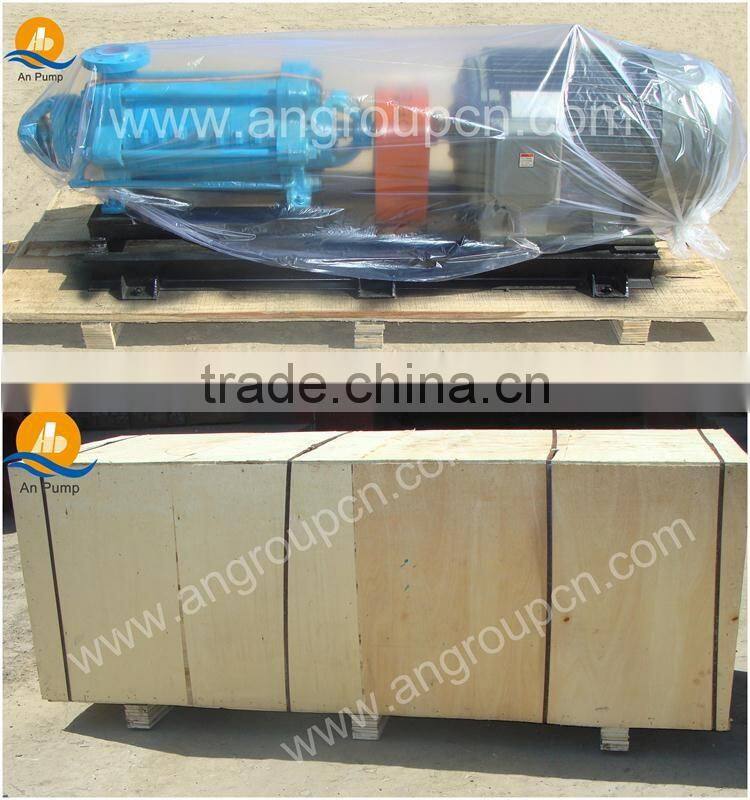

Product Show:
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly engaged in pump designing
, manufacturing, selling and service. We develop the international trading business of mining equipment, slurry pumps, and water
pumps according the wide customer resource, comprehensive technology and reasonable staffing.
An pump machinery’s main products includes: slurry pump, desulfurization pump, gravel pump, mud pump, sewage pump,
submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump, high head multistage water pump,
end suction pump, self priming pump, pump parts and ancillary equipment). which can satisfy different kinds of demands.
