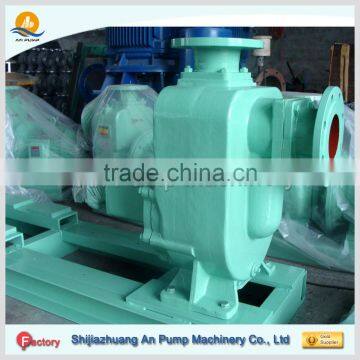

220V Auto Transfer Pump for Diesel AC self priming pump for diesel
Specification
1. Outlet Diameter: 2''(50mm) to 12’’(300mm)
2. Flow Rates: 8m3/h~600m3/h
3. Head: 6m~63m
4. Horsepower: 1HP~125HP
5. Solid Passing: 20.63mm~76.2mm
6. Material: Cast iron, ductile iron, stainless steel, cast steel, aluminum, bronze
7. Diesel Driving: Water cooled or air cooled
8. Method of connection: Self priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted.
9. Drive Variation: Cummins, Ricardo, Perkins or Chinese Diesel, Electric Motor
10. Skid Mounted on Trailer: 2 wheels or 4 wheels trailer
11. Package: Exporting plywood case
12. Certification: ISO9001: 2000,CE
Feature
QZX series self-priming pump belongs to self-priming centrifugal pumps. The key advantage is that this kind of pump
have stronger self-priming capacity. It do not need bottom valve on the pipe line, but the quantitative lead liquid must
be stayed before work.The pumps simplified the system of the pipes, and they improved the working condition
1) Stable performance, reliable operation
2) Rapid self-priming, high suction head
3) Back-pull-out construction: convenient for maintenance and troubleshooting.
Daily maintenance can be performed rapidly by common head tools, saving time and labor

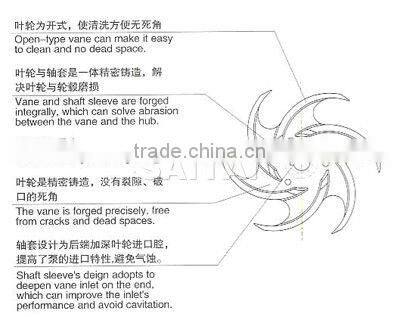

4) Semi-open impeller structure and non-clogging design. Strong passing capacity,
diameter of maximum passing solid for P-12 is 76.2mm
5) Convenient usage: the pump can be mounted high and dry at floor level, with only
the suction line down in the liquid

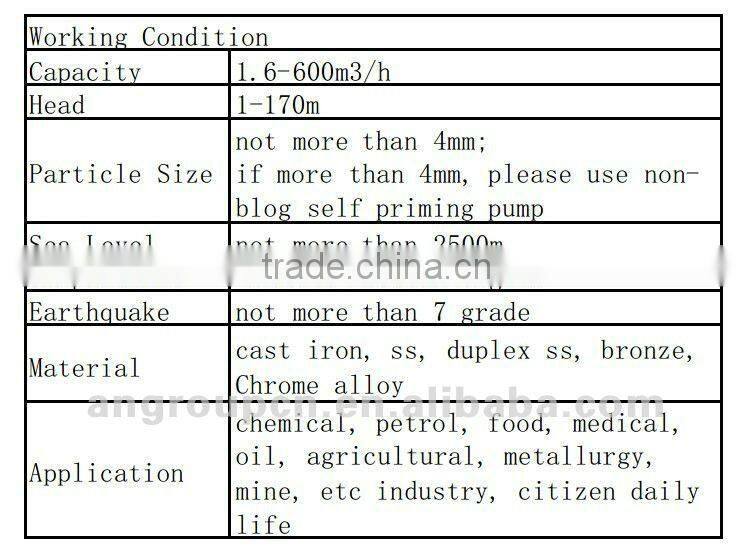

Work condition

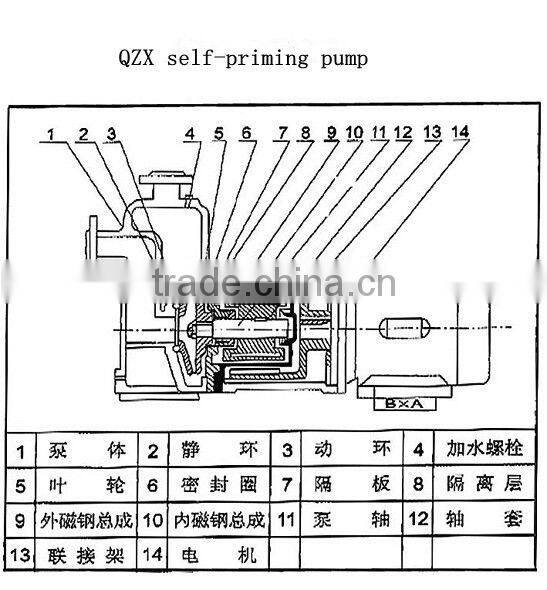

Structure

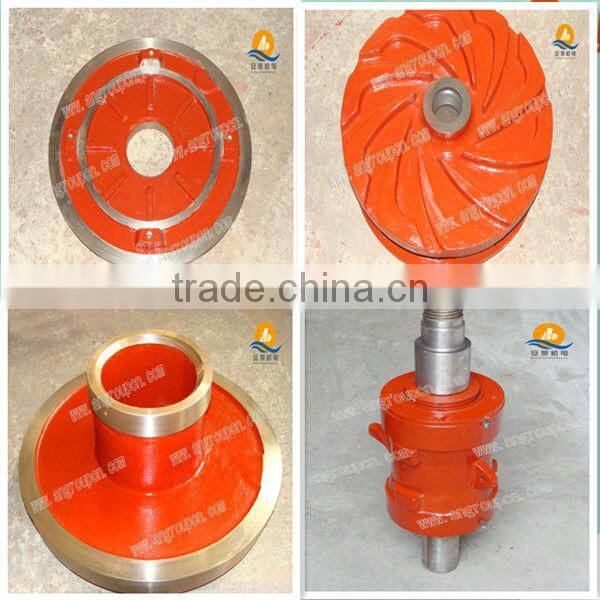

Spare pump

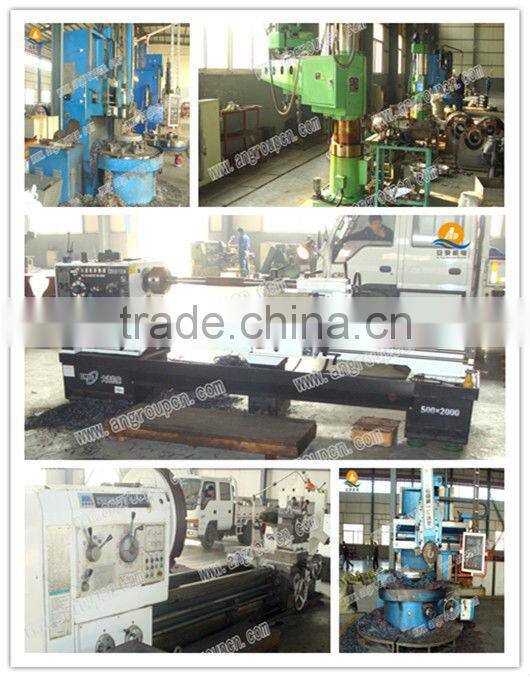

Workshop
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
Strong , experienced technical personnel is the powerful guarantee for quality products of slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps. An Pump Machinery technical team set up five R & D teams: hydraulic engineering, water pump structure, new materials research and development, casting, molding etc. Except the commonly used CAD and other design software, the technical teams also use CAPP computer-aided industrial design and CFD hydraulic design software. They combine years of experience in the practical application of the products, repeated use of water conservancy GIS, MIS software and simulation analysis system software demonstrated, calculations, the theoretical calculations product of slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps are accurate and consistent with the actual performance. It allowing users to meet the needs while significantly reducing the investment costs, improves An Pump Machinery Company's strong core competitiveness.
