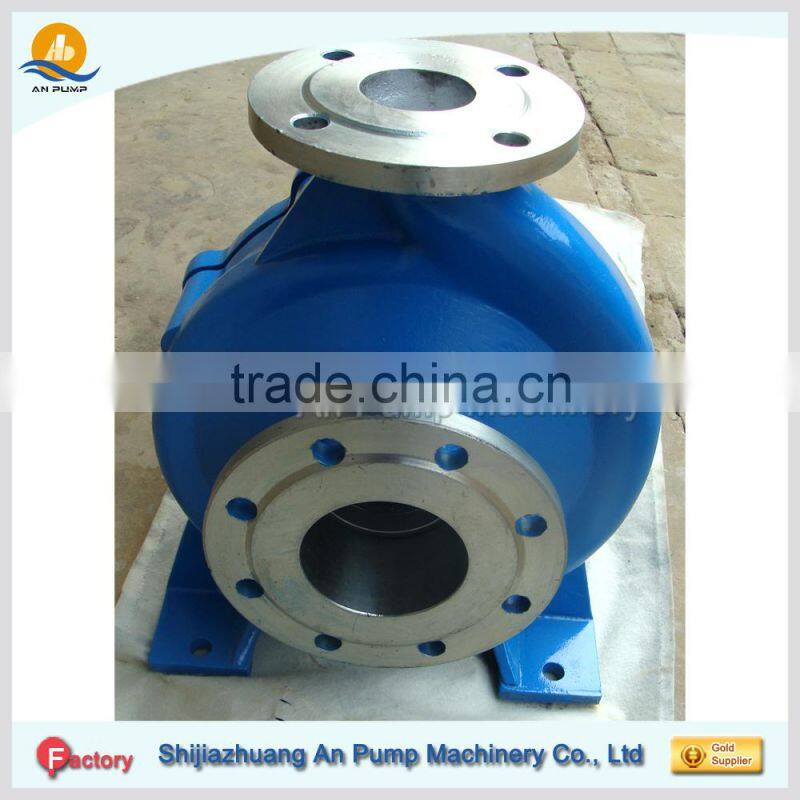

Transfer Caustic Soda Chemical Pump

Transfer Caustic Soda Chemical Pump thumbnail-1
Transfer Caustic Soda Chemical Pump photo-1
US$ 500 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
An Pump
Model Number:
QI chemical pump
Contact Supplier Request Quote Chat Now
Shijiazhuang An Pump Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Tianjin any part of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name An Pump
Model Number QI chemical pump
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Other, open impeller centrifugal chemical pump
Power Electric
Standard or Nonstandard Standard
Fuel Diesel
Pressure High Pressure
Application Other, hydrochloric acid pump, Chemical, Delivering Corrosive Liquid.

Chemical pump for Caustic soda transfer



Brief introduction of oil Pump

QI series pump is single-stage , single-suction centrifugal pump , designed as per the interational standard ISO2858 . It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°C.





Chemical pump for Caustic soda transfer Technical Data



Type

QI

Capacity (m3/h)

3.5-1200

Head (m)

3.7-128

Speed (r/min)

1450-2900

NPSHr (%)

2.0-7.5

Eff. (%)

86-95

Weight (kg)

33-1720

Dia Inlet (mm)

50-300

Dia Outlet (mm)

32-250







Chemical pump for Caustic soda transfer Applications

• Irrigation

• De-watering
• Power/cogeneration
• Desalination
• Mining
• Metal manufacturing
• Petrochemical
• General industrial utility
• Water distribution / supply / treatment







Features

Working Principle

Centrifugal

Main applications

Water, oil, chemical

Driver

Electric motor, Diesel motor

Power Specs

380/415 V 3phase;  50hz/60hz etc.

Max. permissible fluid temperature

80°C /150°C

Type of connection

Flange

Installation position

Horizontal

Casing/Inner parts material

Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze

Shaft seal type

Mechanical seal





Advantage

♦ 20 years in producing pumps

♦ Independent Design

♦ advanced technology from Australia, Canada, America

♦ OEM available

♦ Specialized Test Equipment

♦ Anti-rust treatment casting

♦ Supply reasonable suggestion for choosing pumps



Transfer Caustic Soda Chemical pumpTransfer Caustic Soda Chemical pumpTransfer Caustic Soda Chemical pump



Packaging & Shipping
  • Standard wooden cases package, if special requirements, should be inform in advance;
  • Shipping by sea, by air, by train and truck all available;
  • Delivery date: vary from 5-30days according to different model and quantity.
