>> OVERVIEW
Overview about Shijiazhuang An Pump Machinery Large Capacity Split Case Double Suction Water Pumping Machine With Price
Double Suction Split Case Motopompe Diesel Irrigation Big Water Pump is single stage double suction split casing water pump is single stage, double suction, axially spit casing centrifugal pump.
>> APPLICATION
Application of Shijiazhuang An Pump Machinery Large Capacity Split Case Double Suction Water Pumping Machine With Price
Industry |
Applications |
General water supply |
Circulation of HVAC building systems, water booster service, boiler feed, general circulation service and more . |
Agriculture/Food/Beverage |
Irrigation , water supply , food processing , beverage processing, fertilizers. |
Manufacturing |
Pulp and paper fans, plastic & rubber, metal & steel, pharmaceutical, paper mills, air wash, marine ballast service. |
Fire/Disaster Relief |
Fire pumps, fire protection, flood control, disaster relief, federal / military . |
Utilities: Water/Wastewater |
Power Generation stations, dewatering, desalination, energy recovery turbines |
Chemical/Mining |
Chemical plant, refineries, petroleum distribution, coal sites, ethylene glycol pumping. |

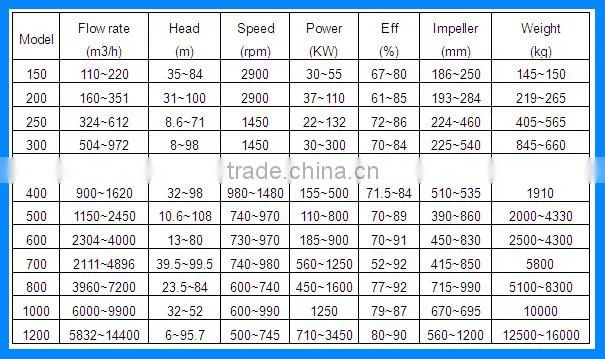

>> PERFORMANCE TABLE LIST
Performance data of Shijiazhuang An Pump Machinery Large Capacity Split Case Double Suction Water Pumping Machine With Price
>> CONSTRUCTION
Structure of Shijiazhuang An Pump Machinery Large Capacity Split Case Double Suction Water Pumping Machine With Price

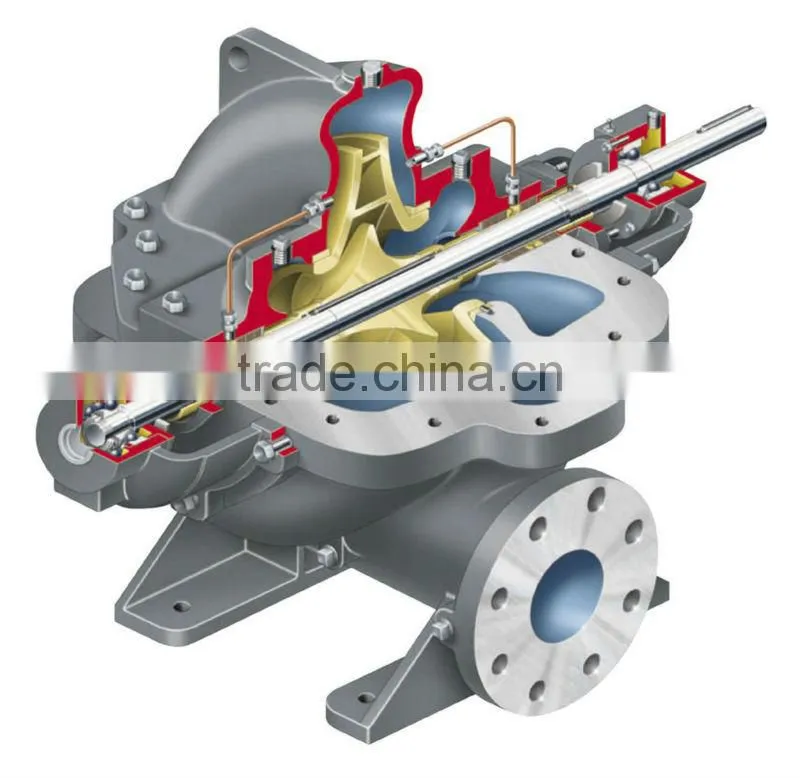

>> SECTIONAL DRAWING
Section drawn about Shijiazhuang An Pump Machinery Large Capacity Split Case Double Suction Water Pumping Machine With Price
>> FEATURES
Special feature of Shijiazhuang An Pump Machinery Large Capacity Split Case Double Suction Water Pumping Machine With Price
| Part | Feature |
| Split casing | Axially |
| Impeller | Double entry |
| Bearing | Heavy duty rotor bearing |
| Shaft seal | Gland seal and mechanical seal |
| Shaft | Heavy duty |
| Wearing ring | Easy to replace |
| Volute | Single/double volute |
| Design | Hydraulic geometry optimized |
>> MATERIAL
Materials of Shijiazhuang An Pump Machinery Large Capacity Split Case Double Suction Water Pumping Machine With Price
Packaging & Shipping
>> PACKAGING & SHIPPING
Packaging and shipping for Shijiazhuang An Pump Machinery Large Capacity Split Case Double Suction Water Pumping Machine With Price
