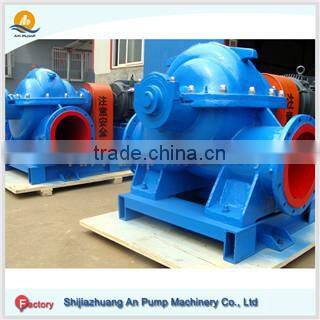

380V Large Volume Split Casing Water Irrigation
split case water pump
1.Cartridge Mechanical Seal
Cartridge style mechanical seal. and seal plate are mounted on the
shaft sleeve, as a single, cartridge style, assembly.
2. Service with ease.
The one piece cartridge assembly is easily removed for service.
The replacement assembly may be installed, just as easily, with no
special seal adjustments necessary. Standard mechanical seal is
an industry standard design, that is readily available at local seal
supply houses.
3. Greater temperature and pressure parameters.
Various types of mechanical seals and packed glands, are available
to extend the standard pressure and temperature parameters.
Horizontal Split Case, Centrifugal
Split Case pumps, single stage, double suction type, with pump characteristics which provide rising heads to shut off.
Refer to pump schedules for pump flows, heads, motor speed, enclosure, efficiency and power requirements.
Pumps shall be Series 4600 Horizontal Split Case type, each with flexible type coupling and OSHA guard and mounted, with motor,on a fabricated steel baseplate.

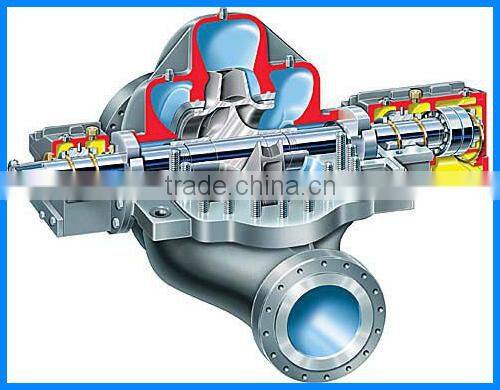

Split case water pump constructure
Power station water pump Casing
Cast iron,axially split, with 15° angle tilted parting to allow for lower NPSH requirements and to minimize pump dimensions.
Suction and discharge connections, located in the lower casing, shall be flanged and of sizes indicated in the schedule and shall bedrilled and tapped for gauge connections. Suction and discharge connections shall be on the same elevation.
The top of the casing and the rotating assembly shall be removable without disturbing the piping connections.
Wearing Rings
Pump casing shall be fitted with replaceable bronze (BS1400-LG1) wearing rings.
Impeller
Bronze, double suction, fully enclosed type. Dynamically balanced.
Shaft
Carbon steel, C1045, designed for minimum deflection and vibration.
Shaft Sleeves
Sleeves shall be stainless steel 304, and form components of the cartridge mechanical seals.
Mechanical Seals
Each seal chamber shall be fitted with a cartridge type mechanical seal.
The seal component shall be of stainless steel construction with carbon vs ceramic faces and EPDM secondary seal.
The mechanical seal, shaft sleeve and seal plate shall be easily removable as a single component.
Provide seal plates with factory installed flush lines.*
Bearings
Supply dust tight deep groove ball bearings. With permanently sealed grease type lubrication.
Bearings shall be mounted in cartridge type housings, that are replaceable without opening the pump casing.
Bearings shall be removable by simply rotating the removal nut behind the bearing. No special tools or pullers are to be necessary.
Motor
Motor Horsepower ratings shown on the schedule are minimum acceptable and have been sized for
An Pump Machinery is your Best Split Case Pump Manufacturer
continuous operation without exceeding full load nameplate rating over the entire pump curve, exclusive of motor service factor.
