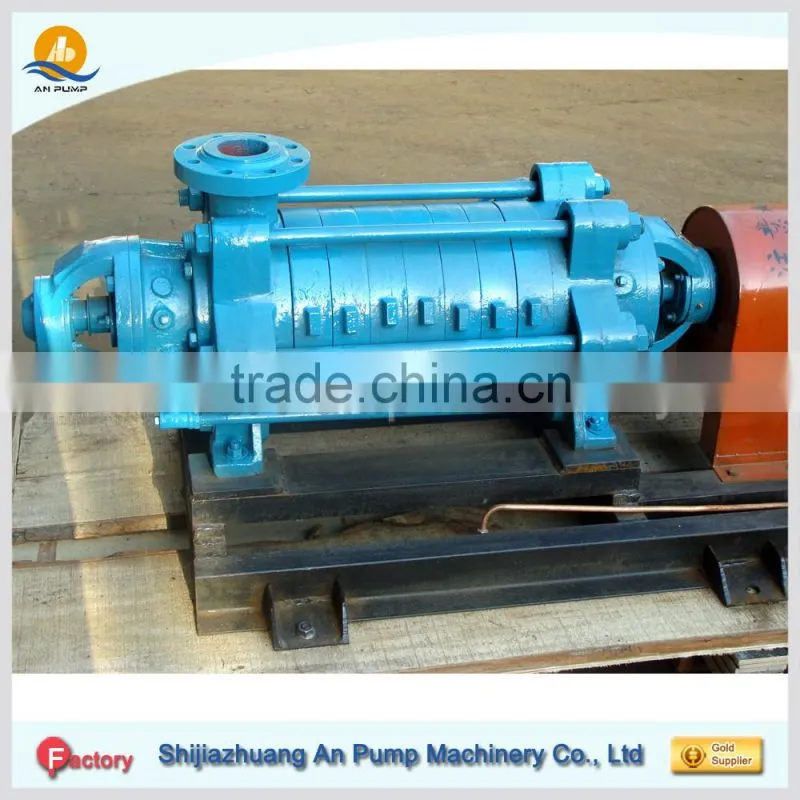

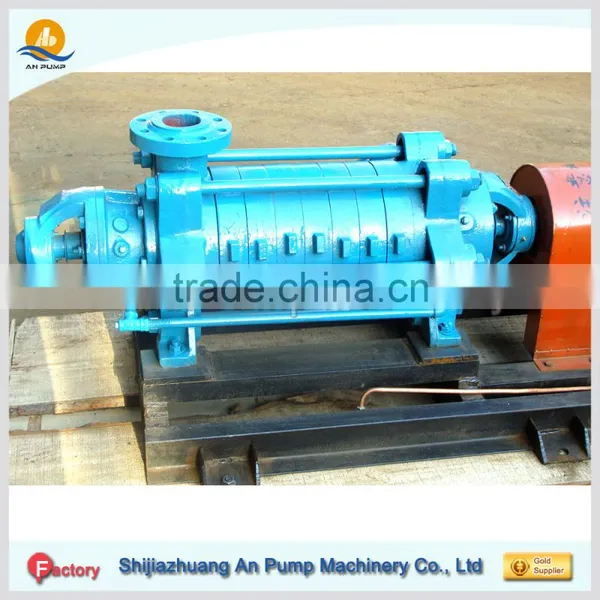

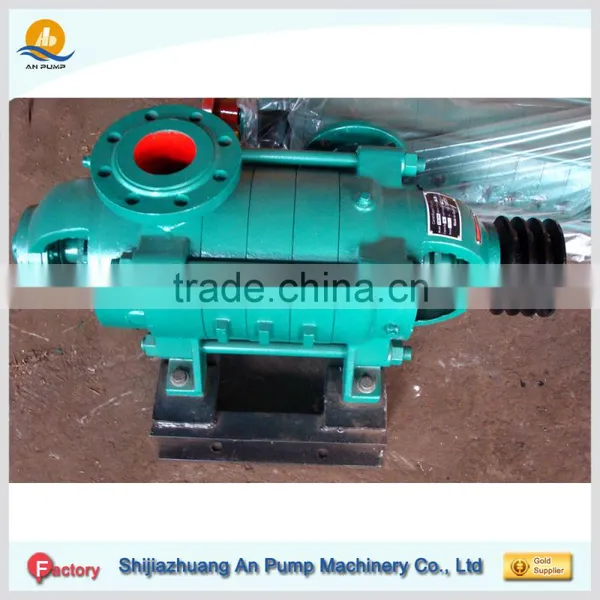

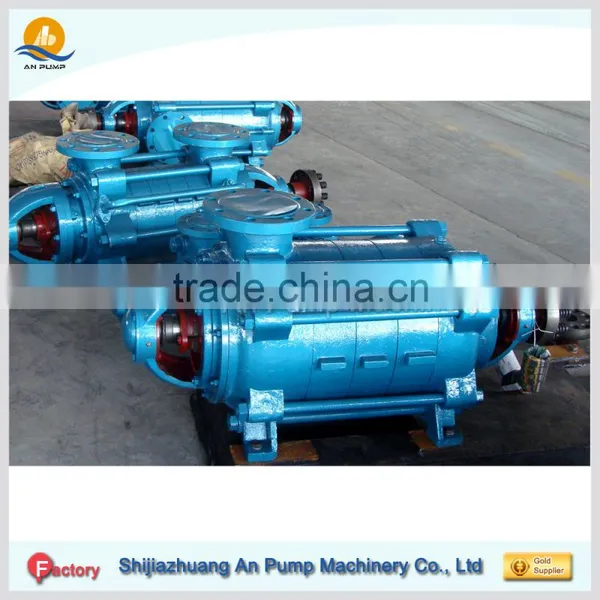

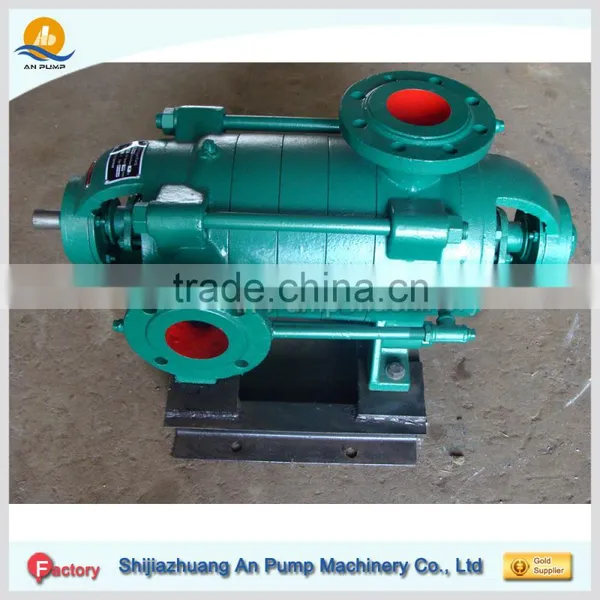

Best price multistage centrifugal water pump
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly engaged in pump designing
, manufacturing, selling and service. We develop the international trading business of mining equipment, slurry pumps, and water
pumps according the wide customer resource, comprehensive technology and reasonable staffing.
An pump machinery’s main products includes: slurry pump, desulfurization pump, gravel pump, mud pump, sewage pump,
submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump, high head multistage water pump,
end suction pump, self priming pump, pump parts and ancillary equipment). which can satisfy different kinds of demands.
What's the details of our customized twin impeller multistage pump?
QDG type pump is a multi-stage, sectional boiler feed pump, used for conveying containing no solid particles (abrasive) of water or other liquid, physical and chemical properties similar to lear water other liquid and is suitable for the low pressure boiler feed water use, also can make general multistage centrifugal pumps, the temperature of the liquid to be delivered - 20-150 degrees Celsius.
customized twin impeller multistage pump Features
| 1. Low NPSH |
| 2. Low noise |
| 3. Longer bearing life |
| 4. Non overloading power characteristics |
| 5. Can pumping liquid and gas mixtures |
| 6. Short delivery time and resonable price |

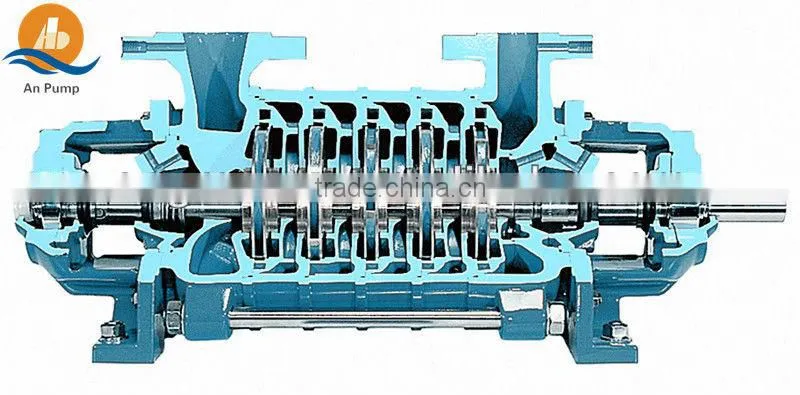

customized twin impeller multistage pump constructure
What's the Specification of our customized twin impeller multistage pump?
QD(G) Series multistage pump data | |||
Pump Type |
Flow |
Head |
Power |
(m3/h) |
(m) |
(KW) |
|
QM(G) 6-25 |
3-7.5 |
73.5-306 |
4-11 |
QM(G) 12-25 |
7.5-15 |
69-338.4 |
5.5-22 |
QM(G) 12-50 |
7.5-15 |
139.5-648 |
18.5-75 |
QM(G) 25-30 |
15-30 |
82.5-340 |
15-45 |
QM(G) 25-50 |
15-30 |
15.78-618 |
22-110 |
QM(G) 46-30 |
30-55 |
81-340 |
22-75 |
QM(G) 46-50 |
30-55 |
138-666 |
37-132 |
QM(G) 85-45 |
55-100 |
78-459 |
37-160 |
QM(G) 85-67 |
55-100 |
183-666 |
90-250 |
QM(G) 155-67 |
100-185 |
177-684 |
132-400 |
QM(G) 280-43 |
185-335 |
114-423 |
160-450 |
QM(G)280-65 |
185-355 |
372-680 |
500-800 |
QM(G)450-60 |
335-684 |
171-650 |
360-3400 |
customized twin impeller multistage pump applications
| 1. Boiler feed , marine , refrigeration , fue oil . |
| 2. Power plant |
| 3. Water supply to multi storied building, such as municipal , hospital , hotel ect . |
| 4. Irrigation |
| 5. Fire fighting |
| 6. Industrial clear water |
Why Customers choose us:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
24x7 service for your price of customized twin impeller multistage pump:
