Horizontal Cantilever Stainless Steel Chemical Process Centrifugal Water Pump

FOB Price

USD $500 - $6,000 / Set

1 Set(Min.Order)

Supply Ability 8000 Set / Sets per Month
Port Shanghai/Tianjin any part of China
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	An Pump
Model Number	QI chemical pump	Theory	Centrifugal Pump
Structure	Single-stage Pump	Usage	Other, open impeller centrifugal chemical pump
Power	Electric	Standard or Nonstandard	Standard
Fuel	Diesel	Pressure	High Pressure
Application	Other, hydrochloric acid pump, Chemical, Delivering Corrosive Liquid.

Product Description

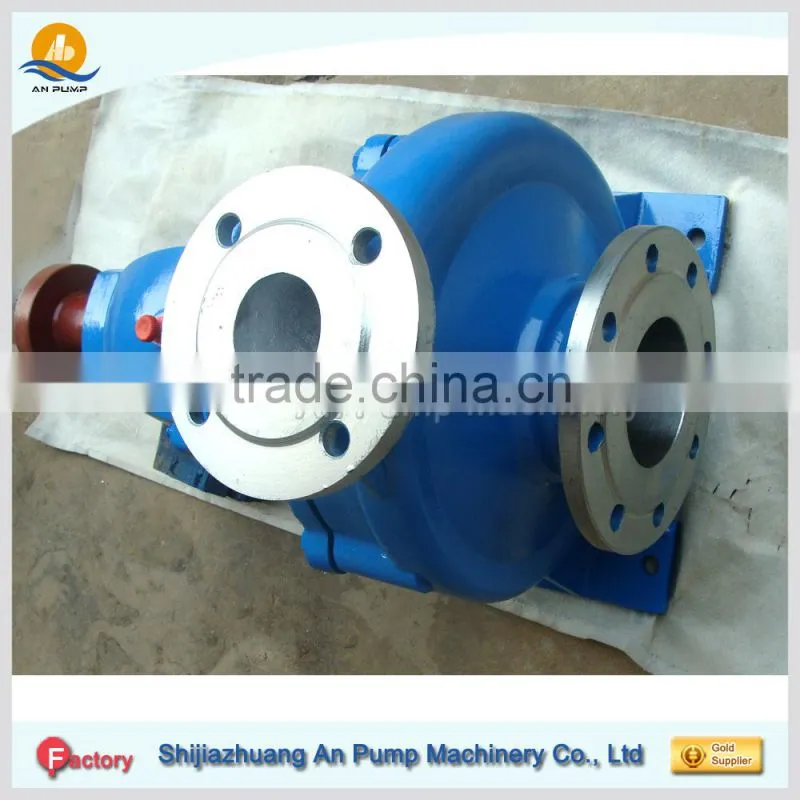

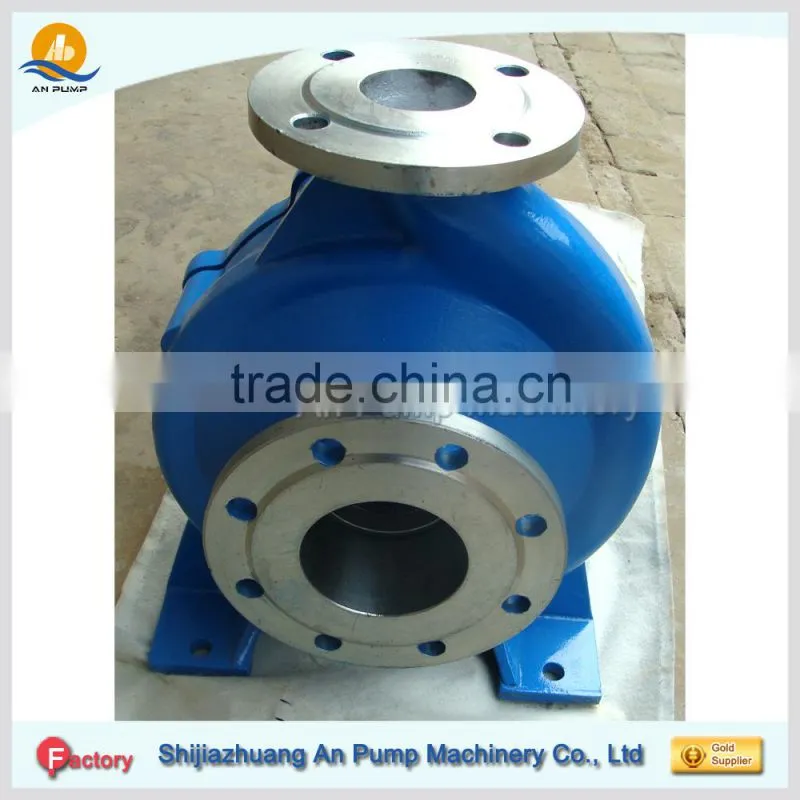

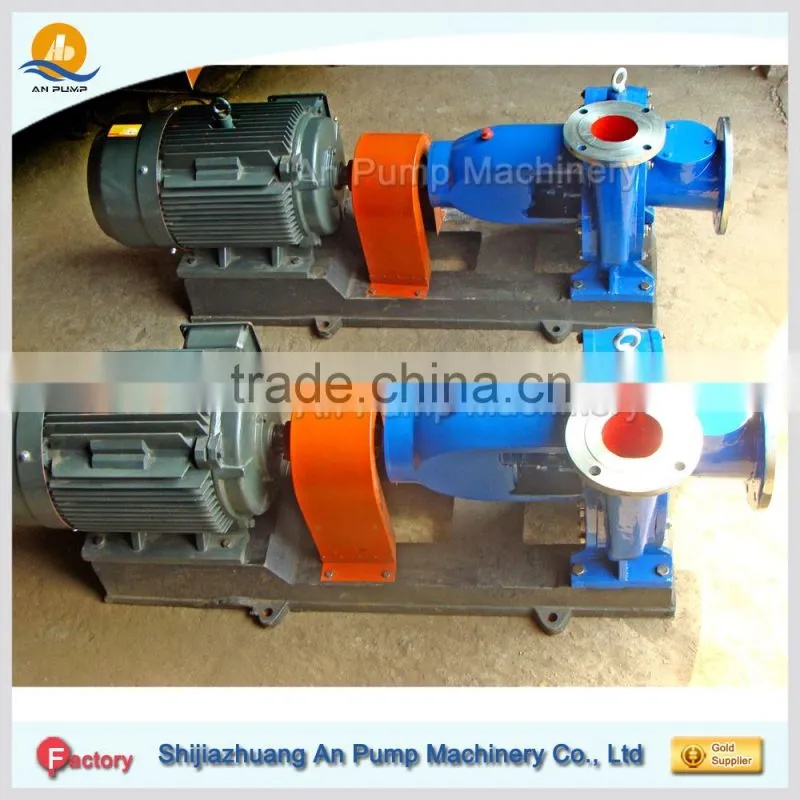

Horizontal Cantilever Stainless Steel Chemical Process Centrifugal Water Pump

Brief introduction of oil Pump

QI series pump is single-stage , single-suction centrifugal pump , designed as per the interational standard ISO2858 . It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°C.

Chemical pump for Caustic soda transfer Technical Data

Type	QI
Capacity (m3/h)	3.5-1200
Head (m)	3.7-128
Speed (r/min)	1450-2900
NPSHr (%)	2.0-7.5
Eff. (%)	86-95
Weight (kg)	33-1720
Dia Inlet (mm)	50-300
Dia Outlet (mm)	32-250

Chemical pump for Caustic soda transfer Applications

• Irrigation

• De-watering
• Power/cogeneration
• Desalination
• Mining
• Metal manufacturing
• Petrochemical
• General industrial utility
• Water distribution / supply / treatment

Features

Working Principle	Centrifugal
Main applications	Water, oil, chemical
Driver	Electric motor, Diesel motor
Power Specs	380/415 V 3phase; 50hz/60hz etc.
Max. permissible fluid temperature	80°C /150°C
Type of connection	Flange
Installation position	Horizontal
Casing/Inner parts material	Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze
Shaft seal type	Mechanical seal

Advantage

♦ 20 years in producing pumps

♦ Independent Design

♦ advanced technology from Australia, Canada, America

♦ OEM available

♦ Specialized Test Equipment

♦ Anti-rust treatment casting

♦ Supply reasonable suggestion for choosing pumps

Packaging & Shipping

Standard wooden cases package, if special requirements, should be inform in advance;
Shipping by sea, by air, by train and truck all available;
Delivery date: vary from 5-30days according to different model and quantity.
