horizontal multistage pump for steam boiler water feeding
General of horizontal multistage pump for steam boiler water feeding
QD (G) type high head sea water pump is a horizontal multi-stage centrifugal pump and suitable for transporting sea water (with the contained foreign matters' content less than l % and graininess less than 0. 1mm) and other liquids of both physical and chemical natures similar those of pure water.
QD(G) type high head sea water pump is used for pumping all kinds of sea water,corrosive sea water,rainwater and mariculture department etc.
Operating Range of horizontal multistage pump for steam boiler water feeding
Capacity |
1,100 m3/h ( 4,843 U.S. GPM ) |
Head |
2,500 m ( 8200 feet ) |
Temperature |
20°C to 150°C ( -4F to 302F ) |
No. Of stage |
2 to 12 stages |
Speed |
960 / 1450 / 2900 rpm |
Dia of solid |
0.5mm Max. |

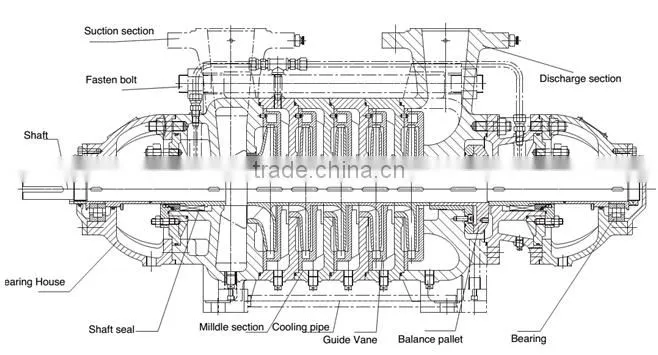

Construction Options of horizontal multistage pump for steam boiler water feeding
Impeller: it is a core part of multistage pump, we offered with closed impeller, smooth inner and outer surface help to reduce he flow friction loss, and play crucial roles in pumping water at very high pressure.
Casing: it is a body of multistage water pump, to play a role of supporting & fastening, and connected to the bracket whitch mounting the bearing.
Pump Shaft: It is the main components of the mechanical energy transfer.
Shaft Bearing: it is a component to support the shaft, there are two kinds of rolling bearing and Sliding bearings. Rolling
bearing use butter as a lubricant oil, Sliding bearings using a transparent oil as a lubricant.
Sealing ring: use to increase the resistance of back-flow, and reduce internal leakageAlso known as leakage reduction ring, by this way, it is helpful for Increase the service life of the impeller and casing.
Stuffing Box: Composed of packing, seal loop, packing tube, packing gland, seal tube. Keep pump in vacuum state when working.
Standard wooden cases package, if special requirements, should be inform in advance
Shipping by sea, by air, by train and truck all available
Delivery date: vary from 5-30days according to different model and quantity.
- 1 year guarantee of whole machine set, except the flow parts
- 24hours *7 days service is available
- Calling or door to door service
- User manual and maintenance instruction is available
