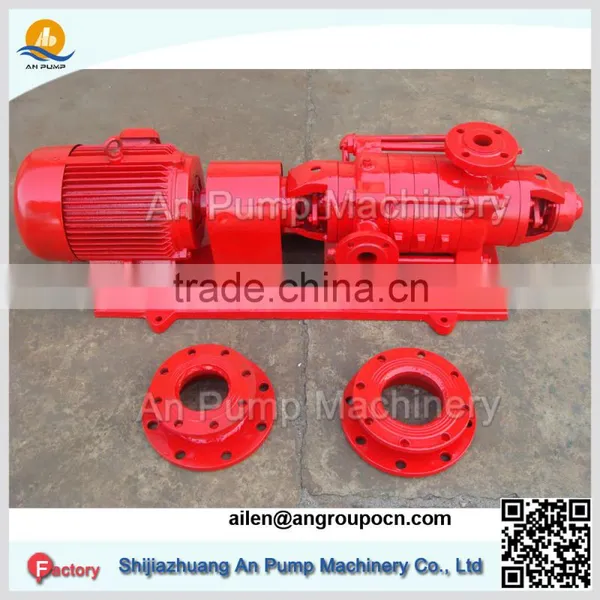

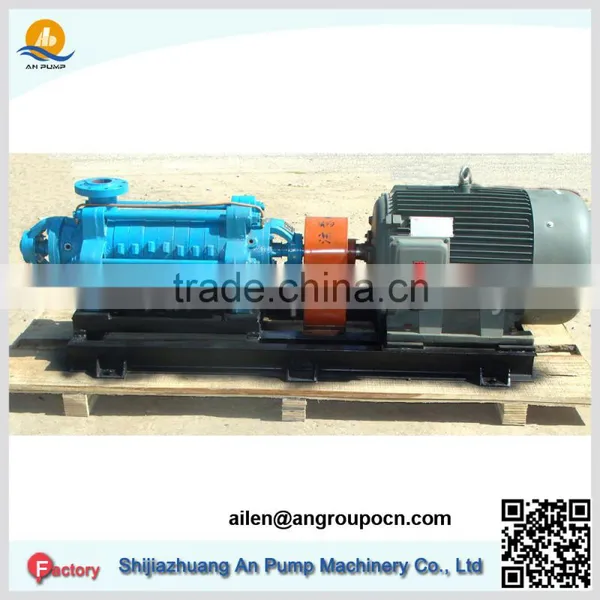

High Pressure Booster Multistage High Lift Fire Sprinkler Centrifugal Pump

ææææ OVERVIEW ææææ

Summerize of High Pressure Booster Multistage High Lift Fire Sprinkler Centrifugal Pump

Model QD (G) pump is a horizontal multi-stage centrifugal pump and suitable for transporting pure water (with the contained foreign matters' content less than l % and graininess less than 0. 1mm) and other liquids of both physical and chemical natures similar to those of pure water.

ææææ PERFOMRANCE ææææ

Performance of High Pressure Booster Multistage High Lift Fire Sprinkler Centrifugal Pump

QD (G) model middle and low pressure boiler water supply pump is applicable to transport medium with temperature of not higher than 105℃, and is also applicable for small boiler water supply or transporting medium similar to hotwater.

ææææ PERFORMANCE RANGE ææææ

Performance range of High Pressure Booster Multistage High Lift Fire Sprinkler Centrifugal Pump

Flow : 3.75-1 8 5 m3/h

Corollary power: 4.0-400kW

Head: 69-684m

Inlet diameter: 40-150mm

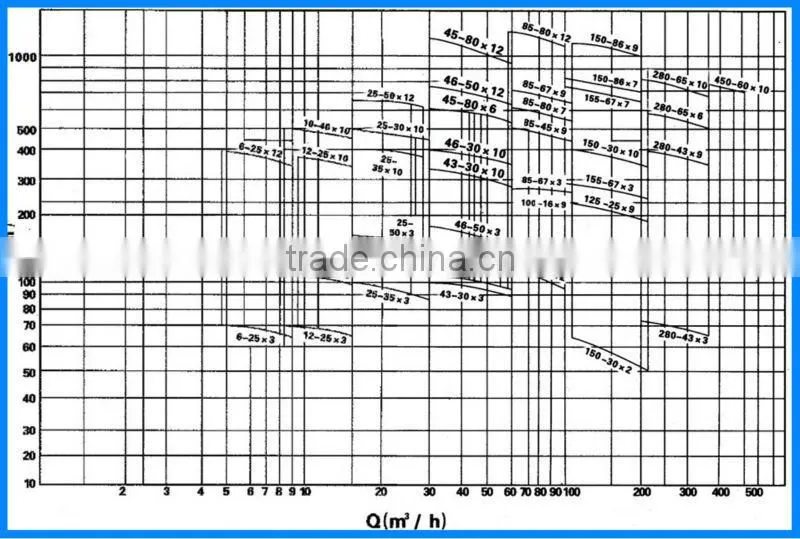

ææææ CURVE CHART ææææ

Curve chart about High Pressure Booster Multistage High Lift Fire Sprinkler Centrifugal Pump

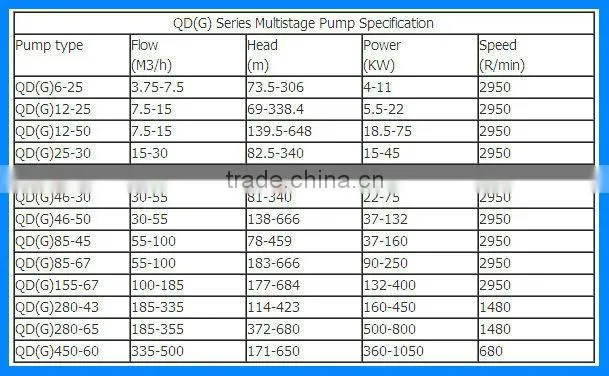

ææææ PERFORMANCE TABLE LIST ææææ

Performance table list about High Pressure Booster Multistage High Lift Fire Sprinkler Centrifugal Pump

ææææ CONSTRUCTION FEATURE ææææ

Construction features about High Pressure Booster Multistage High Lift Fire Sprinkler Centrifugal Pump

1.Multistage pump compact structure, small size, beautiful appearance, its vertical structure decided small installation area, its centre of gravity overlap center of pump foot, thus enhancing the running stability and service life of the pump.

2. The multistage pump can meet different requirements by increasing or decreasing the pump stages combining cutting impeller diameter, without changing the installation area, and this is the multistage pump special own.

3. Pump rotor is provided with low windability to achieve smooth operation, littlevibration, low noise and long service life .

4. According to the needs, the suction and discharge nozzles can be installed into the same direction, several different directions in order to meet different connection.

5. Motor plus outer rain cover, pump can be placed in the outdoor use, cancel the pump room, save construction cost.

ææææ APPLICATION ææææ

Application about High Pressure Booster Multistage High Lift Fire Sprinkler Centrifugal Pump

Multistage centrifugal pump application scope is widespread, such as medicine, food, chemical industry, irrigation, pressurization, distillation, brewing, fire control, water supply, sewage treatment, electrical and mechanical, printing and dyeing industry, seawater desalination, ship equipment and supporting pressure tank and all walks of life, wide range of uses.

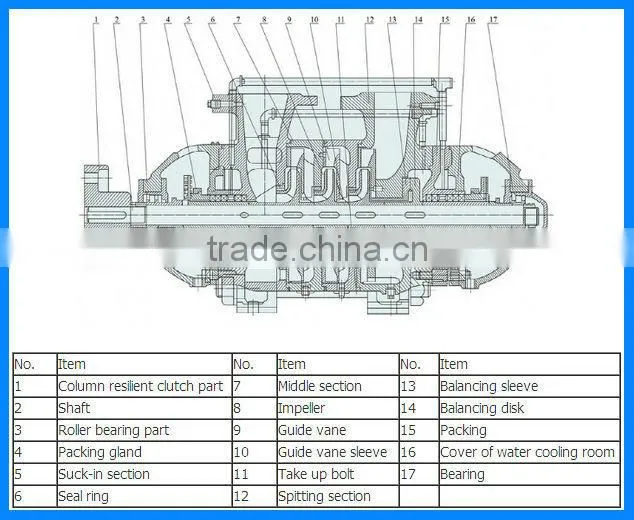

ææææ CONSTRUCTION ææææ

Structure for High Pressure Booster Multistage High Lift Fire Sprinkler Centrifugal Pump

QD(G) MODEL STRUCTURE DRAWING AND LOW PRESSURE BOILER WATER SUPPLY PUMP

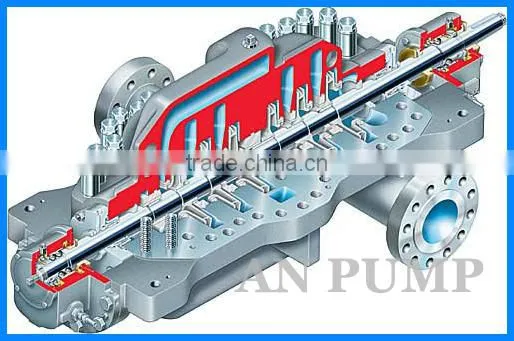

ææææ SECTIONAL DRAWING ææææ

Sectional drawing about High Pressure Booster Multistage High Lift Fire Sprinkler Centrifugal Pump

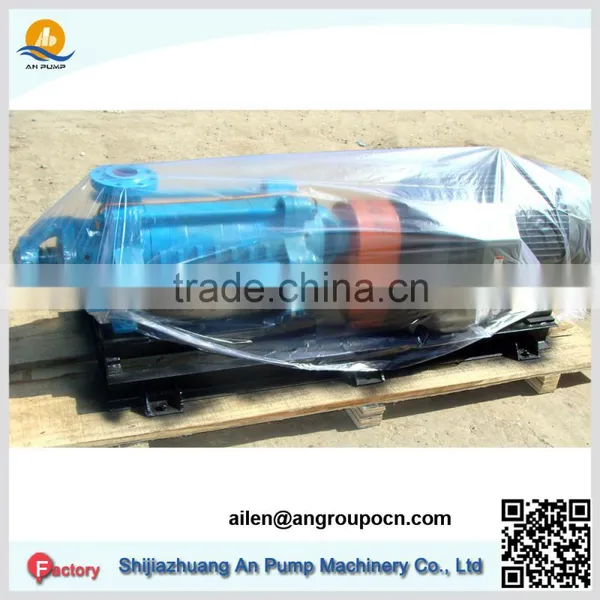

ææææ PACKING & SHIPPING ææææ

Packaging and shipping about High Pressure Booster Multistage High Lift Fire Sprinkler Centrifugal Pump

ææææ OUR SERVICES ææææ

Our services about High Pressure Booster Multistage High Lift Fire Sprinkler Centrifugal Pump

Offer pump solution, design, manufacturing, and after-sales service.

ææææ CERTIFICATIONS ææææ

Certification for High Pressure Booster Multistage High Lift Fire Sprinkler Centrifugal Pump

ææææ CONTACT US ææææ

Contact AN PUMP for High Pressure Booster Multistage High Lift Fire Sprinkler Centrifugal Pump
