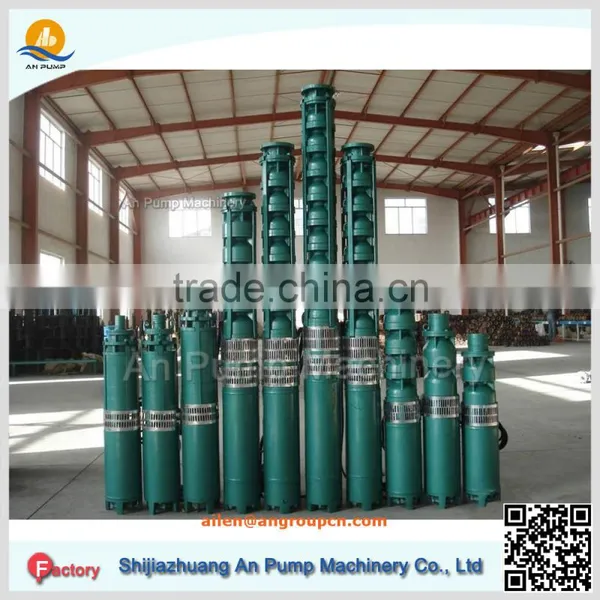

Agriculture Irrigation Borehole Pumps Submersible Deep Well Water Pump
××××××× SPECIFICATION ×××××××
Specific about Agriculture Irrigation Borehole Pumps Submersible Deep Well Water Pump
Bore Well Submersible Pumps are built with different materials of construction together with extremely hard wearing bushes, which makes this pump highly durable, which are precisely designed by our highly experienced team of engineers using the advanced technology system to meet the international quality standard.
××××××× OVEVERVIEW ×××××××
Overview about Agriculture Irrigation Borehole Pumps Submersible Deep Well Water Pump
1.Filled water into motor cavity, tighten and pouring water, vent plug, otherwise it can’t be used.
2.In the electric condition, on land, the Commissioning time(pilot running) time can’t be more than 1 seconds.
3.The electric submersible pump can’t be used when lying or tilt.
4.The pump must be completely submerged into water, but the submerged depth no more than 70 m
5. Wire and cable connection should be operated as rules (the following)
××××××× APPLICATION ×××××××
Application of Agriculture Irrigation Borehole Pumps Submersible Deep Well Water Pump
1. Deliver deep well water
2. Irrigation
3. Drink for life
4. Wast water dewatering

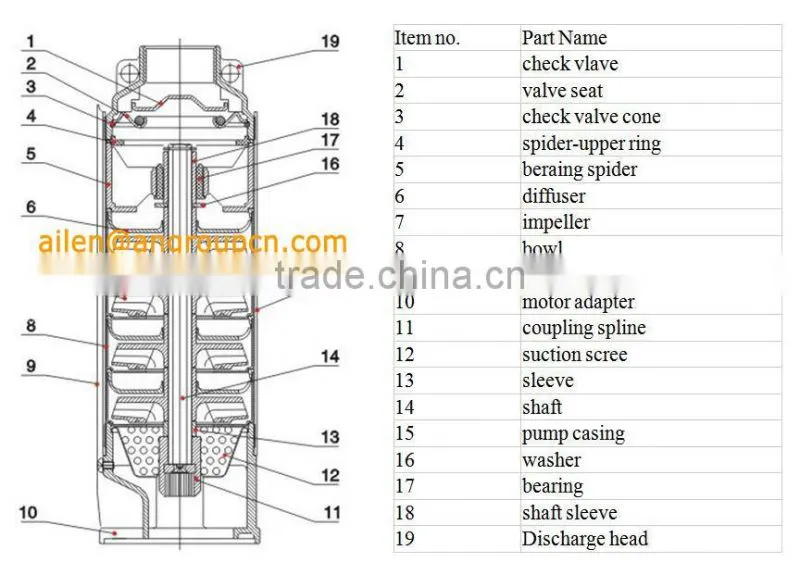

××××××× CONSTRUCTION ×××××××
Application of Agriculture Irrigation Borehole Pumps Submersible Deep Well Water Pump
ASJ series deep well submersible pump is well directly connecting with diving asynchronous motor, assembles into submersible pumps. It is drive into the well, to extract the effective implement of geothermal water. 1. Using water lubricated bearings; coupling rigidly coupled to the coupling of the motor use.
2. It works in a motor driven pump impeller rotating centrifugal force, the liquid energy increases, the diversion effect of the pump casing, liquid water pumping.
3. When the deep well pump in the pump top with a check valve to prevent the pump shutdown, Yang who is back in the water, and damage the working parts, affecting the life of the pump.
4. Scuppers while the design of the valve, you can let go of the line of water slowly to prevent winter frost crack pipe.
5. Motor is sealed water-filled motor. Full of water inside the motor for cooling the motor and lubricating the bearings.
6. Upper end of the shaft of the motor is equipped with sand bodies that can effectively prevent water and sediment into the body inside, in order to ensure the use of effects and life of the motor.
7. The main role of the pipe section is coupled pump, lifting it in wells while delivering water to the ground up. Mainly by short pipes, pipe, plywood and other components.
8. Short output tube is connected to water pipes and pumps transition member of.
9. Elbow installed in the wellhead to change the transfer direction of water flow. Plywood is lifting the pump during installation and fixed output line.
××××××× FEATURES ×××××××
Feature about Agriculture Irrigation Borehole Pumps Submersible Deep Well Water Pump
| The optimal design of impellers and diffusers offers best possible hydraulic efficiency. |
| These pumps are powered by water filled, rewindable submersible motor suitable for continues duty. |
| The pump stator is wound with special water proof synthetic film insulated copper winding wires and made up of low watt loss steel lamination assembled under pressure and rigidly locked in stator shell. |
Specially designed high performance thrust bearings (s.s with carbon) are used to withstand axial and down thrust loads with minimum wear and tear. |
| Dynamically balanced rotor gives vibration free and noise free operation, thereby increases efficiency and life cycle of the motor. |
××××××× PACKAGING & SHIPPING ×××××××
Packaging about Agriculture Irrigation Borehole Pumps Submersible Deep Well Water Pump
Shipping about Agriculture Irrigation Borehole Pumps Submersible Deep Well Water Pump
××××××× ABOUT US ×××××××

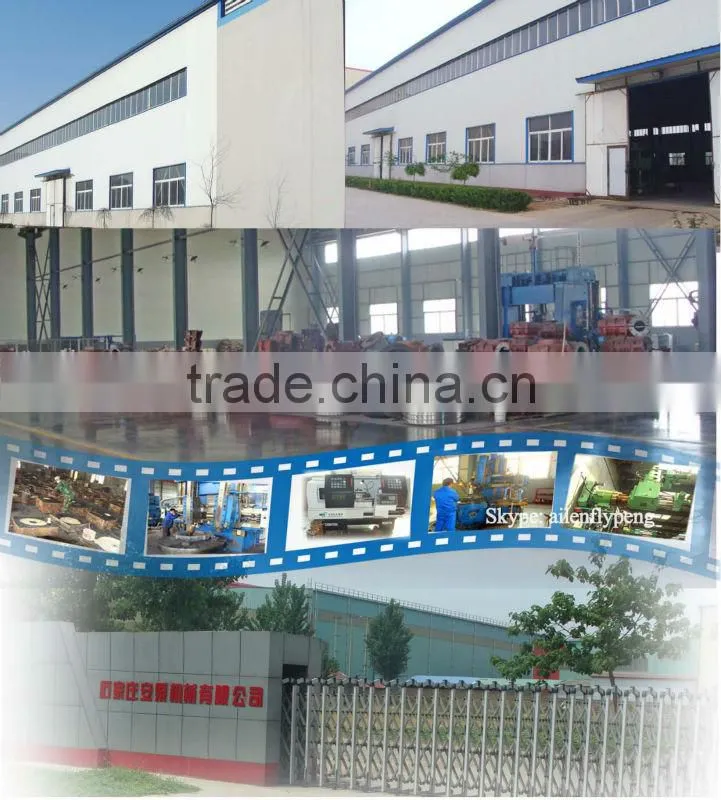

Shijiazhuang an pump machinery is the manufacturer of Agriculture Irrigation Borehole Pumps Submersible Deep Well Water Pump
××××××× FAQ ×××××××
1. Q: Are you a factory or trading company?
A: We are the manufacturer, we have designing, manufacturing, sales department, for manufacturing department, we opened casting, machinery, assembly, quality control and testing workshops. You are welcomed to come and visit our factory.
2. Q: Could you please introduce the travel line to your FACTORY?
A: Yes, Line 1: Please first fly to Beijing international airport, and we will waiting you in the airport.
Line 2: If you are fly to Shanghai, then please take a Fast train to Shijiazhuang Station. Then we will meet you there.
Or connect with Ailen Peng (ailen(a) or call86-15203116877) to confirm please.
3. Q: Is it available for OEM service?
A: Yes, it is no problem. We can accept OEM(original equipment manufacturer), processing with supplied drawings, materials, or samples.
4 Q: Is there any after-sales service?
A: Yes, we can arrange our engineer to go to your application site for assembly or maintenance. PLEASE CHECK BELOW OUR AFTER-SALES SERVICE DETAILS
5 Q: Will have operation manual when shipping the products?
A: Yes, we will send you the operation manual together with the products.
××××××× OUR SERVICE ×××××××
××××××× OUR HISTORY ×××××××
××××××× QC ×××××××
Quality control about Agriculture Irrigation Borehole Pumps Submersible Deep Well Water Pump
××××××× CONTACT US ×××××××
Contact AN PUMP about Agriculture Irrigation Borehole Pumps Submersible Deep Well Water Pump
