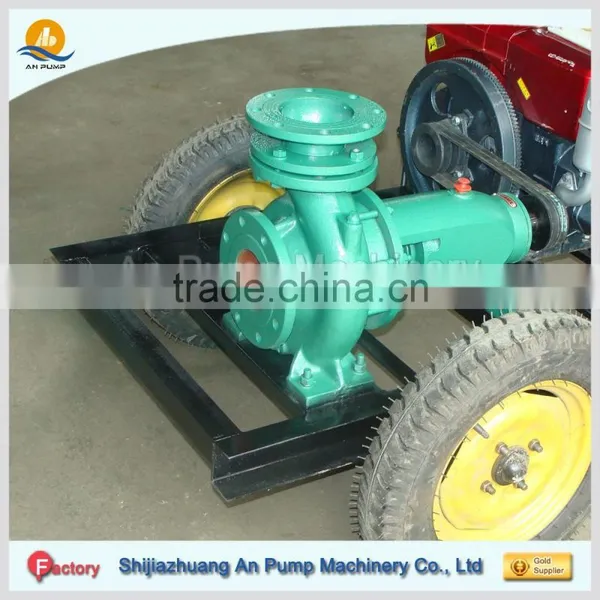

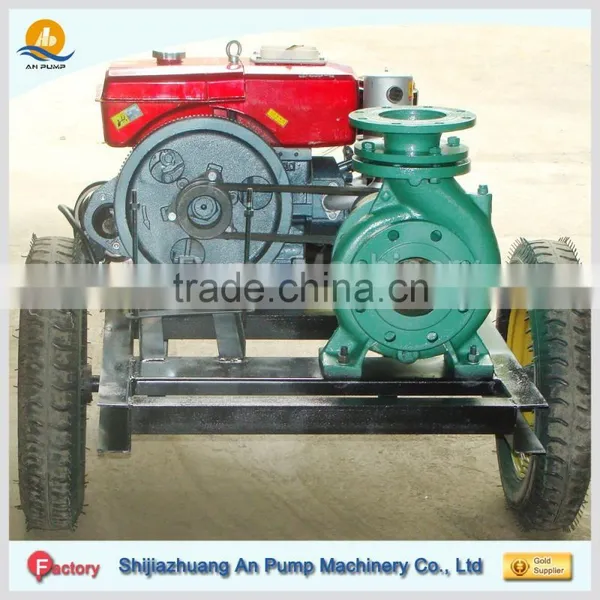

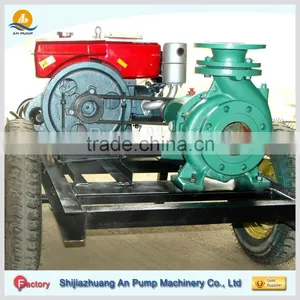

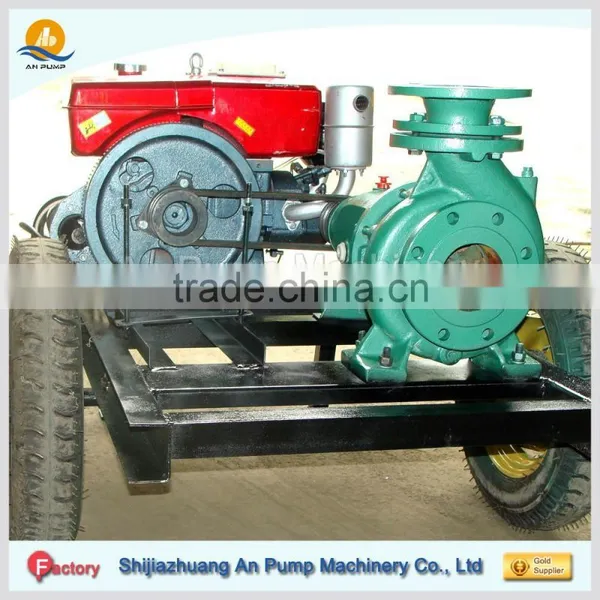

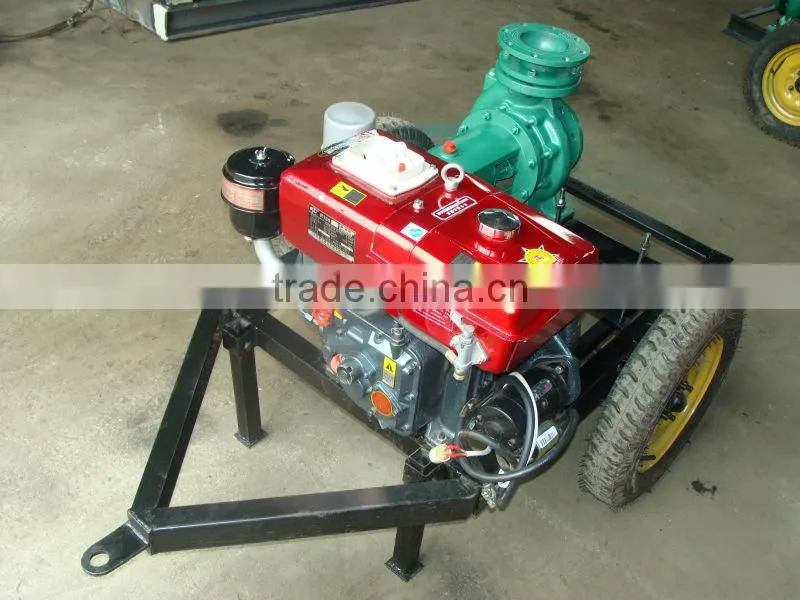

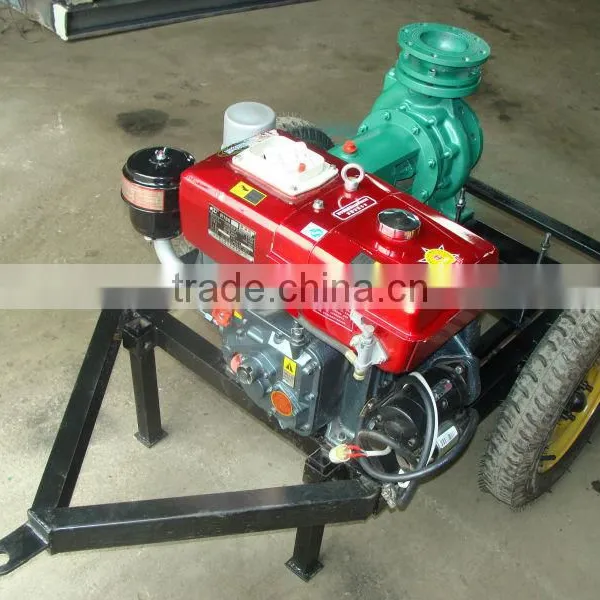

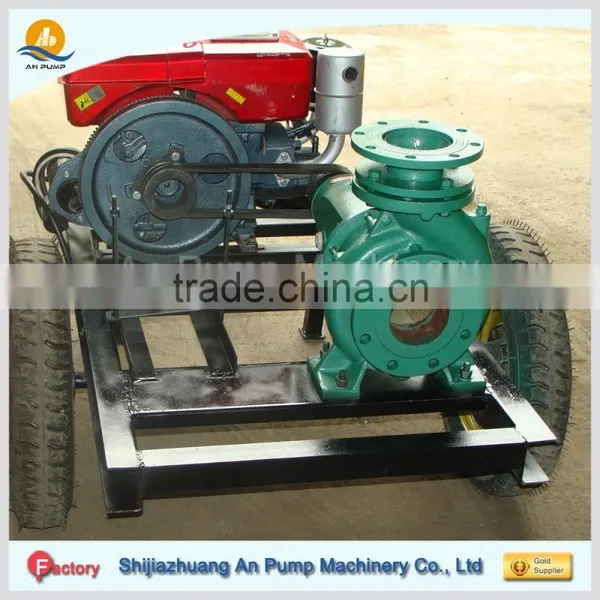

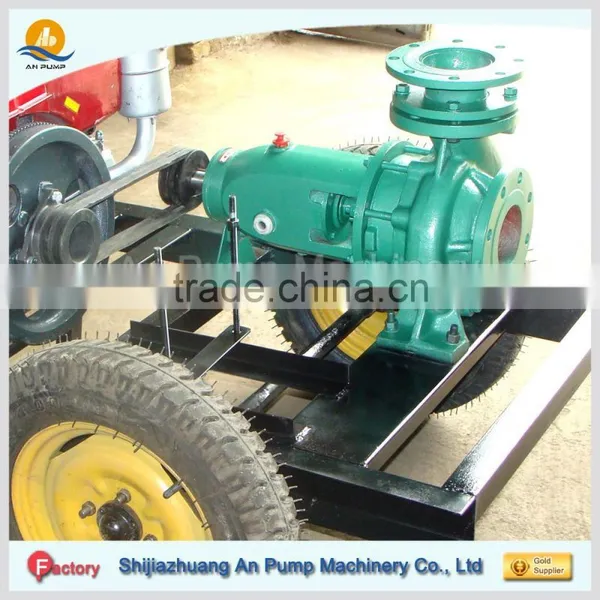

Agricultural portable irrigation diesel water pump
Introduction of agricultural irrigation diesel water pump
QI, QIR series single stage single suction centrifugal water pumps(end suction pump): Single stage single suction centrifugal water pumps are used for pure water or liquids similar to water or chemical acid liquor and oil with temperature not exceed 80℃, 150℃ for QIR series. They are widely used in all kinds of industry: air conditioning chilled water and cooling water circulation, hot water and cold water recycling plant, city water supply and drainage, irrigation, fire fighting, sea water transportation, construction, water conservancy facilities etc. The material can be changed to stainless steel material such as SS316, SS304 for corrosion acid liquor, ZG500 or QT500 for oil. Motor and diesel engine drive are both available.
1) Easy installation and move, open back structure makes it easy to take out the rotor;
2) Discharge on top center, pump body support by anchor assure the stable structure and maximum resistance off-center and distortion caused by line load;
3) No overload design, make sure performance operate stably;
4) Adopt national standard hydraulic model make sure high operation efficiency and good anti-cavitation performance;
Packing seal and mechanical seal are available.
Technical Datas of agricultural irrigation diesel water pump
Type |
QI |
Capacity (m3/h) |
3.5-1200 |
Head (m) |
3.7-128 |
Speed (r/min) |
1450-2900 |
NPSHr (%) |
2.0-7.5 |
Eff. (%) |
86-95 |
Weight (kg) |
33-1720 |
Dia Inlet (mm) |
50-300 |
Dia Outlet (mm) |
32-250 |
Agricultural irrigation diesel water pump Applications
Agricultural water supply
Irrigation water supply
River irrigation water supply
Tank irrigation water supply
Rice irrigation
Corn irrigation
Fruit irrigation
Flower irrigation
Farming irrigation
Other applications
used in chemical, oil, petrochemical industry, metallurgy, light industry, printing dyeing, pharmaceutics, environment protect, seawater desalt, paper making, food and etc .industrial departments to transport corrosive medium without suspended grain or medium.
Agricultural irrigation diesel water pump Features
Working Principle |
Centrifugal |
Main applications |
Water |
Driver |
Electric motor, Diesel motor |
Power Specs |
380/415 V 3phase; 50hz/60hz etc. |
Max. permissible fluid temperature |
80°C /150°C |
Type of connection |
Flange |
Installation position |
Horizontal |
Casing/Inner parts material |
Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
Shaft seal type |
Mechanical seal |
Advantages
♦ 20 years in producing pumps
♦ Independent Design
♦ advanced technology from Australia, Canada, America
♦ OEM available
♦ Specialized Test Equipment
♦ Anti-rust treatment casting
♦ Supply reasonable suggestion for choosing pumps
- Standard wooden cases package, if special requirements, should be inform in advance;
- Shipping by sea, by air, by train and truck all available;
- Delivery date: vary from 5-30days according to different model and quantity.
- 1 year guarantee of whole machine set, except the flow parts
- 24hours *7 days service is available
- Calling or door to door service
- User manual and maintenance instruction is available
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
