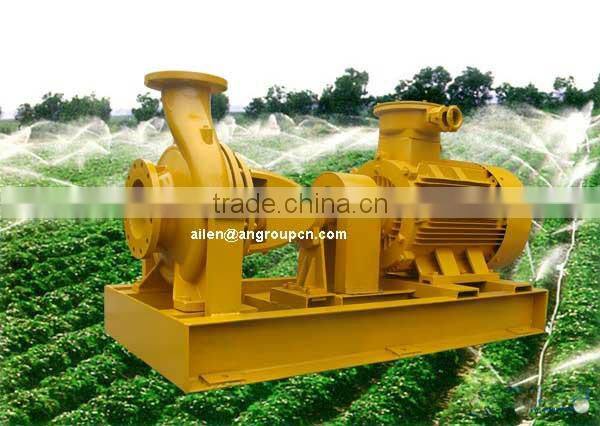

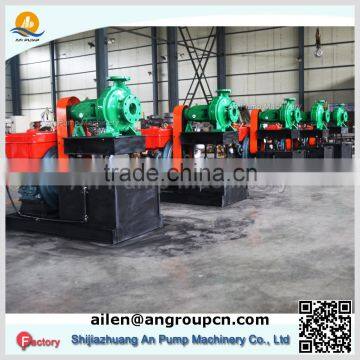

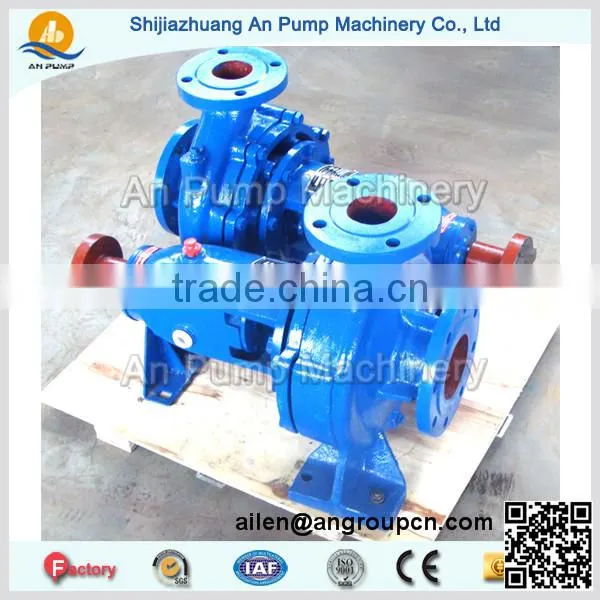

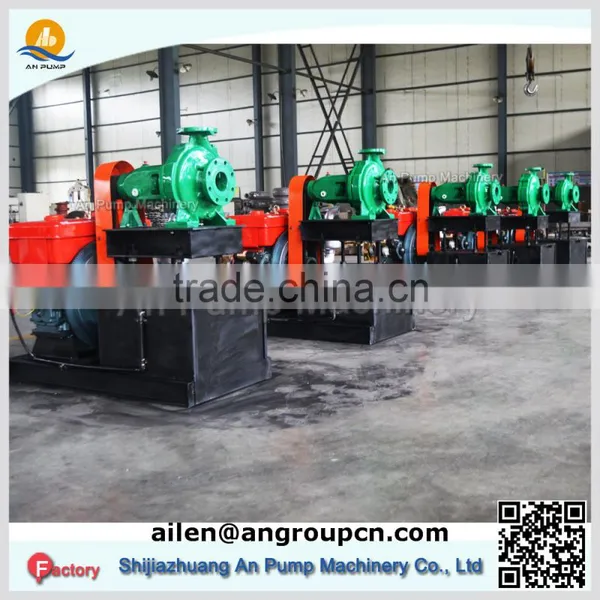

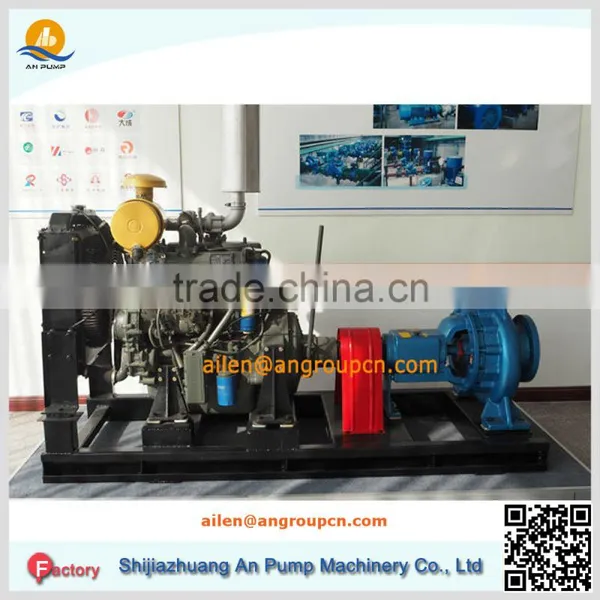

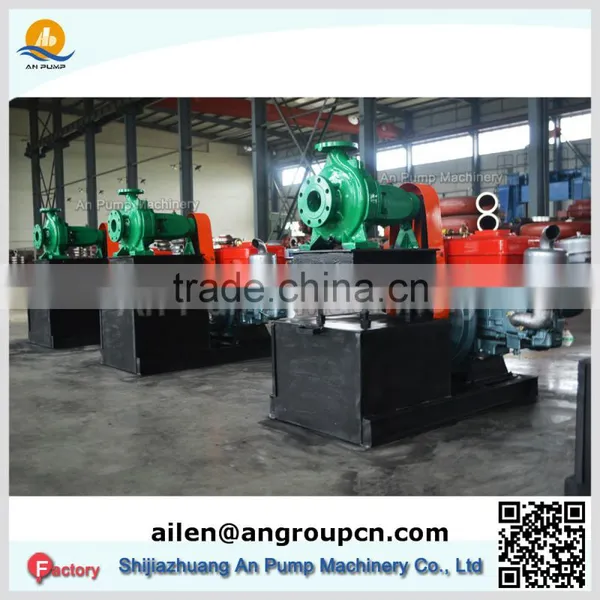

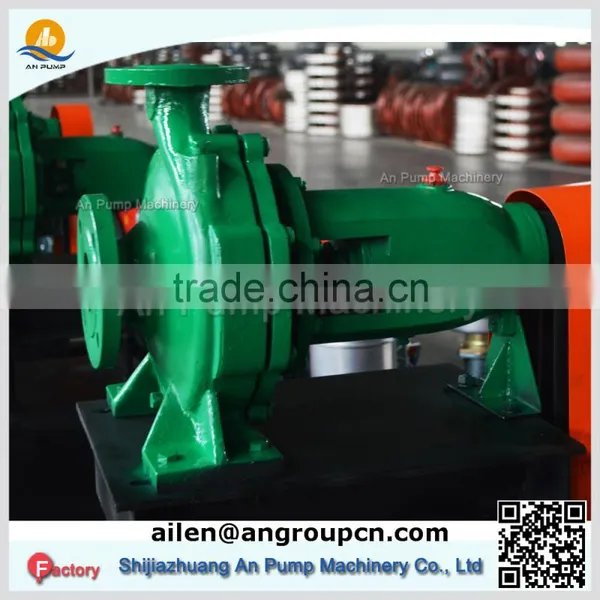

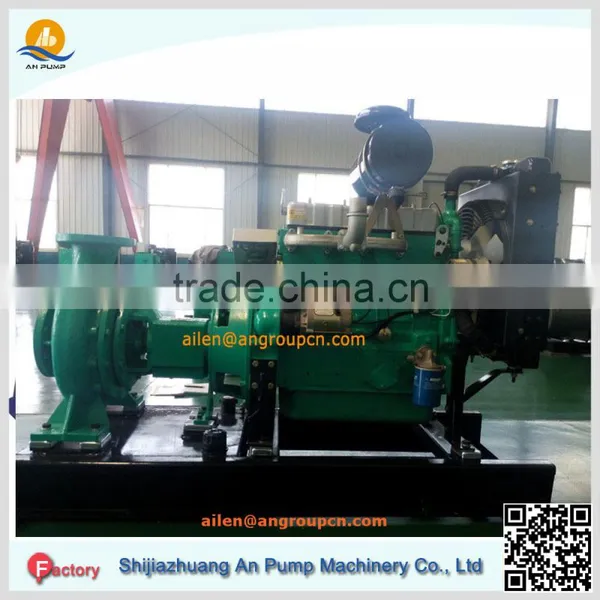

Centrifugal Irrigation Mobile Diesel Water Pump
Summarize about Centrifugal Irrigation Mobile Diesel Water Pump
The mobile diesel water pump of type QI is a single stage, single suction (axial suction) centrifugal for pumping clean water and the other liquids physically and chemically similar to the clean water. It is desiged as per the interational standard ISO2858. The temperature of liquid shall not be over 80℃. This pump is suitable for public water supply and drainage duties in industries and land irrigation also in agriculture.
Design duty and features about Centrifugal Irrigation Mobile Diesel Water Pump
Speed n: 2900rpm and 1450rpm
Inlet diameter: 50 to 300mm
Capacity Q: 6.3 to 400m3/h
Head H: 5 to 125m
Features of Centrifugal Irrigation Mobile Diesel Water Pump
| Working Principle | Centrifugal |
Main applications | Water |
Driver | Electric motor, Diesel motor |
Power Specs | 380/415 V 3phase; 50hz/60hz etc. |
Max. permissible fluid temperature | 80°C /150°C |
Type of connection | Flange |
Installation position | Horizontal |
Casing/Inner parts material | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
Shaft seal type | Mechanical seal |
Application of Centrifugal Irrigation Mobile Diesel Water Pump
1)Clean, thin, non-corrosive, non-flammable or non-explosive liquid without grain or fiber;
2)Water supply system;
3)Heat, air condition system;
4)Booster, constant pressure water supply;
5)Firefighting, splitting system;
6)Irrigating, farming;
7)Industry cooling, heater circulation system;
8)Industry transferring, drainage system;
Performance table list about Centrifugal Irrigation Mobile Diesel Water Pump
Centrifugal End Suction Pump Performance | |||||
Pump Type | Capacity | Head | Speed | Motor Power(kw) | Eff |
QI (R)50 | 3-14 | 3.7-82 | 1450-2900 | 0.55-11 | 21.5-60 |
QI 65 | 6-30 | 3.8-115.4 | 1450-2900 | 0.55-30 | 25-75 |
QI 80 | 12-60 | 3.6-128 | 1450-2900 | 0.55-37 | 39-75 |
QI 100 | 24.3-120 | 3.7-133 | 1450-2900 | 1.1-75 | 51-78 |
QI 125 | 51.4-240 | 8.4-133 | 1450-2900 | 4-110 | 52-81 |
QI 150 | 104-240 | 13-53 | 1450 | 11-45 | 62-81 |
QI 200 | 194-460 | 13.1-55 | 1450 | 22-90 | 65.5-82 |
QI 250 | 320-760 | 22.6-52 | 1480 | 75-132 | 67.5-84.5 |
QI 300 | 530-1200 | 21.9-38 | 1480 | 90-132 | 61.66-107.6 |
Advantages about Centrifugal Irrigation Mobile Diesel Water Pump
♦ 20 years in producing mobile diesel water pump
♦ Independent Design
♦ advanced technology from Australia, Canada, America
♦ OEM available
♦ Specialized Test Equipment
♦ Anti-rust treatment casting
♦ Supply reasonable suggestion for choosing pumps
FAQ about Centrifugal Irrigation Mobile Diesel Water Pump
Tips for Centrifugal Irrigation Mobile Diesel Water Pump installation
1. The preformed hole on the foundation should be poured as the pump installation drawing.
2. The installation level should meet the demand of the allowed vacuum suction height. The foundation should be in horizontal and stable condition, to make sure the rotation of the driver machinery same with the pump in the direction.
3. When connect by coupling, must make sure the pump and driver shaft center should be in a straight line.
4. If belt connection, the shaft center should be in parallel.
5. The pump suction pipe should be sealed well, and try to less the quantity of the elbow and check valve. When fill water, exhausted the air. It should be no any air when operate. We need to keep the suction pipe slopes up slightly, and then connect with the pump inlet.

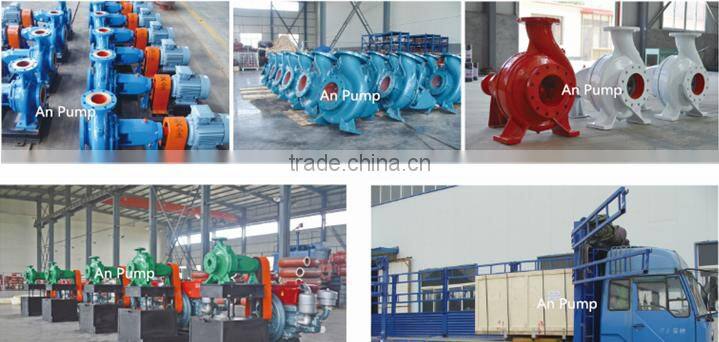

Packaging and shipping about Centrifugal Irrigation Mobile Diesel Water Pump
AN PUMP Brief Introduction:
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has our own type selection & design, research and development team, Assure to provide our efficient energy-saving design, use and maintenance solutions for the slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps.
Main Products:
An Pump Machinery manufactured slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps and other products are exported to over 90 countries around the world. The application covers many fields, such as dressing ship, tailings transportation, mining pumps, steel & power desulphurization, boiler feed water, construction, irrigation, water conservancy facilities, sewage treatment.
Engineer Department:
Experienced technical personnel is the powerful guarantee for quality products of slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps. An Pump Machinery technical team set up five R & D teams: hydraulic engineering, water pump structure, new materials research and development, casting, molding etc. Except the commonly used CAD and other design software, the technical teams also use CAPP computer-aided industrial design and CFD hydraulic design software. They combine years of experience in the practical application of the products, repeated use of water conservancy GIS, MIS software and simulation analysis system software demonstrated, calculations, the theoretical calculations product of slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps are accurate and consistent with the actual performance. It allowing users to meet the needs while significantly reducing the investment costs, improves An Pump Machinery Company's strong core competitiveness.
An Pump Machinery Company’s slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps and other production line are well-equipped, such as casting furnaces, vertical lathe, cutting tools, boring and milling machining centers production line equipment are fully automatic data control; Precision casting molds and resin-bonded sand, precoated sand casting process, is a powerful pump parts guarantee of quality and appearance; Automatic curve heat treatment furnaces control pump accessories heat treatment process automatically and appropriately; International advanced pump detection equipment for signal acquisition, digital filtering and calibration ensure the accuracy of the data; Spectrograph, liquid analyzers and other testing equipment ensure the reliability and stability of the material; These advanced manufacturing and testing equipment ensure the quality and stability of slurry pump, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps and other products.
Manufacturing process about Centrifugal Irrigation Mobile Diesel Water Pump
AN PUMP Development:
For the research and development of new materials for slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps, An Pump Machinery’s engineers constantly strive to explore casting and set up a new materials R&D team. The products meet API610 standards, in addition to Cr27, high-chromium alloy, SS304, SS316, SS904, CD-4MCu, duplex stainless steel and other wear & corrosion resistant alloys, R-type rubber corrosion resistant heavy flow components, corrosion-resistant high-strength teflon material, high-crystalline silicon ceramic corrosion-resistant materials were gradually developed. This reached advanced level in domestic and international.
In the era of rapid development of science and technology, An Pump Machinery team takes the entrepreneurial spirit "excellence and constant product quality, brand known worldwide", business purpose "the achievements of create brand enterprise and industry pioneer", to help you out and provide quality & cheap innovative products, with corporate philosophy of Kinda technical specialists and sophisticated equipment as backup, and work together with you to create brilliant!
Manufacturing Equipment:
Our service about Centrifugal Irrigation Mobile Diesel Water Pump
Offer pump solution, design, manufacturing, and after-sales service.
Service | Specification |
1. Selection | Send us working data (medium, head, flow rate...) |
2. OEM/ODM | Please show us the pump design drawing |
3. Process design | Offer process design as working condition. |
Contact AN PUMP for more information about Centrifugal Irrigation Mobile Diesel Water Pump
