General Purpose End Suction Water Pump

General Purpose End Suction Water Pump thumbnail-1
General Purpose End Suction Water Pump thumbnail-2
General Purpose End Suction Water Pump thumbnail-3
General Purpose End Suction Water Pump thumbnail-4
General Purpose End Suction Water Pump thumbnail-5
General Purpose End Suction Water Pump thumbnail-6

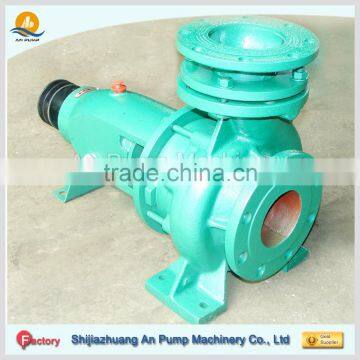

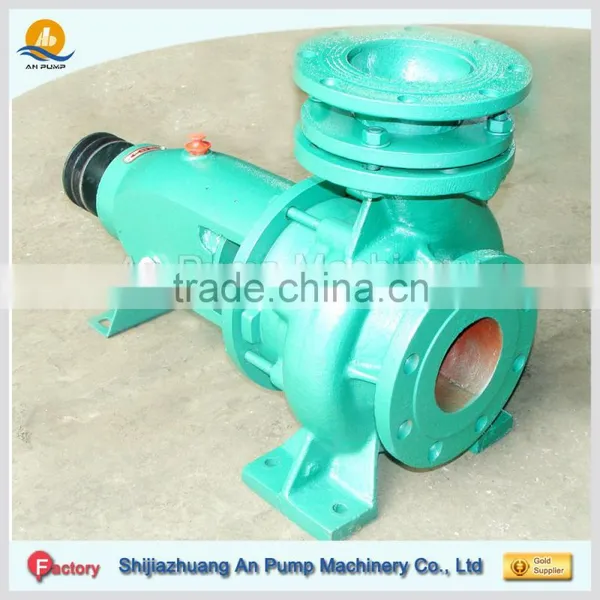

General Purpose End Suction Water Pump photo-1

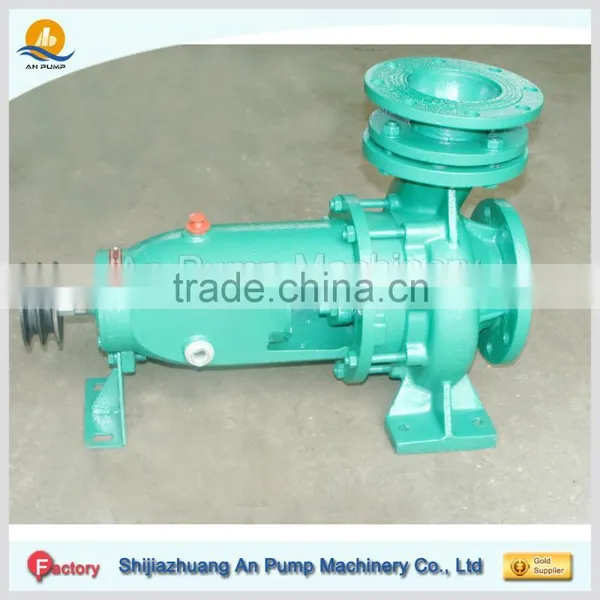

General Purpose End Suction Water Pump photo-2

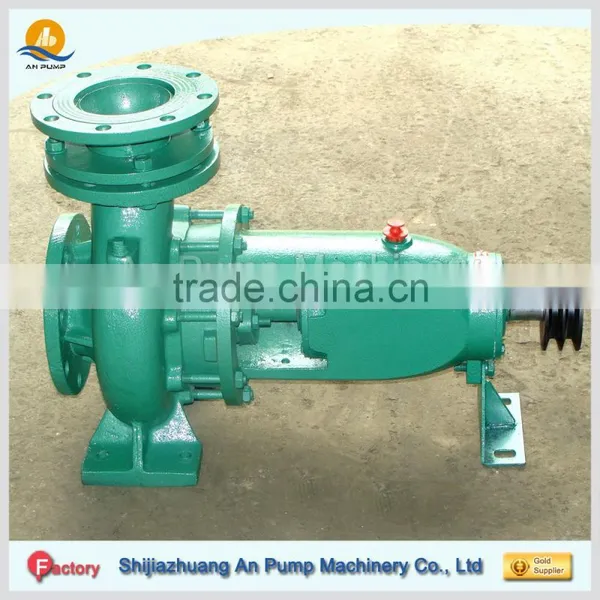

General Purpose End Suction Water Pump photo-3

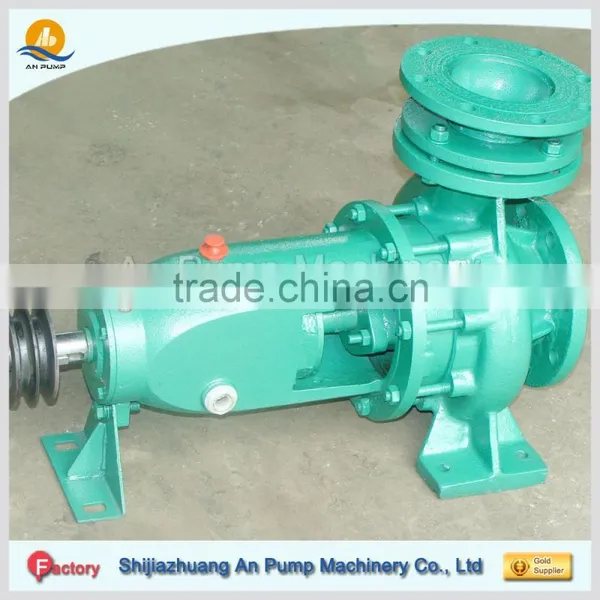

General Purpose End Suction Water Pump photo-4

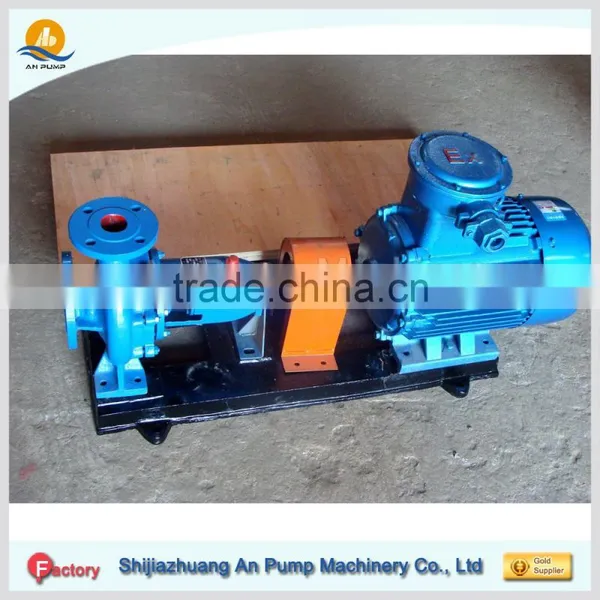

General Purpose End Suction Water Pump photo-5

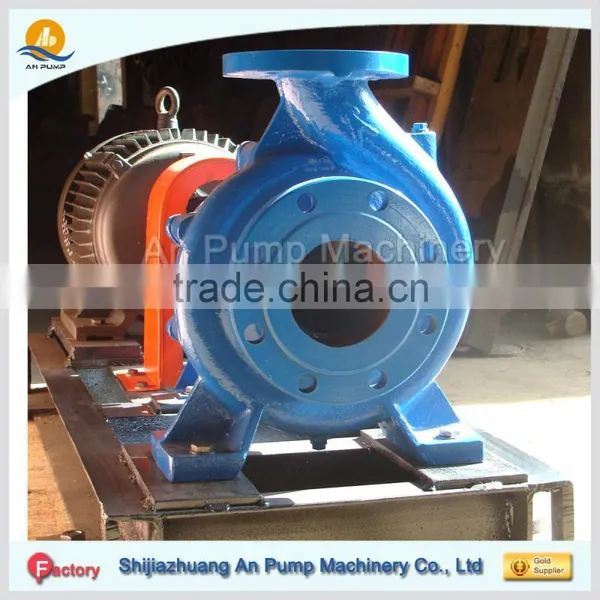

General Purpose End Suction Water Pump photo-6
US$ 500 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
AN PUMP
Model Number:
QI
Contact Supplier Request Quote Chat Now
Shijiazhuang An Pump Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin ( xingang )
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name AN PUMP
Model Number QI
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, electric water pump
Pressure Other, high pressure water pump
Application Other, general purpose water pump

General Purpose End Suction Water Pump

General Purpose End Suction Water Pump



General Purpose End Suction Water Pump  Brief introduction

QI series pump is single-stage , single-suction centrifugal pump , designed as per the interational standard ISO2858 . It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°C.





General Purpose End Suction Water Pump Technical Data



Type

QI

Capacity (m3/h)

3.5-1200

Head (m)

3.7-128

Speed (r/min)

1450-2900

NPSHr (%)

2.0-7.5

Eff. (%)

86-95

Weight (kg)

33-1720

Dia Inlet (mm)

50-300

Dia Outlet (mm)

32-250







General Purpose End Suction Water Pump Applications

• Irrigation

• De-watering
• Power/cogeneration
• Desalination
• Mining
• Metal manufacturing
• Petrochemical
• General industrial utility
• Water distribution / supply / treatment







General Purpose End Suction Water Pump Features

Working Principle

Centrifugal

Main applications

Water, oil, chemical

Driver

Electric motor, Diesel motor

Power Specs

380/415 V 3phase;  50hz/60hz etc.

Max. permissible fluid temperature

80°C /150°C

Type of connection

Flange

Installation position

Horizontal

Casing/Inner parts material

Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze

Shaft seal type

Mechanical seal





Advantage

♦ 20 years in producing pumps

♦ Independent Design

♦ advanced technology from Australia, Canada, America

♦ OEM available

♦ Specialized Test Equipment

♦ Anti-rust treatment casting

♦ Supply reasonable suggestion for choosing pumps





General Purpose End Suction Water Pump Show

General Purpose End Suction Water Pump

Packaging & Shipping
  • Standard wooden cases package, if special requirements, should be inform in advance;
  • Shipping by sea, by air, by train and truck all available;
  • Delivery date: vary from 5-30days according to different model and quantity.

Our Services
  • 1 year guarantee of whole machine set, except the flow parts
  • 24hours *7 days service is available
  • Calling or door to door service
  • User manual and maintenance instruction is available

Company Information

 General Purpose End Suction Water Pump


FAQ

Q1. Are you a manufacturer?

Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.



Q2. What markets do your pumps export to?

Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.



Q3. What information should I let you know if I want to get a quotation?

Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision

and accurate model selection.



Q4. Is it available to print our own brand on the pump?

Totally acceptable as international rules.



Q5. How can I get the price of your pump?

You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.


Contact information

 General Purpose End Suction Water Pump



            Lilly Sun (Ms)

            Email: anpump6 @ angroupcn dot com

            Online Skype ID: anpumpstar

            Whatsapp No: 008615930103983

            Anything thing need help, please call me any time, i will try best to help you.
