End Suction Long distance transfer liquid manure pump
QI sries long distance transfer liquid manure pump are single stage and single suction centrifugal pumps , for transport wa
It has such characteristics as wide range of performance, high efficiency, high mechanical, chemical and physical level and
convenient maintenance etc. It is energy saving type product recommended by the nation with its efficiency being 5% greater
than that of other similar model pump.
The temperature of transported media of QI model pump is 20-105 C deg . Through adopting cooling method, it can
transport media with higher temperature if necessary, and is applied to transport various corrosive media or media in which
pollution is forbidden similar to water in such industries as chemical industry, petroleum, metallurgy , electric power,
papermaking, food, pharmacy and synthetic fiber etc.
Standard long distance liquid manure pump type meaning for example
QI100-160
QI: Single stage single suction water pump
100: Pump inlet dia (mm)
160: The Impeller Size
| Type | Flow(m3/h) | Head(m) | Power(KW) | Speed(r/min) |
| QI50 | 3--15 | 3.7--82 | 0.55--11 | 1450--2900 |
| QI65 | 6--30 | 3.8--115.4 | 0.55--30 | 1450--2900 |
| QI80 | 12--60 | 3.6--116.9 | 0.55--37 | 1450--2900 |
| QI100 | 23.7--120 | 3.7--133 | 1.1--75 | 1450--2900 |
| QI125 | 51.4--240 | 8.4--133 | 4--110 | 1450--2900 |
| QI150 | 104--240 | 13--53 | 11--45 | 1450 |
| QI200 | 194--400 | 13.1--55 | 22--90 | 1450 |
| QI250 | 320--760 | 22.6--46.8 | 75--110 | 1480 |
| QI300 | 530--1200 | 21.9--38 | 90--132 | 1480 |
End Suction Long distance transfer liquid manure pump features
| 1. Installation and moveable easily , it is easy make rotor to take out from open back type structure system . |
| 2. Outlet water at the top of center , pump casing anchor support , structure stablely , maximum resistance line load caused by the eccentric and distorted . |
| 3. No overload design , ensure the whole performance and stable operation . |
| 4. Can be choose 2 pole or 4 pole general pump arbitrarily . |
| 5. Adopt national standard hydraulic model , high efficiency . |
| 6. Adopt international famous brand bearing and mechanical seal . |
| 7. Good resistance to cavitation performance . |
| 8. Directly driven by motor , pump come with flexible coupling . |

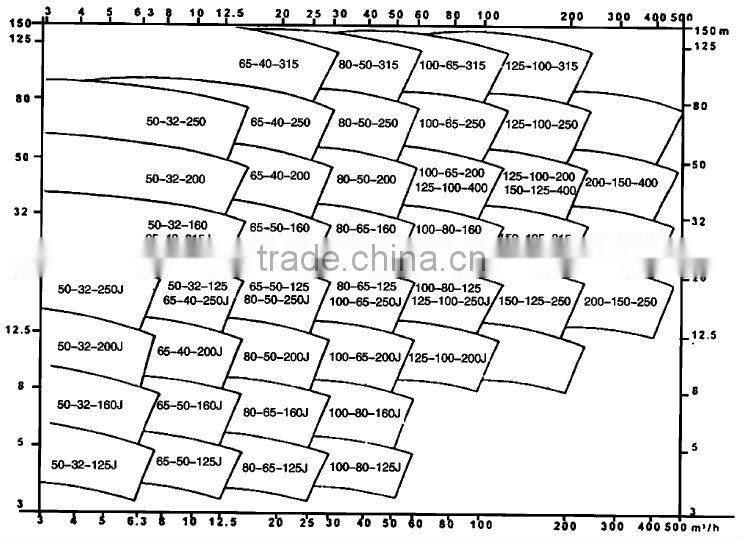

End Suction Long distance transfer liquid manure pump performance chart
End Suction Long distance transfer liquid manure pump applications
| 1. Farm irrigation |
| 2. Air-conditioning chilled water and colling water circulation |
| 3. Hot and cold water cycle |
| 4. Industrial purposes |
| 5. Water festures and swimming pool |
| 6. Factory , the urban water supply and drainage |
Wooden case packing of End Suction Long distance transfer liquid manure pump
Your 24x7 manufacturer team and service for End Suction Long distance transfer liquid manure pump:
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
An Pump Machinery is your Best End Suction Transfer Pump Manufacturer
An Pump Machinery Co. ,Ltd is the End Suction Transfer pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...
An Pump Machinery is your ISO certificated End Suction Transfer Pump Manufacturer
