QI(R) Electric Motor Farm Irrigation water pump is a single stage, single suction pump for pumping clean water and the other liquids physically and chemically similar to the clean water. This pump is suitable for public water supply and drainage duties in industries and land irrigation also in agriculture.
QI(R) type of end suction water pump are widely used in water works, agricultural irrigation, draining pump station, electric power station, air-conditioning circulation water, industrial water supply system, shipbuilding industry and general use in oil refining industry.
Domestic Water Supply
Fire Fighting
Circulation for Air-condition System
Agricultural Irrigation
Industrial Water Supply
Sea Water Pumping
Drainage
Municipal Projects
An Pump Machinery is ISO certificated Electric Motor Farm Irrigation water pump Manufactuer!

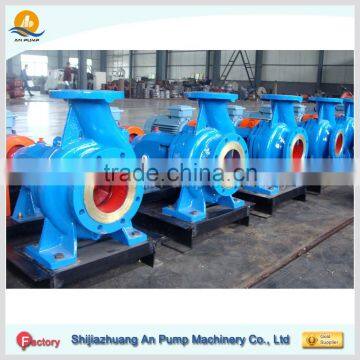

QI End Suction Water Pump
Material of QI Electric Motor Farm Irrigation water pump
Material |
Common(G) |
Wear resistant(P) |
Ultrawear resistant(N) |
Stainless steel(F) |
Pump casing |
HT200 |
QT500-7 |
Wear resistant |
SS304 |
Pump cover |
HT200 |
QT500-7 |
Wear resistant |
SS304 |
Impeller |
SS304 |
Duplex SS |
Duplex SS |
Duplex SS |
Liner of front and behind |
Wear resistant steel |
Wear resistant steel |
Wear resistant |
Duplex SS |
Bearing body |
HT250 |
HT250 |
HT250 |
HT250 |
Shaft |
3Cr13 |
3Cr13 |
3Cr13 |
3Cr13 |
Shaft sleeve |
2Cr13 |
2Cr13 |
2Cr13 |
SS304 |
QI Electric Motor Farm Irrigation water pump specification
1.Capacity 6.3-400m3/h
2.Head 5-125m
3.Speed 2900 r/min or1450 r/min
4.Discharge 50-200mm
5.Medium temparature: No more than150 degree centigrade
6.Working pressure: No more than0.6 centrifugal pump
QI End Suction Water Pump
QI End suction Pump Curve
General description of QI Electric Motor Farm Irrigation water pump
The centrifugal pump is single-stage and single-suction centrifugal pump, which designed according to ISO2858 international standard and the replacement product of BA-type water pump.
It is widely used in industrial and municipal water supply and drainage, agricultural irrigation and can also be used for conveying water or physical and chemical properties similar to water or other liquids bellow 80° C.
The pump is also designed according to ISO2858 international standard, which designed for boiler feed water and hot water circulation system. It could also be used for industrial and municipal water supply and irrigation, but the temperature should be not higher than 150° C.
QI(R) Electric Motor Farm Irrigation water pump performance data
Type |
Flow (m3/h) |
Head (m) |
Power (KW) |
QI50 |
3.4-15 |
3.7-68.8 |
0.55-11 |
QI65 |
6.8-30 |
3.7-126.8 |
0.55-30 |
QI80 |
13.6-60 |
3.6-128 |
0.55-45 |
QI100 |
27.3-120 |
3.4-115.5 |
1.5-75 |
QI125 |
56-240 |
8.5-132.5 |
2.2-110 |
QI150 |
99-240 |
12.4-57.5 |
15-55 |
QI200 |
197.7-460 |
14.8-55.8 |
30-90 |
Standard wooden case packing of QI Electric Motor Farm Irrigation water pump
An Pump Machinery is your Best QI Electric Motor Farm Irrigation water pump Manufacturer
An Pump Machinery Co. ,Ltd is the Water Pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...
An Pump Machinery is your ISO certificated end suction pump Manufacturer
An Pump Machinery is also CE cerficated Gland Seal Water Pump Manufacturer
1. Q: Are you a trading company or manufacture?
A: An Pump Machinery Co., Ltd is a real large professional manufacturer more than 32 years, in China, produce with our own factory.
2. Q: what's your factory workshops ?
A: My factory produce include casting, mechanical process, lathe process, heat treatment, assembly, and test etc.
Warmly welcome to visit & test my factory any time.
3. Q: How about your QI series centrifugal end scution pump price?
A: We are sure our price is factory price, and insist hig quality for our long term cooperation.
4. Q: What is your QI series end suction pump material ?
A: For the QI end suction pump, we could produce cast iron, cast steel, stainless steel, bronze, and material high CrMoNi alloy.
And we could also produce as your requirements.
5.Q: What kind of liquid can your QI series centrifugal end suction pump transfer?
A: Liquid range: water, chemical liquid, hot water, sewage etc.
6. Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.
Our factory has 15~30 QC.
7. Q: Is it easy for customers to change the parts by myselves ?
A: yes, the structure is simple ,customers can change it very easliy. We will also supply you maintenance tools for free.
8. Q: How about your gravel pump warranty?
A: 1 year warranty for commplete setpump, 6-8 months for wet parts, it depends on other pump working condition details.
9. Q: How to do if the pump or parts have operatation problem within your warranty?
A: Tell me details timely, and show me pictures, we will send you pump solution at once without any hesistation.
10. Q: Can you install the electric motor or diesel engine with the pump for us ?
A: yes, we can, it's no problem, we are experienced in this .
11: Q: .we don't know which pump model we need ,can you help us ?
A: yes, please tell me your detail requirements, include liquid, flow rate, head etc,
my engineers team wiill calculate & select most suitable pump model for you, offer pump solution for you.
12. Q:How long can you reply us if we send an inquiry ?
A: Generall with in 2 hours, we will send you official quotation sheet, with price, technology data, performance curve, dimension etc.
13. Q: What are your advantages,why should I choose you?
A: Higher Quality, our parts have 30% longer life than the originals
Short Delivery Time, for normal parts,we have stock in our warehouse
Competitive Price, we can help you cut down the cost by 30% or more
Best Services, we have technical department, quality control department and a professional sales team, we will offer professional service for you any time.
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
24x7 service for your Electric Motor Farm Irrigation water pump:
Roger Chen
P: +86 311 899 40549
F: +86 311 862 71170
Wechat /whatsapp: +86 137 805 12387
Skype: chenroger1215
Email: roger at
Email: pump at
(Please put "@" to "at" when you send the email)
More End Suction Water pump Showing:
