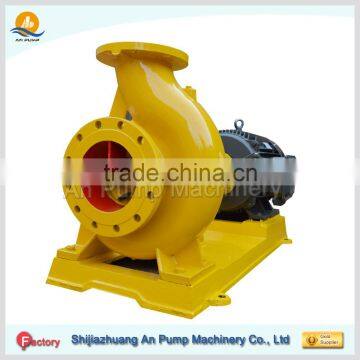

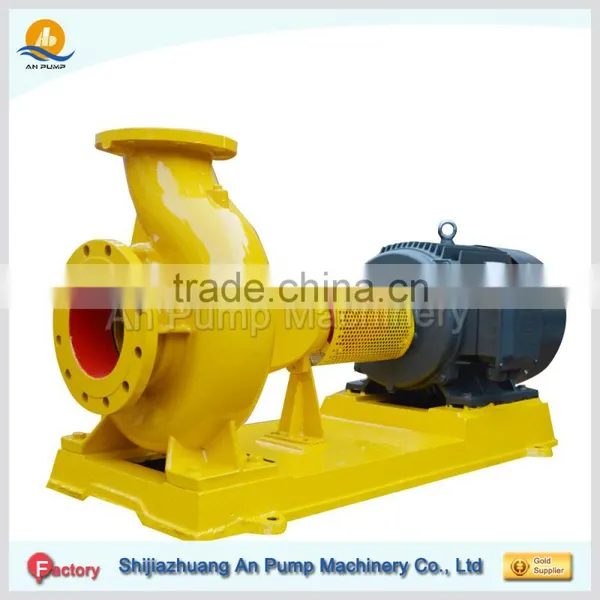

High Pressure Stainless Steel Mechanical Seal End Suction Centrifugal Pump
US$ 150 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
An Pump
Model Number:
QI
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Horizontal Bare Shaft Centrifugal Water Pump for Water PumpUS$ 100 - 3,000MOQ: 1 Set -
Horizontal End Suction Centrifugal Pitch PumpUS$ 150 - 6,000MOQ: 1 Set
-
Direct Connect Pipeline End Suction PumpUS$ 150 - 6,000MOQ: 1 Set
-
High Suction Lift Centrifugal Water PumpUS$ 150 - 6,000MOQ: 1 Set
-
Diesel End Suction Dewatering Pump Horizontal Centrifugal Electric Water Transfer PumpsUS$ 260 - 6,600MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
An Pump
Model Number
QI
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Other, irrigation,farm,sewage,heat,air conditioner
Power
Electric
Standard or Nonstandard
Standard
Fuel
Diesel
Pressure
High Pressure
Application
Other, irrigation,farm,sewage,fire,water,heat,air conditioner
Product Description
High Pressure Stainless Steel Mechanical Seal end suction centrifugal pump
Medium and Application
Medium:
Acids & lyes, Salt solution, Oils, Beverage, Beer & alcohol, Organic solvent, High corrosion medium
High and low density slurry, Alkene, Waste water
Application:
Automobile pickling, Non-ferrous metal metallurgy, Caustic soda, Pesticide, Electronics
Papermaking, Rare-earth separation, Pharmaceutical, Pulp production, Sulfuric acid industry
Environmental protection industry
QI pump details
Pump Description
QI type single-stage end-suction centrifugal pump is designed according to the capability
and size stipulated in the international Standard ISO2858, it is composed of pump body, pump cover,
impeller, shaft,ring seal, sleeve and suspended bearing units, etc.
QI pump performance data
QA&QC
Reliable and comprehensive quality assurance system ensures the excellent quality of our products. We have got the "International Standard" certification, manufactured according to GB, Department of superscript, and industry standards, we implement a comprehensive quality management during the entire process of production, accordance with the process file processing strictly, and a variety of detection methods etc.
We have meet the requirements of GB3216-89 national Class B accuracy, <>, computer test data monitoring of water test pumping station application. There are physical chemistry laboratory, metallographic analysis room in our factory, for testing material properties in different respects.
1. Quality Policy
Advocates quality is the life of enterprise, assiduous, the pursuit of excellence
2. Quality objectives
qualified products rate 99%, factory qualified pass rate: 100%
3. Quality Commitment
1) We will continue to improve the awareness of quality, implementing as GB/T19001-2000 quality assurance model standard, meeting technical requirements stipulated in the contract. We are not only discharge for the supplier host, but also for the quality of spare parts, external assistance products etc.
2) We promise the delivery time stipulated in the contract.
Medium and Application
Medium:
Acids & lyes, Salt solution, Oils, Beverage, Beer & alcohol, Organic solvent, High corrosion medium
High and low density slurry, Alkene, Waste water
Application:
Automobile pickling, Non-ferrous metal metallurgy, Caustic soda, Pesticide, Electronics
Papermaking, Rare-earth separation, Pharmaceutical, Pulp production, Sulfuric acid industry
Environmental protection industry
QI pump details
| Working Principle: | Standard Centrifugal, end suction |
| Main applications: | Water / sewage / hot water / pulp etc |
| Driver: | Electric motor, diesel engine |
| Power Specs: | 220V,240V,380V,400V,415V,440V 50hz/60hz |
| Max.permissible fluid temp: | 80°C / 100ºC(IR hot water type) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron/Cast steel /stainless steel / brass etc |
| Shaft seal type: | Packing seal, Mechanical seal |
| Maximum drive rating: | 175KW |
| Maximum caliber: | 300mm |
| Maximum head: | 130m |
| Flow rate range: | 6.3-800m3/h |
Pump Description
QI type single-stage end-suction centrifugal pump is designed according to the capability
and size stipulated in the international Standard ISO2858, it is composed of pump body, pump cover,
impeller, shaft,ring seal, sleeve and suspended bearing units, etc.
QI pump performance data
| Type |
Flow (m3/h) |
Head (m) |
Power (KW) |
| QI50 | 3.4-15 | 3.7-68.8 | 0.55-11 |
| QI65 | 6.8-30 | 3.7-126.8 | 0.55-30 |
| QI80 | 13.6-60 | 3.6-128 | 0.55-45 |
| QI100 | 27.3-120 | 3.4-115.5 | 1.5-75 |
| QI125 | 56-240 | 8.5-132.5 | 2.2-110 |
| QI150 | 99-240 | 12.4-57.5 | 15-55 |
| QI200 | 197.7-460 | 14.8-55.8 | 30-90 |
QA&QC
Reliable and comprehensive quality assurance system ensures the excellent quality of our products. We have got the "International Standard" certification, manufactured according to GB, Department of superscript, and industry standards, we implement a comprehensive quality management during the entire process of production, accordance with the process file processing strictly, and a variety of detection methods etc.
We have meet the requirements of GB3216-89 national Class B accuracy, <>, computer test data monitoring of water test pumping station application. There are physical chemistry laboratory, metallographic analysis room in our factory, for testing material properties in different respects.
1. Quality Policy
Advocates quality is the life of enterprise, assiduous, the pursuit of excellence
2. Quality objectives
qualified products rate 99%, factory qualified pass rate: 100%
3. Quality Commitment
1) We will continue to improve the awareness of quality, implementing as GB/T19001-2000 quality assurance model standard, meeting technical requirements stipulated in the contract. We are not only discharge for the supplier host, but also for the quality of spare parts, external assistance products etc.
2) We promise the delivery time stipulated in the contract.
