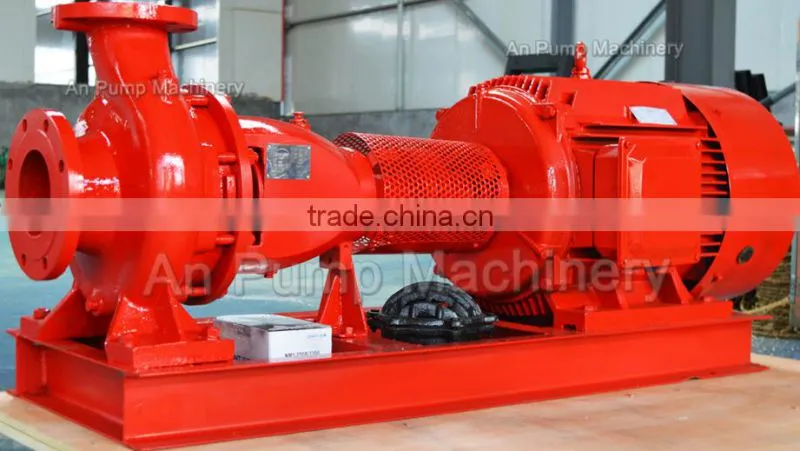

Horizontal end suction centrifugal pitch pump
- 8000 Set / Sets per Month
- Tianjin
- T/T Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | QI |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Other, irrigation,farm,sewage,heat,air conditioner |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | High Pressure | Application: | Other, irrigation,farm,sewage,fire,water,heat,air conditioner |
Product Description

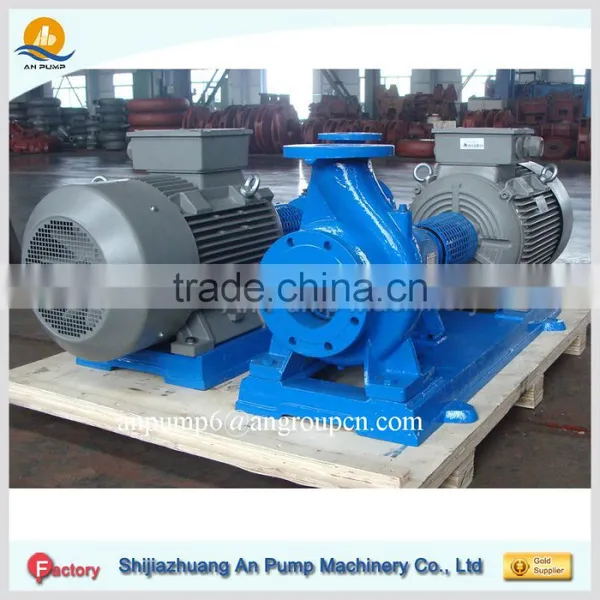

QI Single Stage Single Suction Pump Introduction:
QI series pump is single-stage , single-suction centrifugal pump , desiged as per the interational standard ISO2858 . It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°
QI series pump is designed according to the functions and dimensions the international standard ISO2858 requires by our company . It is suitable for hot boiler water supply , hot water circulation system , industrial and urban water supply and discharge as well as the agriculture irrigation . Nevertheless , the temperature of the water should be no more than 150°.
Pump Specification:
1.Capacity:320-760m3/h
2.Head:22.6-446.8 m
3.Speed:1480 r/min
4.Efficiency: 67.5%-84.5%
5.Power: 75-110 KW
Model Description
QI Single Stage Single Suction Pump Performance:
Centrifugal End Suction Pump Performance | |||||
Pump Type | Capacity (m3/h) | Head (m) | Speed (rpm) | Motor Power(kw) | Eff (%) |
QI 50 | 3-14 | 3.7-82 | 1450-2900 | 0.55-11 | 21.5-60 |
QI 65 | 6-30 | 3.8-115.4 | 1450-2900 | 0.55-30 | 25-75 |
QI 80 | 12-60 | 3.6-128 | 1450-2900 | 0.55-37 | 39-75 |
QI 100 | 24.3-120 | 3.7-133 | 1450-2900 | 1.1-75 | 51-78 |
QI 125 | 51.4-240 | 8.4-133 | 1450-2900 | 4-110 | 52-81 |
QI 150 | 104-240 | 13-53 | 1450 | 11-45 | 62-81 |
QI 200 | 194-460 | 13.1-55 | 1450 | 22-90 | 65.5-82 |
QI 250 | 320-760 | 22.6-52 | 1480 | 75-132 | 67.5-84.5 |
QI 300 | 530-1200 | 21.9-38 | 1480 | 90-132 | 61.66-107.6 |
QI Single Stage Single Suction Pump Performance Curve:
QI Single Stage Single Suction Pump Constructure:
Application for QI Single Stage Single Suction Pump:
1)Clean, thin, non-corrosive, non-flammable or non-explosive liquid without grain or fiber;
2)Water supply system;
3)Heat, air condition system;
4)Booster, constant pressure water supply;
5)Firefighting, splitting system;
6)Irrigating, farming;
7)Industry cooling, heater circulation system;
8)Industry transferring, drainage system;

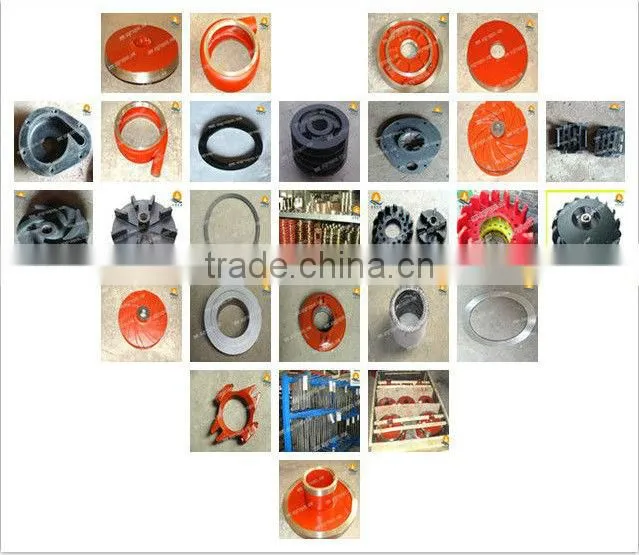

Spare Parts:
