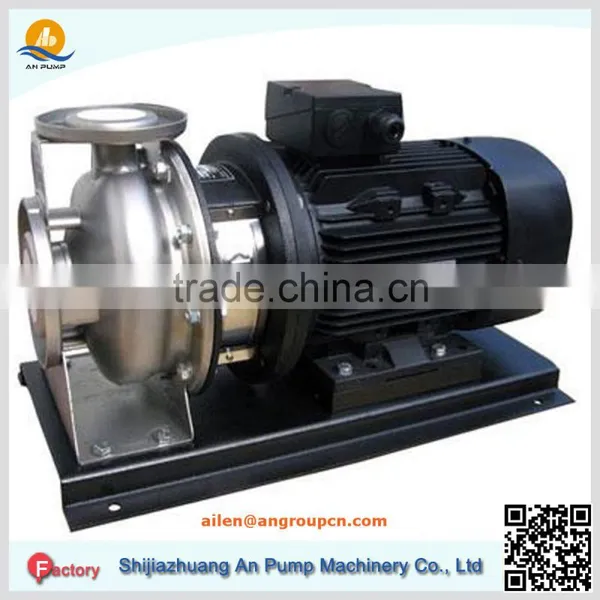

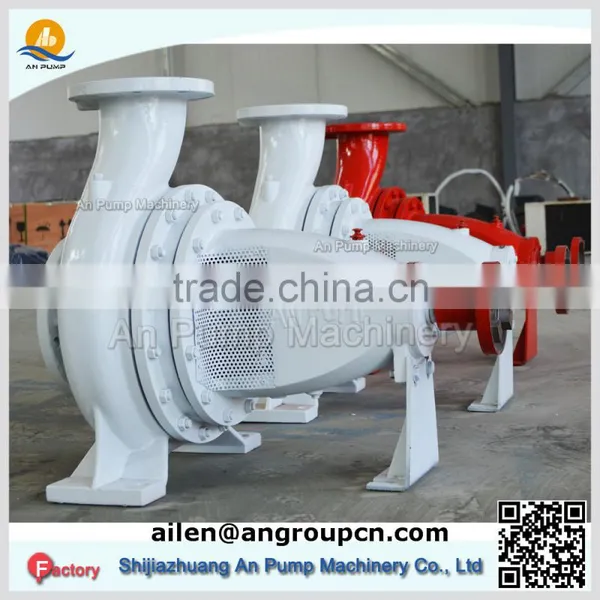

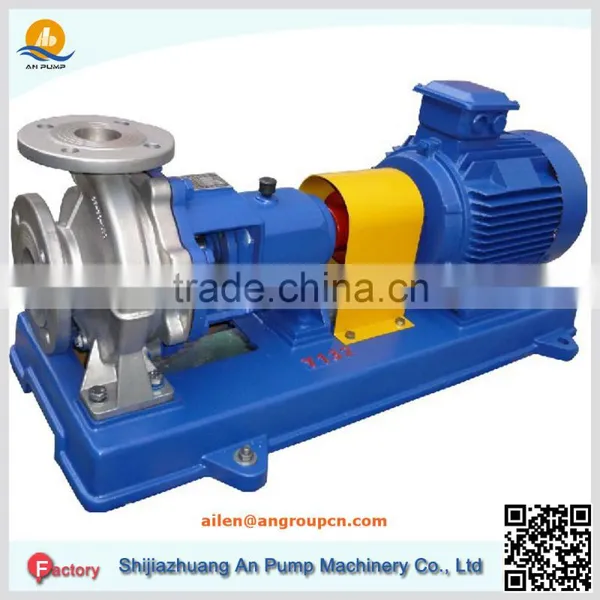

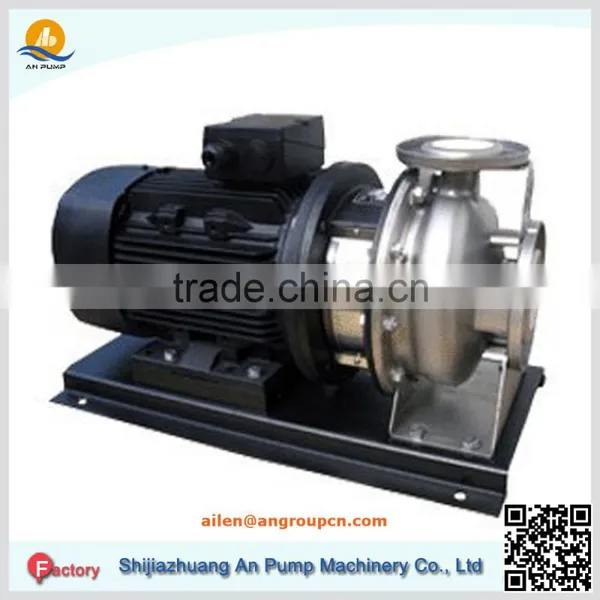

Chemical Circulation Centrifugal LPG Transfer Pump
======= Pump Overviews =======

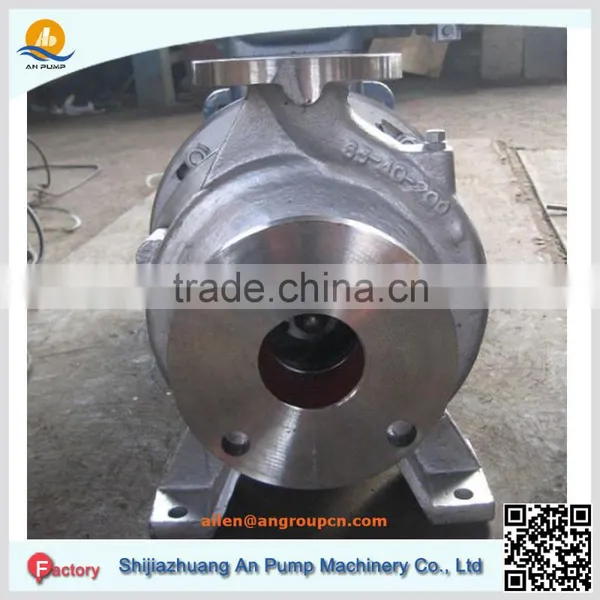

Overview of Chemical Circulation Centrifugal LPG Transfer Pump
chemical industry end suction pumps is a kind of horizontal single stage single suction centrifugal clean water pump.
======= Pump Applications =======
Application of Chemical Circulation Centrifugal LPG Transfer Pump
Delivery clearn water or liquid similar water in the properties of phusical and chemical.
chemical industry end suction pumps are widely used in water supply or drainager projection in different industries, such as metallurgy, power station, spinning and weaving, chemical, printing, dyeing, ceramics, rubber, heating, afterheating use, air conditioner, farm irrigtion and drainage, and so on...
======= Pump Features =======
Difference between QI and QIR type Chemical Circulation Centrifugal LPG Transfer Pump
QI: delivery water not more than 80 Celsius degree.
QIR: delivery water not more than 150 celsius degree.
======= Pump Performance =======
Performance data of Chemical Circulation Centrifugal LPG Transfer Pump
| Type | Flow | Head | Power |
| (m3/h) | (m) | (KW) | |
| QI50 | 3.4-15 | 3.7-68.8 | 0.55-11 |
| QI65 | 6.8-30 | 3.7-126.8 | 0.55-30 |
| QI80 | 13.6-60 | 3.6-128 | 0.55-45 |
| QI100 | 27.3-120 | 3.4-115.5 | 1.5-75 |
| QI125 | 56-240 | 8.5-132.5 | 2.2-110 |
| QI150 | 99-240 | 12.4-57.5 | 15-55 |
| QI200 | 197.7-460 | 14.8-55.8 | 30-90 |
| QI 250 | 320-760 | 22.6-52 | 75-132 |
| QI 300 | 530-1200 | 21.9-38 | 90-132 |
======= Pump Curves =======

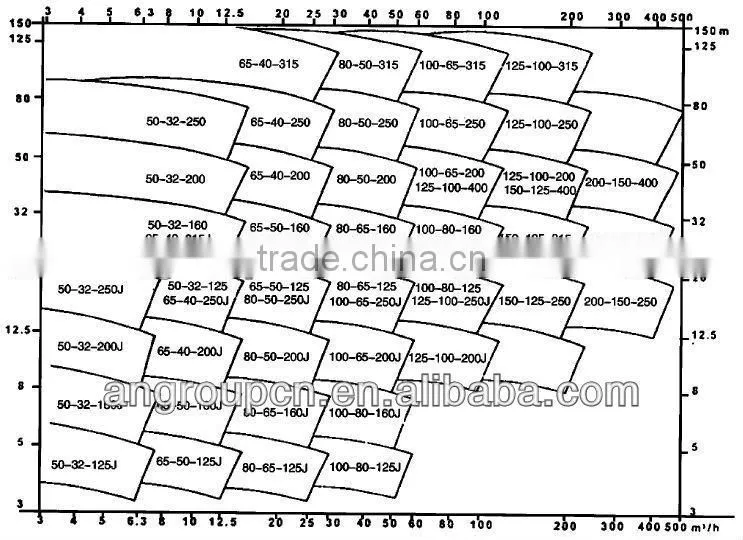

Performance curve of Chemical Circulation Centrifugal LPG Transfer Pump
======= Pump Materials =======

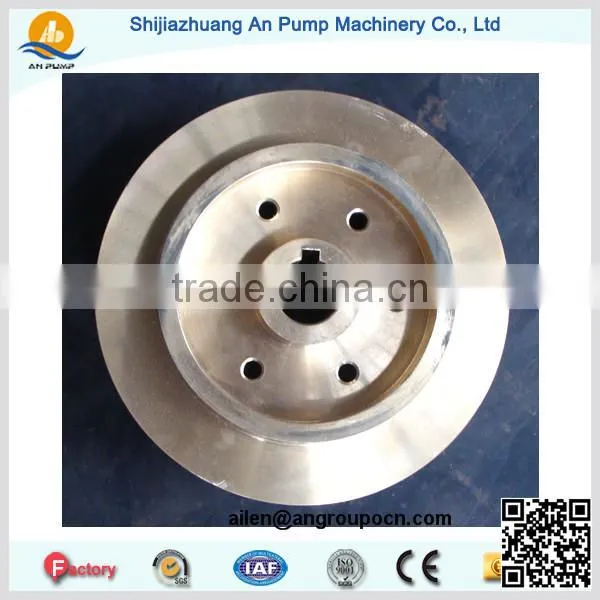

Material of Chemical Circulation Centrifugal LPG Transfer Pump
Casing |
Cast Iron and Ductile Iron standard; optional Stainless Steel |
Impeller |
Bronze standard, optional Cast Iron & Stainless Steel |
Shaft |
AISI420 standard, optional AISI304 & AISI316 |
======= Pump Construction =======

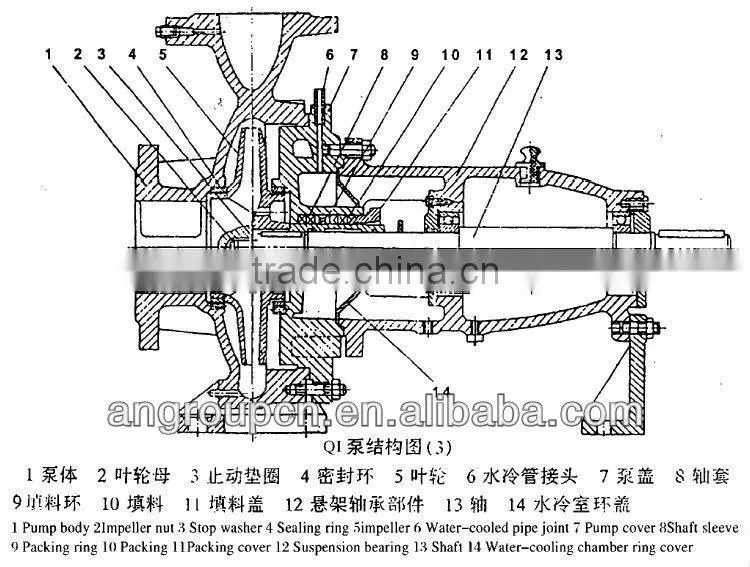

Structure of Chemical Circulation Centrifugal LPG Transfer Pump
======= Pakcaging and Shipping =======
Pakcaging and shipping for Chemical Circulation Centrifugal LPG Transfer Pump
