Centrifugal End Suction Stainless Steel Chemical Pump
- 5000 Set / Sets per Month
- Tianjin/Shanghai/Guangzhou
- T/T Credit Card PayPal
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | QI end suction pump,stainless steel pump |
| Theory: | Centrifugal Pump | Structure: | Other, single-stage pump,chemical pump | Usage: | Other, power plant/chemical,stainless steel pump, |
| Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric or diesel,end suction pump,chemical dosing pump |
| Pressure: | Other, High pressure,chemical pump,stainless steel pump, | Application: | Other, irrigation,farm,sewage,fire,water,heat,air conditioner |
Product Description

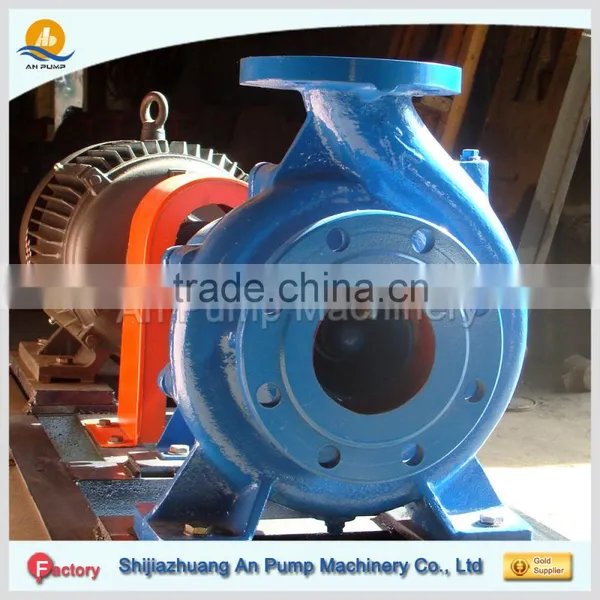

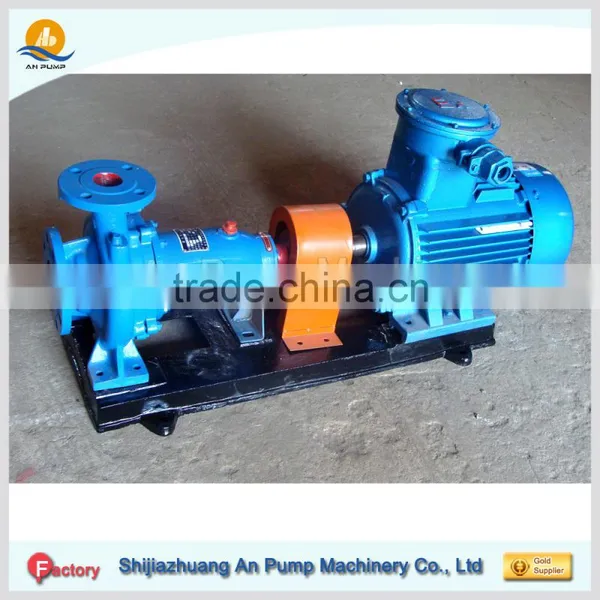

Centrifugal End Suction Stainless Steel Chemical Pump
Centrifugal End Suction Stainless Steel Chemical Pump Introduction
QI series pump is single-stage , single-suction centrifugal pump , desiged as per the interational standard ISO2858 .
It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°
QI series pump is designed according to the functions and dimensions the international standard ISO2858 requires by our company . It is suitable for hot boiler water supply , hot water circulation system , industrial and urban water supply and discharge as well as the agriculture irrigation . Nevertheless , the temperature of the water should be no more than 150°.
Centrifugal End Suction Stainless Steel Chemical Pump Specification
Working Principle: | Centrifugal type |
Main applications: | Chemical |
Driver: | Electric motor or Diesel engine |
Power Specs: | 220V, 240V, 380V, 400V, 415V, 440V, 50hz/60hz |
Max.permissible fluid temperature: | 105°C(221°F) |
Type of connection: | Flange |
Installation position: | Horizontal chemical pump |
Casing/Inner parts material: | Cast iron,SS 304,SS 316L,Duplex SS |
Shaft seal type: | Mechanical seal |
Maximum drive rating: | 90KW(10HP) |
Maximum caliber: | 300mm(12 inch) |
Maximum discharge-side pressure: | 1.25MPa(12.5bar) |
Maximum head: | 125m(410ft) |
Flow rate range: | 6.3-400m3/h(27.7-1760US.GPM) |

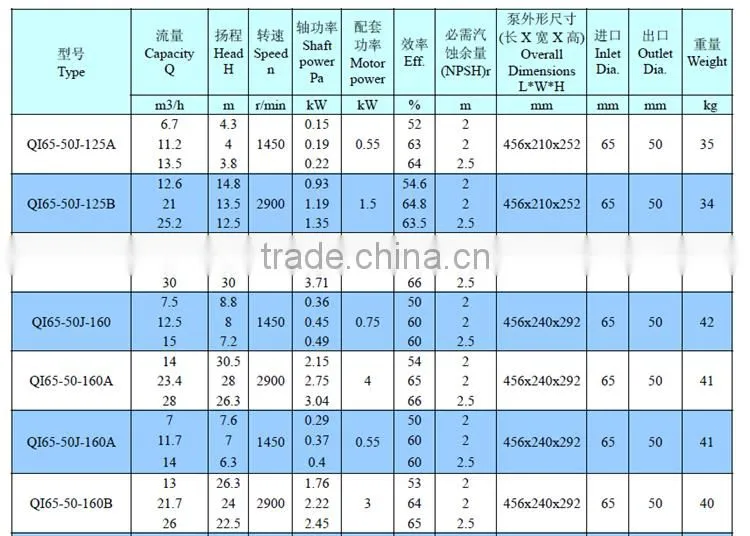

Centrifugal End Suction Stainless Steel Chemical Pump parameter
Centrifugal End Suction Stainless Steel Chemical Pump Curve
Centrifugal End Suction Stainless Steel Chemical Pump Structure
Centrifugal End Suction Stainless Steel Chemical Pump Application
♦ urban water supply and drainage |
♦ central heating system water supply and sewerage |
♦ iron and steel metallurgy enterprises |
♦ paper mills |
♦ petrochemical refineries |
♦ oil fields |
♦ construction of thermal power plants and power stations |
♦ airports, chemical factories |
♦ textile mills, sugar factories |
♦ chemical plants, power stations |
♦ mines |
♦ farmland drainage irrigation and hydraulic engineering. |

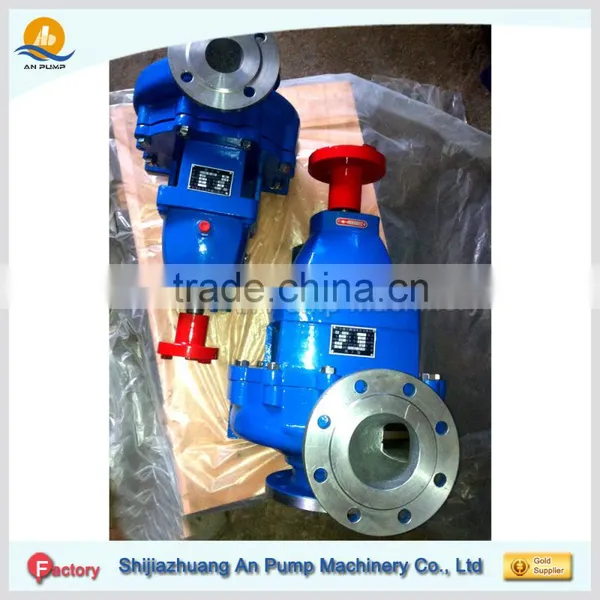

Centrifugal End Suction Stainless Steel Chemical Pump Packing and Shipping
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
