Hot Oil Fuel Multistage Centrifugal Pump
1. Hot Oil Fuel Multistage Centrifugal Pump Introduction:
QD, QDG series multistage centrifugal pumps
Description: QD, QDG series multistage centrifugal pumps and QDL series vertical multistage centrifugal pumps are multiple single stage impeller combined together makes head high. They are used for pure water and
liquids with concentration less than 1%, particles smaller than 0.1mm, or liquids similar to water in physico-chemical property. QD series pump’s medium temperature can not exceed 80℃, QDG series can not exceed 150℃. Head: 76-1080m, flow rate: 3-600m3/h.
We can use different materials of HT200, QT500, ZG500 stainless steel etc by different medium.
1) Easy installation and move;
2) Pump body support by anchor assure the stable structure and maximum resistance off-center and distortion caused by line load;
3) No overload design, make sure performance operate stably;
4) Adopt national standard hydraulic model make sure high operation efficiency and good anti-cavitation performance;
5) Packing seal and mechanical seal are available.
2. Hot Oil Fuel Multistage Centrifugal Pump range of application
Suitalbe for mine, city Water Supply and Sewerage Engineering
Transfer watery liquid medium, without solid particle, temperature under 80°C
Suitable for boiler water feed or deliver medium similar with hot water, without solid particle, temperature below 105°C
Suitable for stain steel, mine, sewage transferring process.
Transfer mine water with solid partical content under 1.5% or similar sewage, temperature under 80°C
Suitable for transferring Corrosive liquid without solid partical, temperature between -20°C~105°C
Suitable for transferring Oil and petroleum products without solid partical, temperature between -20°C~150°C, viscosity under 120cSt
Applications List
Air-conditioning system
Cooling system
Industrial cleaning
Water treatment(Water purification)
Aquiculture
Fertilizing / metering system
Environmental application
Other special applications
3. Hot Oil Fuel Multistage Centrifugal Pump Technical Specifications
Type |
QD(G) |
Capacity (m3/h) |
120-1100 |
Head (m) |
967-2500 |
Speed (r/min) |
2980-5410 |
Eff.(%) |
68-86 |
NPSHr (m) |
4.5-23.5 |
Power (kw) |
710-8000 |
4. Hot Oil Fuel Multistage Centrifugal Pump Feature
1, Easy maintenance: vertical pipeline structure, inlet & outlet at the same level, can be installed in any position and any direction, it is very easy whatever maintenance or installation.
2, No water pollution: the keyflow passage components are made of stainless steel after stamping, which has good characteristics of light weight, clean, health, it is a perfect water pump of environmental protection, energy-saving.
3, low operating cost, the main flow passage components are made of stainless steel after stamping, smooth flow passage components, which has good characteristics of high efficiency, less loss, low rate of failure, longer service life
4, motor: the Aluminum Alloy motor has good characteristics of light weight, small volume, good heat dissipation, good appearance, longer service life, high efficiency and low noise, etc.
5.Advantages
Over 20 years experience in pumps
Wear resistant material
Specialized Test Equipment
Anti-rust treatment casting

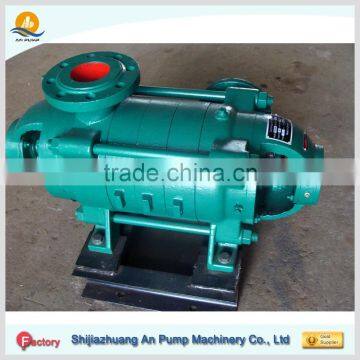

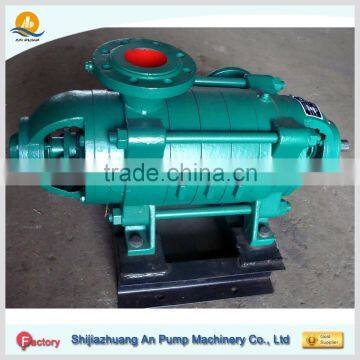

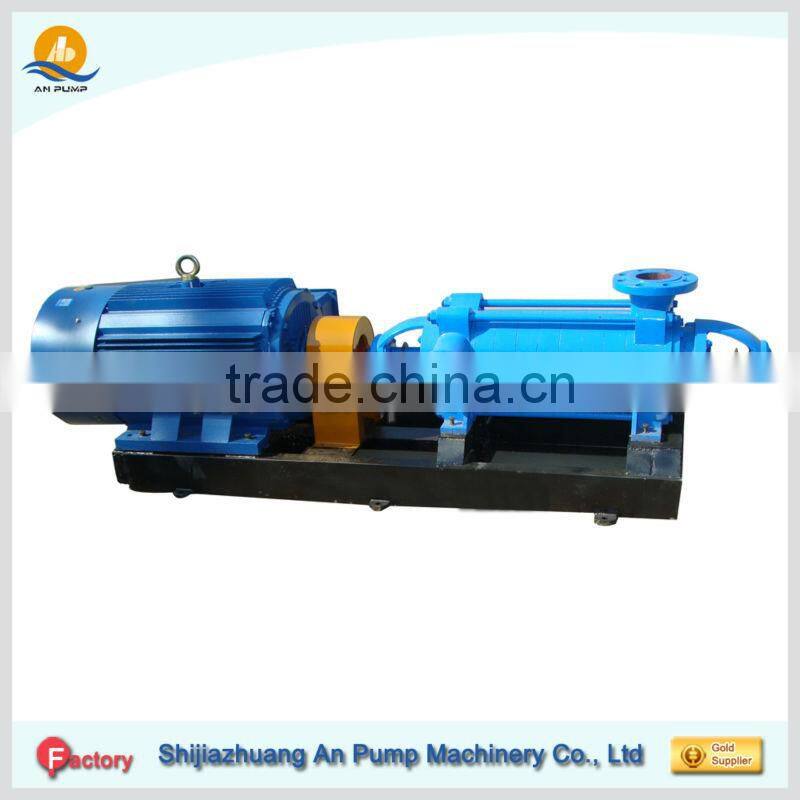

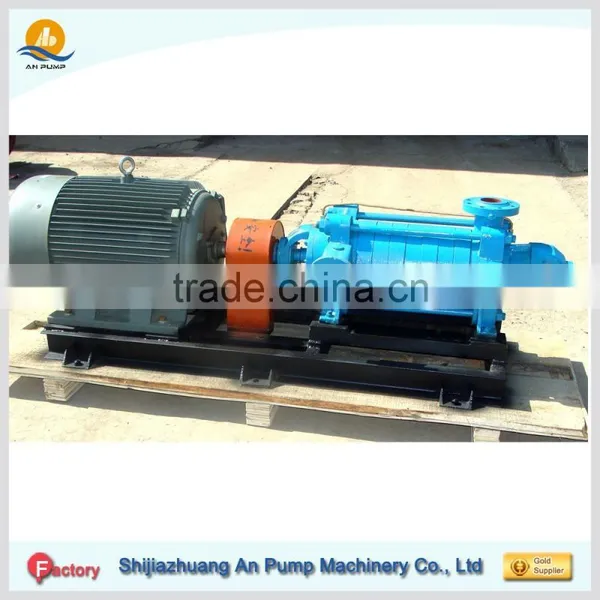

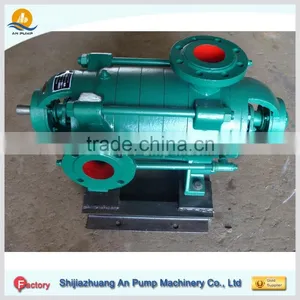

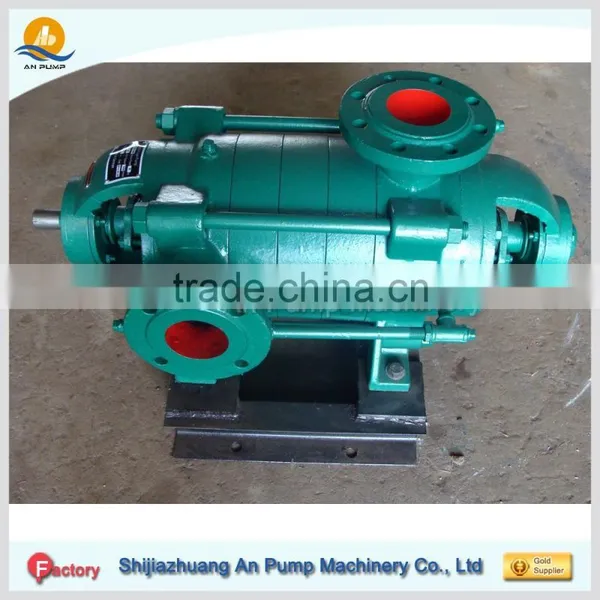

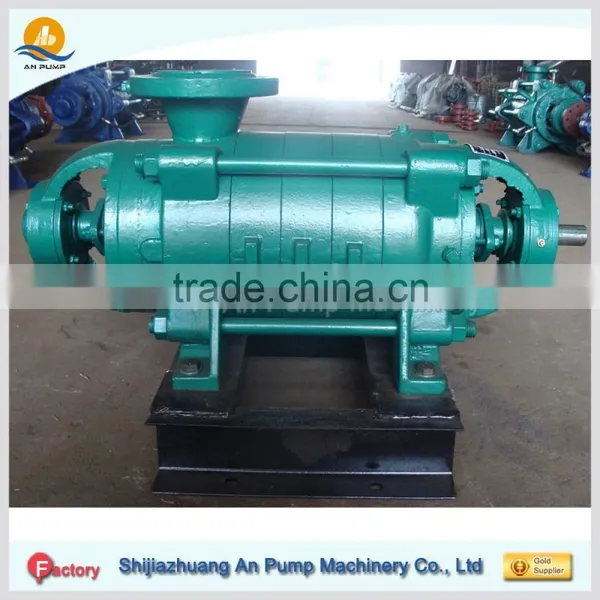

6. Hot Oil Fuel Multistage Centrifugal Pump Shows

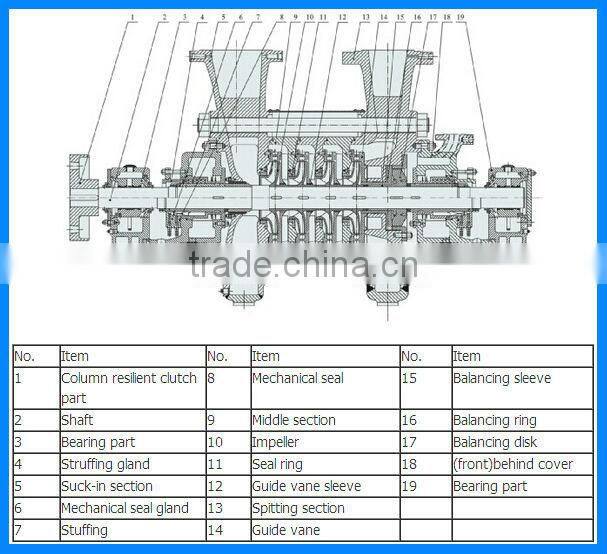

Hot Oil Fuel Multistage Centrifugal Pump sturcture
- Standard wooden cases package, if special requirements, should be inform in advance;
- Shipping by sea, by air, by train and truck all available;
- Delivery date: vary from 5-30days according to different model and quantity.
Guarantee and Service
1 year guarantee of whole machine set, except the flow parts
24hours *7 days service is available
Calling or door to door service
User manual and maintenance instruction is available
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An pump machinery company has its own strong type selection & design, research and development team, assure to provide you efficient, energy saving pumps type design, use and maintenance program.
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Send your inquiry details in the below, click "send" now! Send is to earn!
