Explosion Proof Diesel Engine Oil Transfer Fuel Pump
≈≈≈≈≈≈ APPLICATION ≈≈≈≈≈≈
Application for Explosion Proof Diesel Engine Oil Transfer Fuel Pump
Domestic Water Supply
Fire Fighting
Circulation for Air-condition System
Agricultural Irrigation
Industrial Water Supply
Sea Water Pumping
Drainage
Municipal Projects
≈≈≈≈≈≈ PERFORMANCE ≈≈≈≈≈≈
Peformance talbe list for Explosion Proof Diesel Engine Oil Transfer Fuel Pump
Type |
Flow |
Head |
Power |
QI50 |
3.4-15 |
3.7-68.8 |
0.55-11 |
QI65 |
6.8-30 |
3.7-126.8 |
0.55-30 |
QI80 |
13.6-60 |
3.6-128 |
0.55-45 |
QI100 |
27.3-120 |
3.4-115.5 |
1.5-75 |
QI125 |
56-240 |
8.5-132.5 |
2.2-110 |
QI150 |
99-240 |
12.4-57.5 |
15-55 |
QI200 |
197.7-460 |
14.8-55.8 |
30-90 |
≈≈≈≈≈≈ DESCRIPTION ≈≈≈≈≈≈
Descrition for Explosion Proof Diesel Engine Oil Transfer Fuel Pump

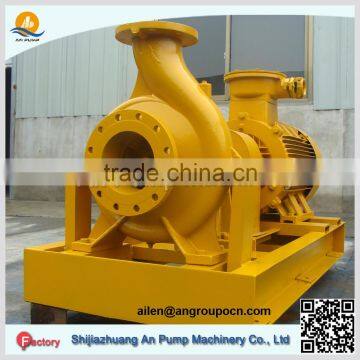

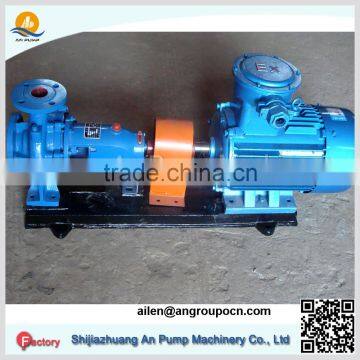

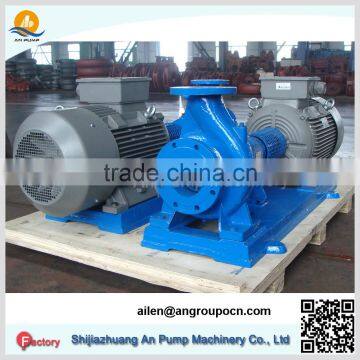

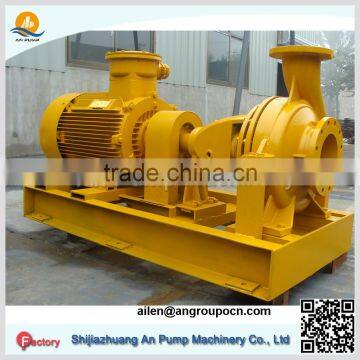

QI model pump is single-stage end suction axial suction cantilever type centrifugal pump, which is used to transport corrosive liquid with viscosity similar to water and without solid particles.
The marked and rated performances and dimensions adopt ISO2858 international standard.
It has such characteristics as wide range of performance, high efficiency, high mechanical, chemical and physical level and convenient maintenance etc. It is energy saving type product recommended by the nation with its efficiency being 5% greater than that of other similar model pump.
1 |
Pump casing |
4 |
Impeller nut |
7 |
Mid bracket |
2 |
Impeller |
5 |
Pump cover |
8 |
Shaft |
3 |
Seal ring |
6 |
Seal part |
9 |
Hanging stand |
The temperature of transported media of QI model pump is -20 – 105 C deg . Through adopting cooling method, it can transport media with higher temperature if necessary, and is applied to transport various corrosive media or media in which pollution is forbidden similar to water in such industry as chemical industry, petroleum, metallurgy , electric power, paper making, food, pharmacy and synthetic fiber etc.
≈≈≈≈≈≈ MORE INFORMATION ≈≈≈≈≈≈
More details information about Explosion Proof Diesel Engine Oil Transfer Fuel Pump
1.QI model pumps are the series of products designed according to ISO international standards in all industries. It is mainly composed of pump body, impellers, seal rings, impeller nuts, pump cover, seal parts, intermediate support, spindle, suspended parts and so on.
2.Structural features : the pump cover is fixed on the intermediate support, and the pump cover is clamped in the middle by coupling between pump body and intermediate support. On the pump body, water is input axially and output radially. Support feet can be fixed on t he bas e directly.
The suspended parts are fixed onto the intermediate support through the rabbet, and are supported onto the base by suspended frame.
3. Rotation direction: the pump is driven by motor directly through a prolonged coupling, seen from the side of the motor, it rotates clockwise.
4. Spindle seal patterns: spindle seal patterns o f pump are of two types such as stuffing seal and mechanical seal. The stuffing seal is that on stuffing casein pump cover , with software stuffing for sealing, input water of a certain pressure into the stuffing case, for cooling, lubrication and cleaning on seal; mechanical seal is of two types such as single-surface mechanical seal and double-suface mechanical seal, input water of a certain pressure into the seal chamber, for washing and cooling on the abrased sufaces.
Seal patterns of pump are of stuffing seal or mechanical seal, according to users' requirements, in a same time, seal chamber sizes and shaft gland patterns of other structures according to ISO3069
as required, are allowed, such as mechanical seals of corrugated pipes, assistant impeller seals and so on.
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly engaged in pump designing, manufacturing, selling and service. We develop the international trading business
of mining equipment, slurry pumps, and water pumps according the wide customer resource, comprehensive
technology and reasonable staffing.
An pump machinery’s main products includes: slurry pump, desulfurization pump, gravel pump, mud pump,
sewage pump, submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump, high head multistage water pump,end suction pump, self priming pump, pump parts and ancillary equipment.
