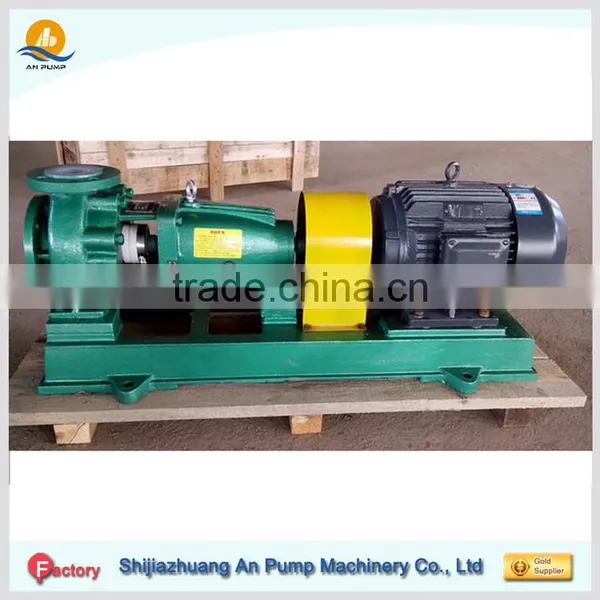

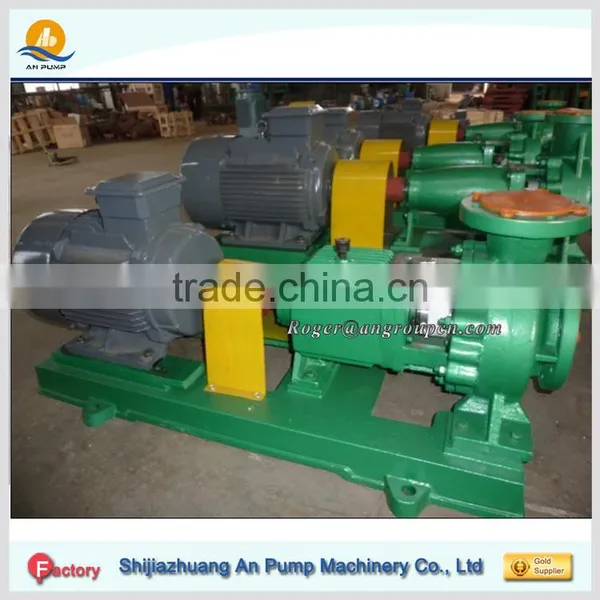

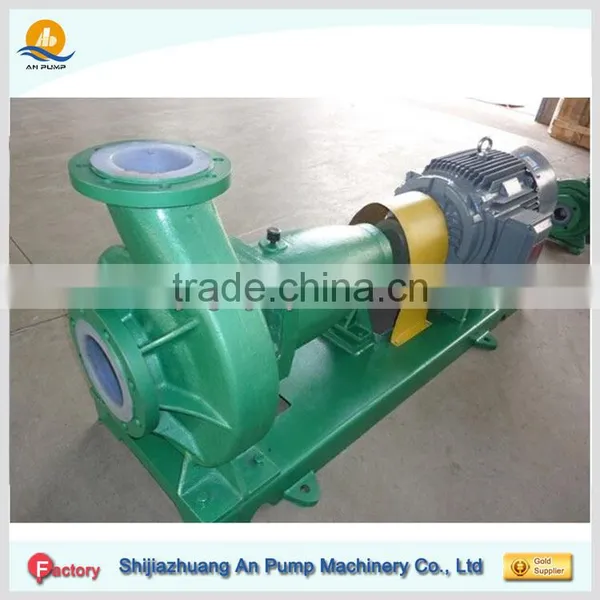

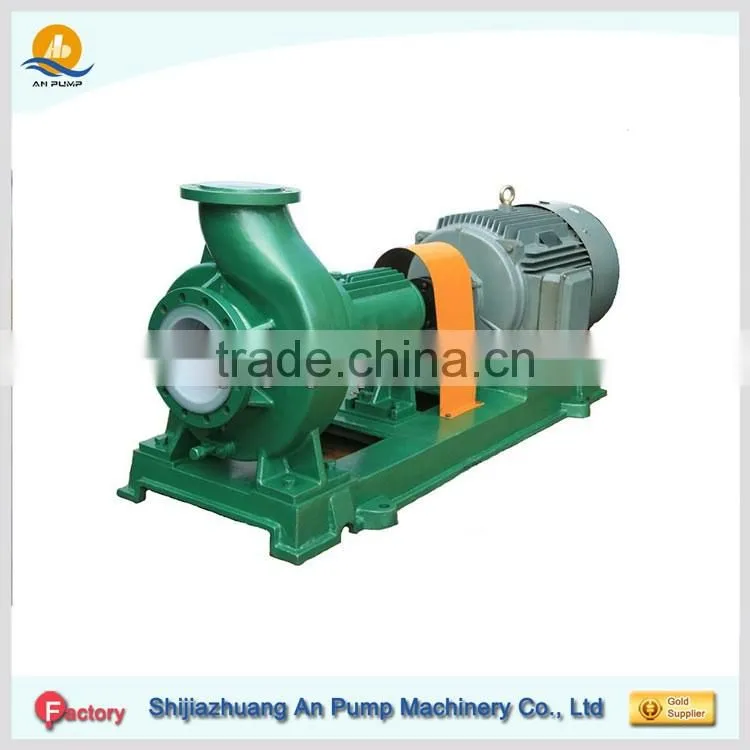

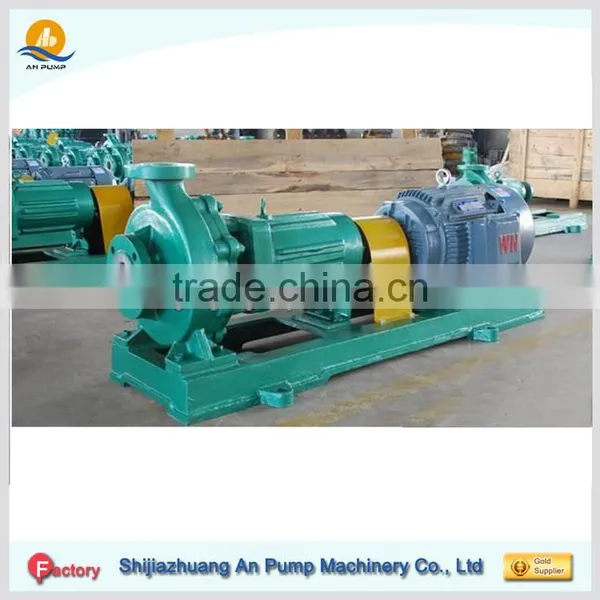

PTFE End Suction Chemical Pump
∪∪∪ APPLICATION ∪∪∪
Application for PTFE End Suction Chemical Pump
Chlor-alkali industry: lye, electrolyte, refined salt water of ion film caustic soda, chlorine solution, sodium hypochlorite, hydrochloric acid, sulfuric acid.
Non-ferrous metal smelting: conveyance of various sorts of acidic solutions, electrolytes, sewage in wet-process smelting;
Iron and steel industry: electroplating, pickling, etc;
Acid production: hydrochloric acid, nitric acidsulfuric acid, phosphoric acid, acetic acid, etc;
Paper-making industry: agents, bleaching liquid, sewage, etc;
Fermentation industry: intermediates, lactic acid, citric acid, food additives, beer, various ferment serum, etc;
Environmental protection: various sorts of medicaments, acid- and alkali- containing wastewater, etc.
∪∪∪ CONSTRUCTION ∪∪∪
Construction of PTFE End Suction Chemical Pump
∪∪∪ CURVE CHART ∪∪∪
Peformance curve chart for PTFE End Suction Chemical Pump
∪∪∪ MODEL LIST ∪∪∪
Performance table list about PTFE End Suction Chemical Pump
| Model | Speed n=2900 r/min | Speed n=1450 r/min | ||||||||
|
Flow rate m3/h |
Head | Power | NPSH m |
Eff % |
Flow rate m3/h |
Head | Power | NPSH m |
Eff % |
|
| m | Kw | m | Kw | |||||||
| 50-32-125 | 12.5 | 20 | 2.2 | 3 | 51 | 6.3 | 5 | 0.55 | 3 | 45 |
| 50-32-160 | 12.5 | 32 | 4 | 3 | 46 | 6.3 | 8 | 0.55 | 3 | 40 |
| 50-32-200 | 12.5 | 50 | 7.5 | 3 | 39 | 6.3 | 12.5 | 1.1 | 3 | 33 |
| 65-50-125 | 25 | 20 | 3 | 3.5 | 62 | 12.5 | 5 | 0.55 | 3.5 | 55 |
| 65-50-160 | 25 | 32 | 5.5 | 3.5 | 57 | 12.5 | 8 | 1.1 | 3.5 | 51 |
| 65-40-200 | 25 | 50 | 11 | 3.5 | 52 | 12.5 | 12.5 | 1.5 | 3.5 | 46 |
| 65-40-250 | 25 | 80 | 18.5 | 3.5 | 50 | 12.5 | 20 | 3 | 3.5 | 43 |
| 80-65-125 | 50 | 20 | 5.5 | 4 | 69 | 25 | 5 | 1.1 | 4 | 64 |
| 80-65-160 | 50 | 32 | 11 | 4 | 67 | 25 | 8 | 1.5 | 4 | 62 |
| 80-50-200 | 50 | 50 | 15 | 4 | 63 | 25 | 12.5 | 2.2 | 4 | 57 |
| 80-50-250 | 50 | 80 | 30 | 4 | 66 | 25 | 20 | 5.5 | 4 | 51 |
| 100-80-125 | 100 | 20 | 11 | 4.5 | 77 | 50 | 5 | 1.5 | 4.5 | 74 |
| 100-80-160 | 100 | 32 | 15 | 4.5 | 73 | 50 | 8 | 2.2 | 4.5 | 69 |
| 100-65-200 | 100 | 50 | 30 | 4.5 | 73 | 50 | 12.5 | 5.5 | 4.5 | 68 |
| 125-80-160 | 160 | 32 | 30 | 5 | 70 | 80 | 8 | 5.5 | 5 | 74 |
| 125-100-200 | 200 | 50 | 55 | 5 | 65 | 100 | 12.5 | 11 | 5 | 71 |
Note: Above just some of reference models, for the details please contact: roger (@)
∪∪∪ SHIPPING & PACKING ∪∪∪

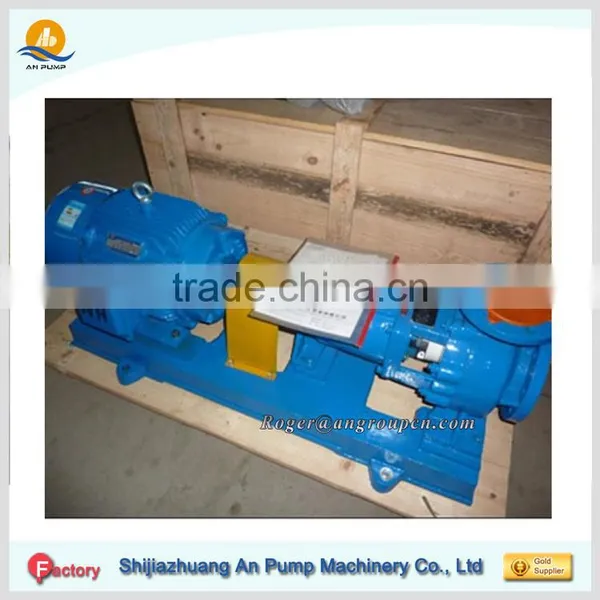

Shipping details about PTFE End Suction Chemical Pump
∪∪∪ ABOUT US ∪∪∪
Main product lines
An Pump Machinery manufactured slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps and other products are exported to over 90 countries around the world. The application covers many fields, such as dressing ship, tailings transportation, mining pumps, steel & power desulphurization, boiler feed water, construction, irrigation, water conservancy facilities, sewage treatment.
Engineer department
Experienced technical personnel is the powerful guarantee for quality products of slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps.
An Pump Machinery technical team set up five R & D teams:
hydraulic engineering, water pump structure, new materials research and development, casting, molding etc.
Except the commonly used CAD and other design software, the technical teams also use CAPP computer-aided industrial design and CFD hydraulic design software.
Manuafacturing process
