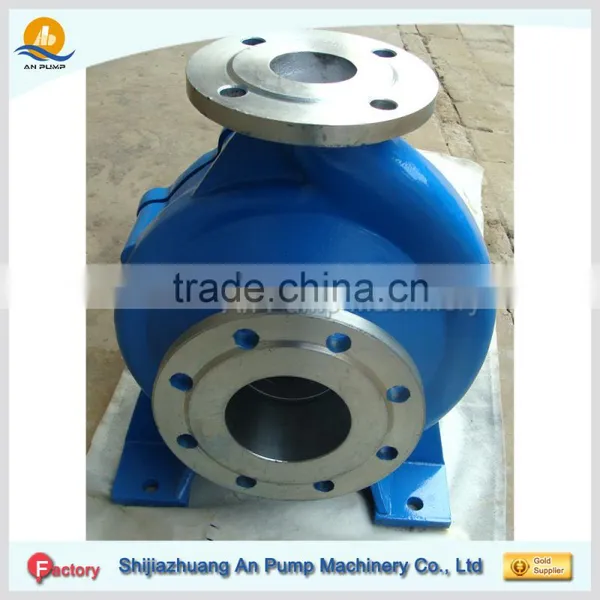

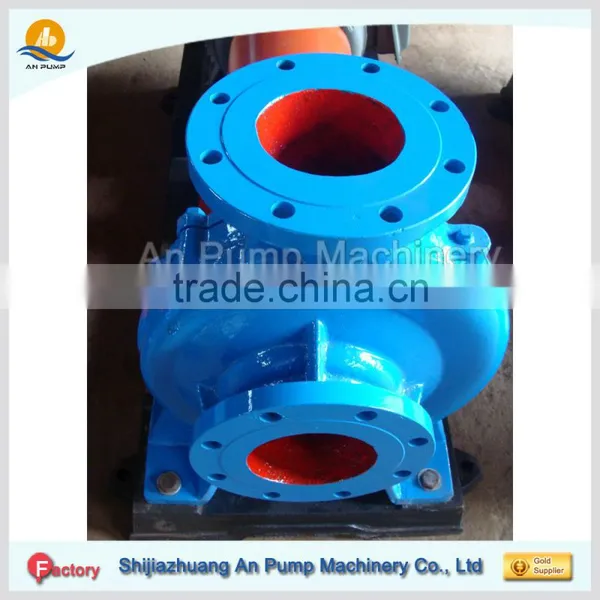

QI End Suction chemical sulfuric acid resistant pump
QIH series chemical sulfuric acid resistant pump is suitable for conveying clean or containing a small amount of particles, low temperature or high temperature liquid. Suitable for conveying neutral or corrosive liquid, including a variety of temperature and concentration of sodium hydroxide and sodium carbonate and other alkaline solution, all kinds of salt solution, all kinds of acid solution and soultion, all kinds of liquid petrochemical products, organic compounds and other corrosive material and products.
QIH series chemical sulfuric acid resistant pump is mainly used in oil refineries, petrochemical industry, coal processing industry and cryogenic engineering, paper industry, the suger industry, and seawater desalination project, etc.
QIH model chemical sulfuric acid resistant pump is single-stage end-suction(axial suction) cantilever type centrifugal pump, which is used to transport corrosive liquid with viscosity similar to water and without solid particles. The marked and rated performances and dimensions adopt ISO2858 international standard.
It has such characteristics as wide range of performance, high efficiency, high mechanical, chemical and physical level and convenient maintenance etc. It is energy saving type product recommended by the nation with its efficiency being 5% greater than that of other similar model pump.

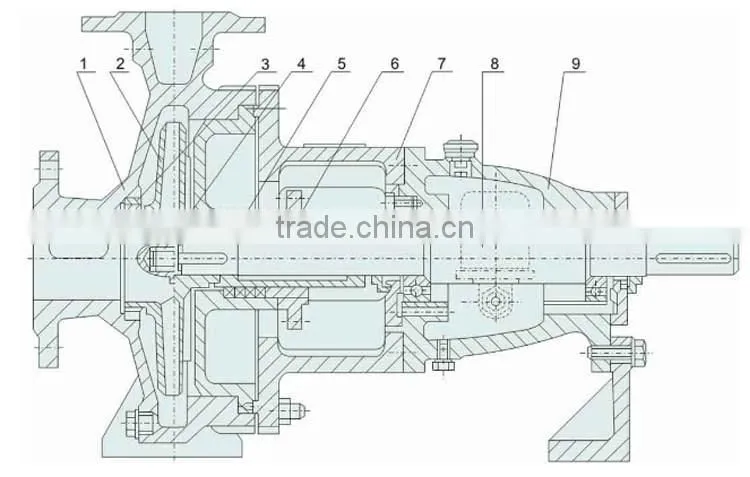

chemical sulfuric acid resistant pump structure
1 |
Pump casing |
4 |
Impeller nut |
7 |
Mid bracket |
2 |
Impeller |
5 |
Pump cover |
8 |
Shaft |
3 |
Seal ring |
6 |
Seal part |
9 |
Hanging stand |
The temperature of transported media of QIH model pump is -20 ~105 °c. Through adopting cooling method, it can transport media with higher temperature if necessary, and is applied to transport various corrosive media or media in which pollution is forbidden similar to water in such industries as chemical industry, petroleum, metallurgy , electric power, paper making, food, pharmacy and synthetic fiber etc.
More detailed information of chemical sulfuric acid resistant pump:

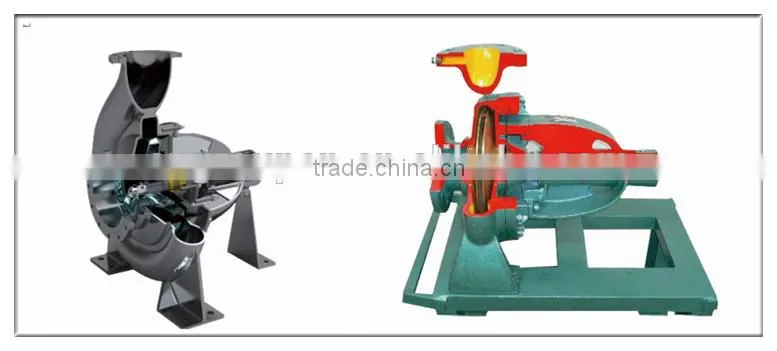

Structural features: the pump cover is fixed on the intermediate support, and the pump cover is clamped in the middle by coupling between pump body and intermediate support. On the pump body, water is input axially and output radially. Support feet can be fixed on t he bas e directly. The suspended parts are fixed onto the intermediate support through the rabbet, and are supported onto the base by suspended frame.
Type |
Flow |
Head |
Power |
QI50 |
3.4-15 |
3.7-68.8 |
0.55-11 |
QI65 |
6.8-30 |
3.7-126.8 |
0.55-30 |
QI80 |
13.6-60 |
3.6-128 |
0.55-45 |
QI100 |
27.3-120 |
3.4-115.5 |
1.5-75 |
QI125 |
56-240 |
8.5-132.5 |
2.2-110 |
QI150 |
99-240 |
12.4-57.5 |
15-55 |
QI200 |
197.7-460 |
14.8-55.8 |
30-90 |
Spindle seal patterns: spindle seal patterns of pump are of two types such as stuffing seal and mechanical seal. The stuffing seal is that on stuffing casein pump cover, with software stuffing for sealing, input water of a certain pressure into the stuffing case, for cooling, lubrication and cleaning on seal; mechanical seal is of two types such as single-surface mechanical seal and double-surface mechanical seal, input water of a certain pressure into the seal chamber, for washing and cooling on the abrased surfaces.
Rotation direction: the pump is driven by motor directly through a prolonged coupling, seen from the side of the motor, it rotates clockwise.
Seal patterns of pump are of stuffing seal or mechanical seal, according to users' requirements, in a same time, seal chamber sizes and shaft gland patterns of other structures according to ISO3069 as required, are allowed, such as mechanical seals of corrugated pipes, assistant impeller seals and so on.
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly
engaged in pump designing, manufacturing, selling and service. We develop the international trading business
of mining equipment, slurry pumps, and water pumps according the wide customer resource, comprehensive
technology and reasonable staffing.
An pump machinery’s main products includes: slurry pump, desulfurization pump, gravel pump, mud pump,
sewage pump, submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump,
high head multistage water pump,end suction pump, self priming pump, pump parts and ancillary equipment.
which can satisfy different kinds of demands.
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
24x7 service for your Chemical Sulfuric acid resistant pump:
Roger Chen
P: +86 311 899 40549
F: +86 311 862 71170
Office C: +86 150 3285 7866
Personal C: +86 137 805 12387
Wechat /whatsapp: +86 137 805 12387
Skype: chenroger1215
Email: roger at
Email: pump at
(Please put "@" to "at" when you send the email)
