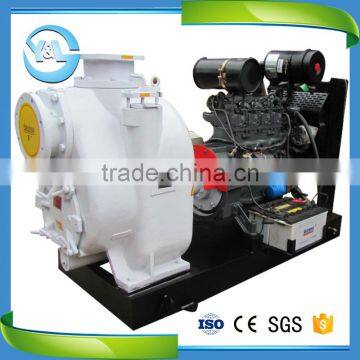

Self Priming Diesel Engine Centrifugal Pump
1. Specification of our water pump
Model | Size (inch) | R.P.M. (r/min) | Max. Flow (m3/h) | Max. Head (m) | Suction Lift (m) | Power (hp) | Max. Solids (mm) | Gross Weight (kg) |
JT-2 | 2 | 1150-2900 | 46 | 36 | 7.6 | 1-10 | 44.45 | 114 |
JT-3 | 3 | 650-2150 | 107 | 35 | 7.6 | 1-20 | 63.5 | 205 |
JT-4 | 4 | 650-1950 | 163 | 36 | 7.6 | 1-30 | 76.2 | 280 |
JT-6 | 6 | 650-1550 | 330 | 33 | 7.6 | 2-40 | 76.2 | 391 |
JT-8 | 8 | 650-1350 | 600 | 34 | 7 | 7.5-75 | 76.2 | 634 |
JT-10 | 10 | 650-1450 | 775 | 40 | 6.7 | 10-100 | 76.2 | 663 |
JT-12 | 12 | 650-1250 | 1275 | 42 | 4.9 | 20-125 | 50 | 1066 |
JU-3 | 3 | 850-2150 | 85 | 62 | 7.6 | 1.5-25 | 20.63 | 225 |
JU-4 | 4 | 850-2150 | 148 | 60 | 5.2 | 3-40 | 28.57 | 297 |
JU-6 | 6 | 850-1950 | 308 | 58 | 4.5 | 5-75 | 31.75 | 437 |

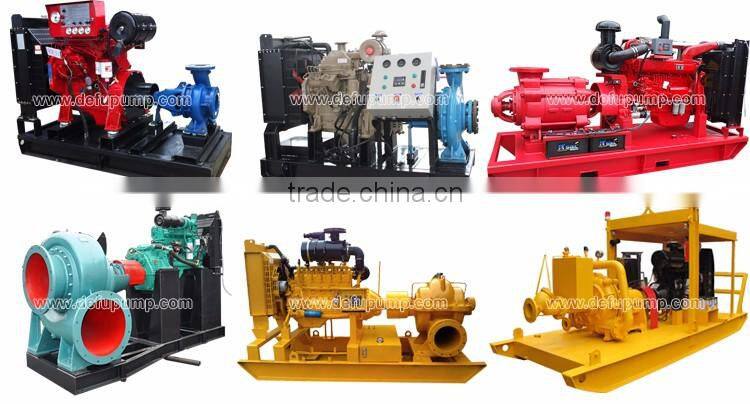

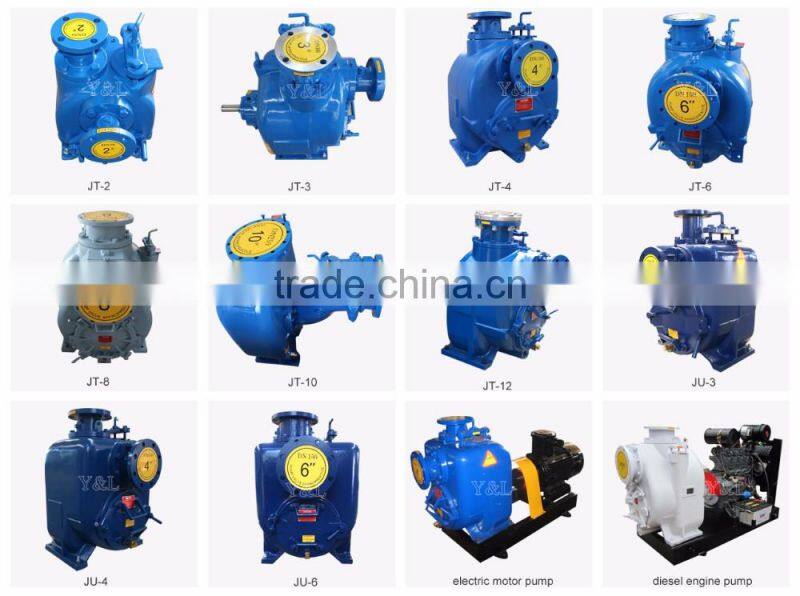

2. Pictures of self prining pump
3. Introduction of our water pump
JT&JU series self priming centrifugal sewage pump is a kind of specialized sewage disposal equipment, designed with super strong anti-clogging and impurity disposal capability. It can be used to dispose ultra long fiber impurities and more than 3 inch solids. In addition, because of it's self priming function and high suction lift performance, our water pump can transfer water from river or well. Therefore, This pump can be used as agriculture irrigation pump, dewatering pump,fire fighting pump and other pump.
4. Application of Diesel Engine Driven Pump

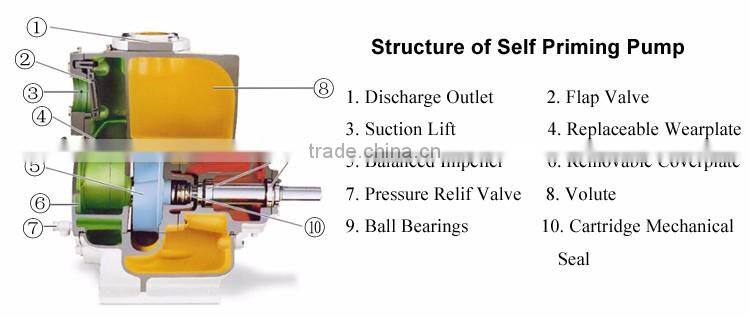

5. Features of Self Priming Pump6. Structure of pump

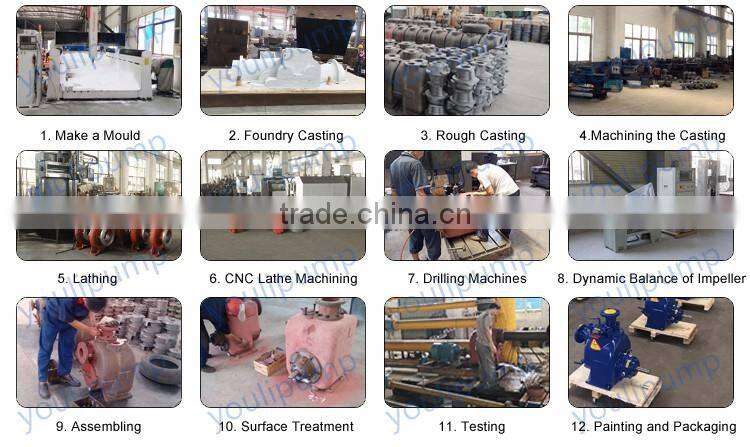

7. Manufacturing Process
