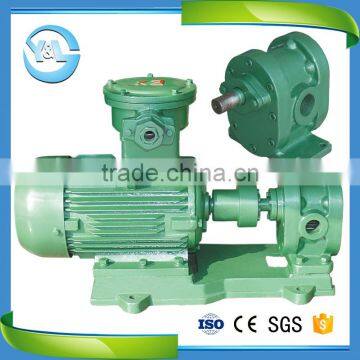

High Temperature Electric Gear Oil Pump for Sale

High temperature electric gear oil pump for sale

1. Description

The KCB series gear oil pumps possess the advantages of simple and compact structure, easy operation and simple maintenance. The KCB Series gear oil pumps are suitable for transporting various oils such as petroleum, diesel and lubricant oils.  They are widely used in oil reservoirs, piers, ships, mining sites, factories and farms.

2. Features

• Pump has the advantages of single and compact structure and convenient operation and maintenance
• Pump has the good self-priming performance.So pump need not pour liquid when pump starts.
• Lubricant of pump is automatic by transported liquid so in every day work pump need not add lubrication
• Flexible couple driver can setter little tolerance for installation. It can relax impact of liquid pressure when pump works.

3. Model Meaning

KCB-200

K means with safety valve

CB means gear pump

200 means the capacity is 200l/min

4. Range of Parameter

Size: 3/4-6 inch

Max. Capacity: 2500l/min

Max. Pressure: 1.45mpa

5. Application

The pump is suitable to transport various lubrication liquid at temperature not higher than 70℃. If temperature is up to 200℃,anti-high temperature material will be matched.Its viscosity is 5*10-5-15*10-3m2/s.

The pump is not suitable to transport liquid such as corrosive or containing hard grain or fiber high volatile or low flash point for example gasoline,benzene.(Pump can transport gasoline if copper gear is adopted, and pump can transport ordinary corrosive liquid if stainless steel material is adopted.)

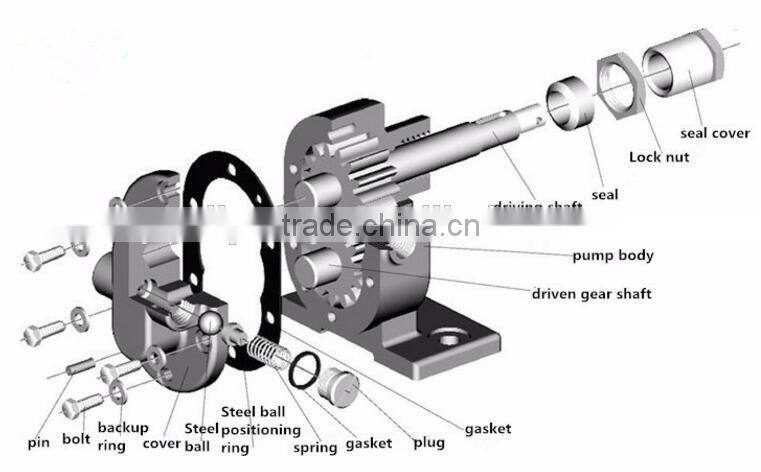

6. Principle Parts List and Material Identification

(1). Model: KCB-18.3-83.3

(2). Model: KCB-300-960
