Sand Water Filter and Water Treatment
US$ 800 - 3,890
MOQ: 1 Strand
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
AIGER
Model Number:
A-S
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin&Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Water Treatment Machine(Quartz Sand Filter)NegotiableMOQ: 1 Strand -
Mechanical Sand Water FilterNegotiableMOQ: 1 Strand
-
Quartz Sand Filter For Water PurificationNegotiableMOQ: 1 Strand
-
Manufacturer Selling Quartz Sand Filter PriceNegotiableMOQ: 1 Strand
-
Manufacturer Selling Quartz Sand Filter PriceNegotiableMOQ: 1 Strand
Place of Origin
Beijing, China
Brand Name
AIGER
Model Number
A-S
Product Description

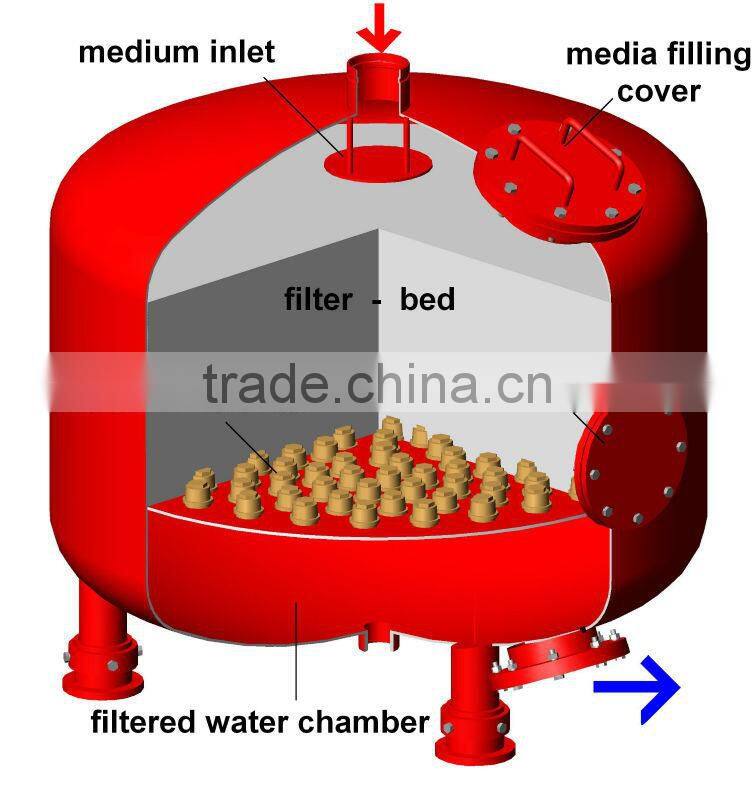

A-S series Sand Filter using quartz sand as filter media in a filter with high efficiency, can effectively remove the suspended substance in water, microorganisms, and other fine as to reduce water turbidity, water purification effect.The system is the automatic system, if without artificial operation, the system will automatically backwashing once every 24H (backwash interval reference number can be based on user conditions to change)
Technical Parameters
- Single filter water flow: 50m³/h
- Pressure rating: 0.25Mpa~2.5Mpa
- Working temperature range: 0 ~ 65 °C
- Effluent turbidity:less-than three
- Inlet and outlet Connection: flange
- Backwash water: for total filtered water 1 to 3%
- Control mode: pressure control; PLC timing control
- Sewage way: automatic
- Rated operation voltage: 220V, 50HZ, 1e-phase
Model&Specification
| Model | D(mm) |
D1(mm) |
H(mm) |
H1(mm) |
Weight(Kg) |
Filter area
(m2)
|
Backwash flow (m³/h) |
S605 |
300 |
37.5 |
116.5 |
150 |
42 |
0.07 |
2-5.6 |
S610 |
400 |
50 |
1105 |
180 |
45 |
0.12 |
4-9.6 |
S620 |
500 |
25-75 |
1210 |
180 |
47 |
0.2 |
8-16 |
S635 |
625 |
50-100 |
1200 |
180 |
58 |
0.3 |
12-24 |
S640 |
750 |
50-100 |
1070 |
300 |
125 |
0.44 |
17-35 |
S650 |
900 |
50-100 |
1110 |
300 |
197 |
0.63 |
25-50 |
S660 |
1200 |
50-100 |
1110 |
300 |
290 |
1.13 |
45-90 |
Detailed Images

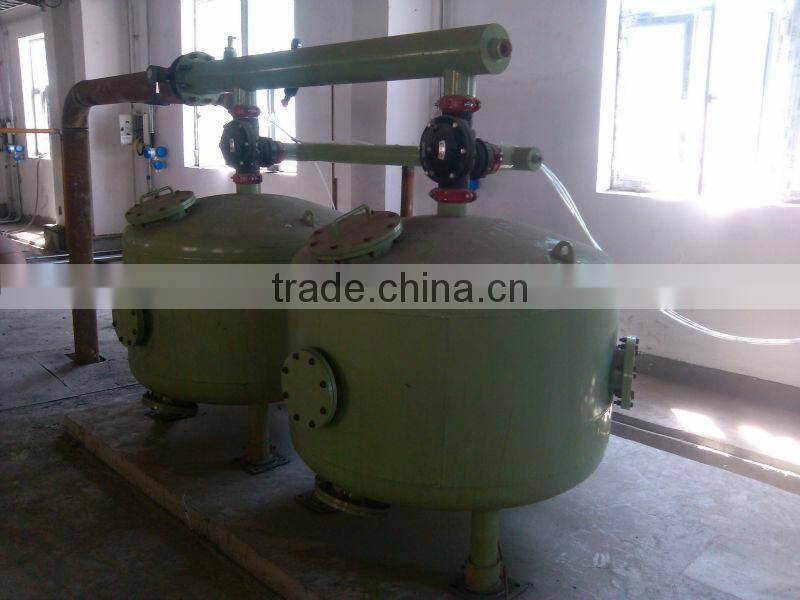

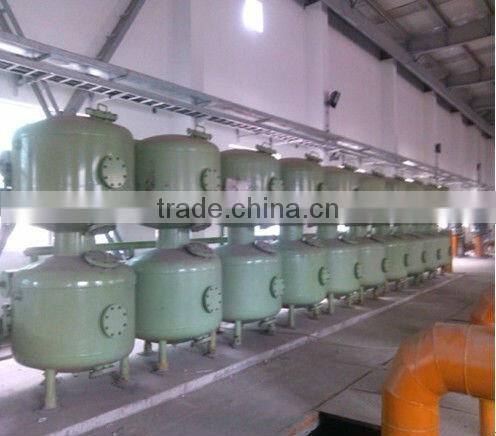

Product Uses On Site
