Industrial Sand Filter for Water Treatment Process
Negotiable
MOQ: 1 Strand (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
AIGER
Model Number:
A-S
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin&Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Beijing, China
Brand Name
AIGER
Model Number
A-S
Specifications
1.Min. Order:1 Pieces2.FOB Price:US $3925-5495/Piece
3.Payment Terms: L/C,T/T
4.Supply Ability: 5000 Piece/Pieces per year
Product Description
A-S series Sand Filter using quartz sand as filter media with high efficiency, it can effectively remove the suspended substance, microorganisms, and other fine particles in water, so as to reduce water turbidity, increase water purification effect.This is the automatic system, if without artificial operation, it will automatically backwashing once every 24H.
AIGER sand filter is consisted of filter body and a control system. The filter body generally consists of the filter tank, automatic valves, pipeline, filter media etc. Control system usually consists of PLC timing controller, DPcontroller, and electromagnetic three-way valve.
Technical Parameters
- Single filter water flow:2~50m³/h
- Pressure rating: 0.25Mpa~2.5Mpa
- Working temperature range: 0 ~ 65 °C
- Effluent turbidity:less-than three
- Inlet and outlet Connection: flange
- Backwash water: for total filtered water 1 to 3%
- Control mode: pressure control; PLC timing control
- Sewage way: automatic
- Rated operation voltage: 220V, 50HZ, 1-phase
Model&Specification
Detailed Images

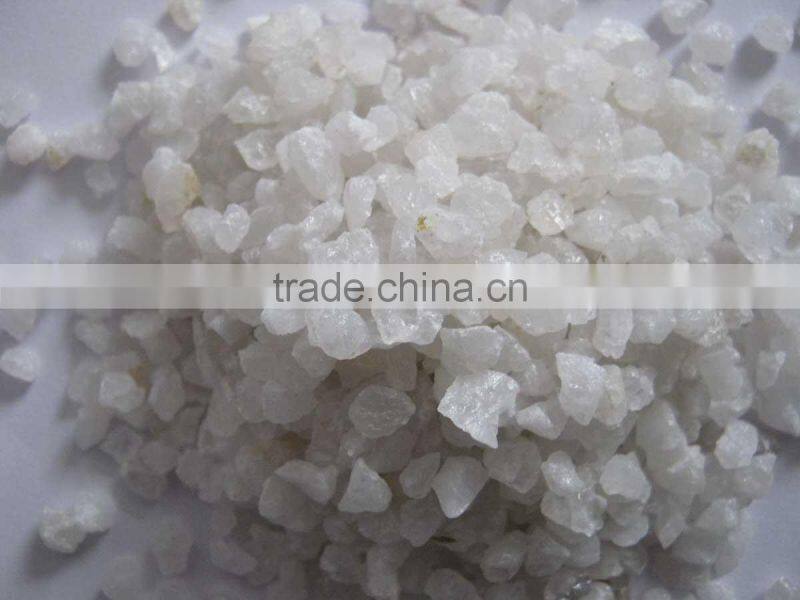

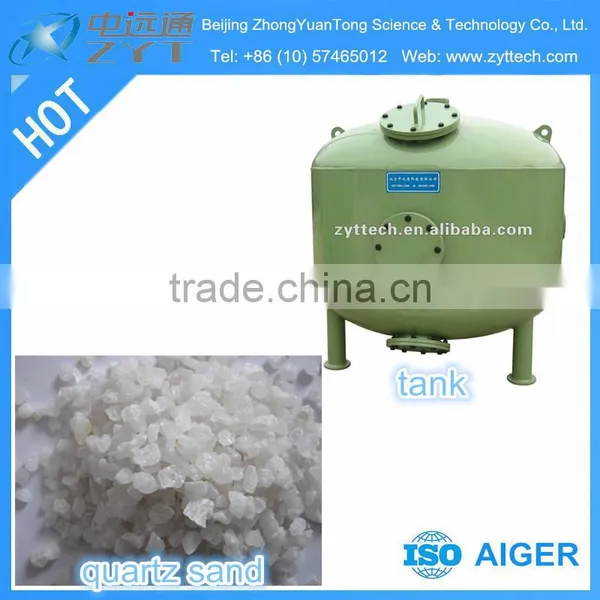

Quartz Sand
Working Principle
Product Uses On Site
