Specifications
1.Voltage: Three-phase 380V/50HZ2.Air pressure: filtered air or nitrogen less or equal to 0.6Mpa
3.Equipment Size: According
Equipment overview
The ZYT billet marking machine, which is the automatic billet marking equipment widely used in iron and steel enterprises at present , it is generally through the host computer or local industrial machine for continuous casting billet of setting identification code, through the PLC control driver of marking machine positioning device and automatic device, achieved by the use of impact cylinder, the billet identification code accurately and clearly identified in hot casting billet or side.The system has complete functions, friendly man-machine interface, stable and reliable performance.It's the first choice of Iron and steel enterprises to realize the automation of continuous casting billet marking device. Equipment composition
Constituted by the seven components: body mechanical systems, running gear, sliding bodies, elevator, marking electronic control gas agencies and regulators, software, operating control.
Equipment type
ZYT-DHJ-S200-D / L D-floor type; L-door beam
System parameter
- Voltage: Three-phase 380V/50HZ
- Air pressure: filtered air or nitrogen ≤ 0.6Mpa
- Equipment Size: According to the site
- Billet temperature: ≥ 400 °C
- Billet section: flatness tolerance <0.5mm, section slope <1 °
- Height adjustment: according to the actual needs of design (gate beam)

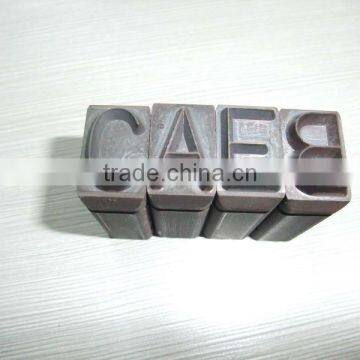

- Content characters: the digits 0 to 9, letters
- Character height: 8 ~ 25mm (optional)
- Print speed: 1.2 ~ 1.5s / characters
- Impact frequency: 40 ~ 50 times / min
- Sliding speed: <0.3s / characters
- Servo drive: with a high temperature resistant, low speed, high torque motor
- Turntable speed: <0.3s / characters
- Sliding accuracy: error <0.5mm
- Landing accuracy: error <1mm
- Print Depth: 1 ~ 3mm
- Communication: standard industrial Ethernet, CANopen and PROFIBUS variety of communication
- Gas consumption: ≤ 100N m3 / h
- Modes of operation: computer / remote / manual operation. switch , operation control system can easily Connection with Level 2 system of users.
- P L C: SIMENS S7 ~ 300 type
- Distance from prefix to the billet end: 75mm ~ 100mm
Marking effect chart
Working site
Production workshop
