Professional Infrared Self Cut System

Specifications

 Working principle

The equipment uses dynamic image recognition technology, detects and displays the operation status of hot billet online. Through the camera next to roller collect images into computer, through acceleration module for analog video signal processing and A/D conversion into digital signal. The characteristics of image acquisition to achieve real-time, video input, stereo vision image sequence analysis, moving image display, camera synchronous switching, image processing and video signal synchronization, completely real time transmission and processing effect, meet the technical requirements of the complex. Automatic control device cuts equipment and issues a instructions: pre clamping clampingcutting control signal and so on.

Technical parameters and specifications

1.Casting machine flow number        5 strands

2.Casting billet cutting temperature    ≥600°C

3.Length range                                   7m-9m

4.Casting blank section                     200mm*200mm

5. Roller strand space                       1250m

6.Casting speed                                0.8-1.2m/m

Equipment installation

Signal output method: Signal is electric relay switch, each strand has a cut signal, amount to 5 signals. The system presets clamping signal, and it can be used according to the scene.

 Working environment:

 (1)  System and the camera normal working temperature: ≤ 70 °C.

 (2)  Medium energy: ~ 220V power supply.

 (3)  Typical camera installation requirements: monitoring the scope of the camera is no obstacle

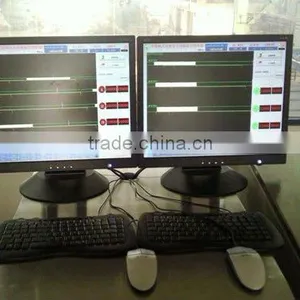

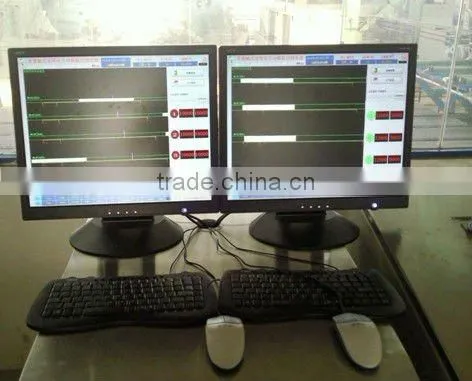

Software interface

The camera installation position

Cutting effect
