Casting Billet Marking Machine

Specifications

Equipment overview

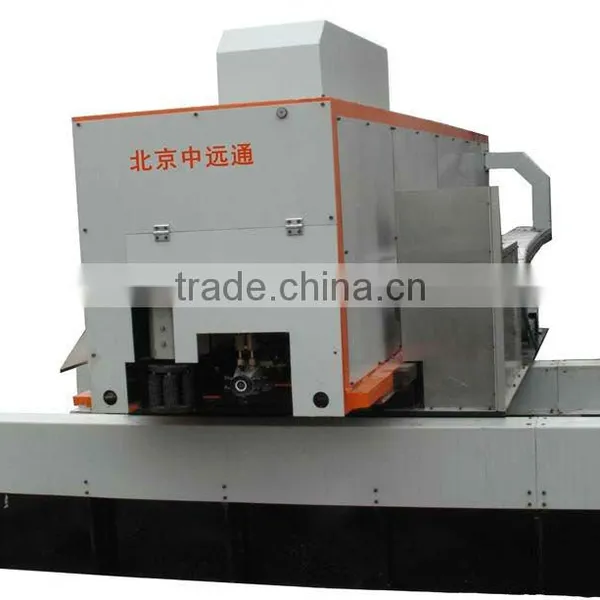

ZYT is the use of the impact of the cylinder, identifies the data code in the end or side of the hot slab , the performance is stable and reliable.

Equipment composition

Constituted by the seven components: body mechanical systems, running gear, sliding bodies, elevator, marking electronic control gas agencies and regulators, software, operating control

Equipment type

ZYT-DHJ-S200-D / L D-floor type; L-door beam

System parameter

1. Voltage: Three-phase 380V/50HZ
2. Air pressure: filtered air or nitrogen ≤ 0.6Mpa
3. Equipment Size: According to the site
4. Billet temperature: ≥ 400 °C
5. Billet section: flatness tolerance <0.5mm, section slope <1 °
6. Height adjustment: according to the actual needs of design (gate beam)
7. Content characters: the digits 0 to 9, letters
8. Character height: 8 ~ 25mm (optional)
9. Print speed: 1.2 ~ 1.5s / characters

10.  Impact frequency: 40 ~ 50 times / min

11.  Sliding speed: <0.3s / characters

12.  Servo drive: with a high temperature resistant, low speed, high torque motor

13.  Turntable speed: <0.3s / characters

14.  Sliding accuracy: error <0.5mm

15.  Landing accuracy: error <1mm

16.  Print Depth: 1 ~ 3mm

17.  Communication: standard industrial Ethernet, CANopen and PROFIBUS variety of communication

18.  Gas consumption: ≤ 100N m3 / h

19.  Modes of operation: computer / remote / manual operation. switch , operation control system can easily Connection with  Level 2 system of  users.

20.  P L C: SIMENS S7 ~ 300 type

21.  Distance from prefix to the billet end: 75mm ~ 100mm
