1.General:

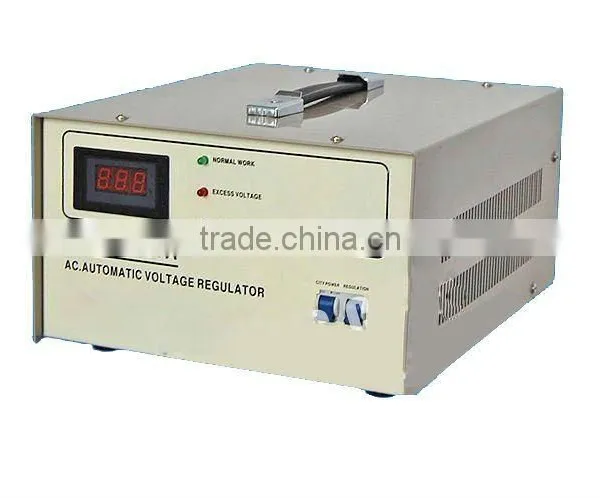

SVC-S (super – thin type) series single-phase voltage stabilizer is developed on the basis of SVC,it has excellent performance and smart sppearance,is a first-class product that is very thin and portable.
2.Application
For office equipment,test equipment,medical equipment,industrial equipment,household appliance,lighting system,commucation system,etc.
3.Performance
Input voltage |
Single-phase 160V-250V |
Delay time |
Long 5min-+2min,shorts5s-+2s |
Output voltage |
Single-phase 220V and 110V |
Ambient temperature |
-5°C -- 40°C |
|
Accuracy of voltgae stabilization |
220V±3% and 110V±6% |
Relation humidity |
90% |
Waveform distortion |
No additional waveform distortion |
||
Frequency |
50Hz/60Hz |
Load power factor |
0.8 |
Adjustable Time |
more than 1s(when input voltage has a change of 105) |
Dielectric strength |
1500V/1 min |
Over-voltage protection |
246V±4V |
Insulation resistance |
2M |
Efficiency |
more than 90% |
4.Model and spec:
Spec.(KVA) |
Products size D×W×H(CM) |
PackageD×W×H(CM) |
Weight(KG) |
Qty |
SVC-S 0.5 |
26×19×8 |
48×32×38 |
3.7 |
6 |
SVC-S 1 |
27×21×9 |
51×33×29 |
5.7 |
4 |
SVC-S 1.5 |
27×21×9 |
51×33×29 |
6 |
4 |
SVC-S 2 |
32×26×16 |
36×31×21 |
10.5 |
1 |
SVC-S 3 |
32×26×16 |
36×31×21 |
13 |
1 |
SVC-S 5 |
43×38×16 |
50×46×23 |
23 |
1 |
