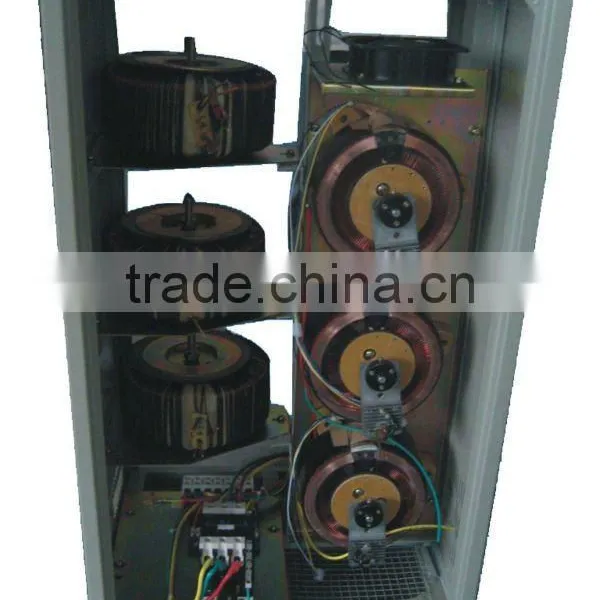

Help CenterThree Phasae Full Automatic Compenated Voltage Stablizer SBW-3-20KVA
Related Products
-
High Accuracy Full Automatic Stabilizer(AVR) SVC-10kVAUS$ 103 - 110MOQ: 1 Piece -
Single Phase High Accuracy Full-Automatic AC Voltage Stabilizer SVC-30KVAUS$ 12 - 105MOQ: 1 Piece
-
Three Phase Full Compensate Automatic Voltage StabilizerUS$ 133.5 - 143.5MOQ: 1 Piece
-
Single Phase Full Automatic AC Voltage Regulator SVC-60KVAUS$ 103 - 110MOQ: 1 Piece
-
Stabilizer(AVR),voltage Regulator SVC-60kVAUS$ 545 - 620MOQ: 1 Piece
SVC-3-1.5K,3K,6K,9K,15K,20K,30K,45K,60K,80K
1.General:
SVC-3P input phase system is a 3-phase and 4-wire system. The output voltage is 220V
of phase and 380V of line voltage. Within the rated capacity range, they also can be used for
the equipment of which the source voltage is 1-phase 220V or 3-phase 380V.
2.Parameters:
Input voltage: 277V-430V (3PHASE)
Output voltage: 380V (wire voltage)
Stabilization accuracy: 380V±3%
Frequency: 50Hz/60Hz
Debug time: ≤1s (with input voltage variation of 10%)
Overload power factor: 0.8
Efficiency: ≥90%
Dielectric strength: 1,500V/min
Voltage over voltage: 246±4V
Ambient temperature: -10±40°C
Relative Humidity: ≤95%
Temperature rise: lower than 60°C
Wave form distortion: no additional waveform distortion
Insulation resistance:≥2MΩ
