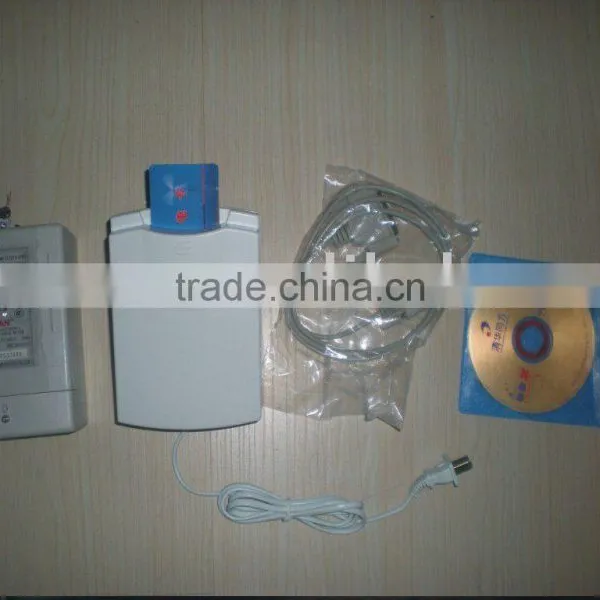

Prepaid Type Energy With Controller,soft Disk
US$ 12.2 - 15
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
chjan,house,qianjiang
Model Number:
DDSY480
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/WENZHOU/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Three Phase Russia Type Electronic Kwh MeterUS$ 15 - 30MOQ: 1 Piece -
Three Phase Energy Meter,KWH METER DT862US$ 7 - 8MOQ: 100 Pieces
-
Single Phase KWH Meter Energy Meater DD28US$ 2.5 - 6.5MOQ: 100 Pieces
-
Singe Phase DDS480 Electronic MeterUS$ 1 - 1.5MOQ: 1 Piece
-
Three Phase Multi-rate Electronic Meter DTSFUS$ 3 - 15MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
chjan,house,qianjiang
Model Number
DDSY480
Display Type
Analog and Digital
Phase
Single Phase
Measuring Energy Range
1-100A
Accuracy Class
2.0,1.0,0.5
Output Voltage
220V or 110V
Operating Temperature
-10 TO + 50 C
Dimensions
18*12*8cm
1.Brief Introduction
DDSY480 series electronic energy meter used for 50Hz or 60Hz active metering power,installed indoor or in outdoor meter box.its temperature is between -100C to +500C, relative humidity is not exceed 85%, and there is not putrid gas, in the same time,it should avoid the effect of dust sands,salt folk,
dew,etc.
2.specification:
Model |
Accuracy |
Rated current |
Display mode |
Interface mode |
|
DDSY480 |
1,2 |
2.5(10)A |
LED
LCD |
Pulse |
1,2 |
5(20)A |
|||
1,2 |
10(40)A 15(60)A 30(100)A |
Basic error
Load current |
Power factor |
Basic error(%) |
|
Class 1.0 |
Class 2.0 |
||
0.05Ib |
1.0 |
±1.5 |
±2.5 |
0.1Ib-Imax |
1.0 |
±1.0 |
±2.0 |
0.1Ib |
0.5L 0.8C |
±1.5 |
±2.5 |
0.2Ib-Imax |
0.5L 0.8C |
±1.0 |
±2.0 |
Note:Ib is rated current,Imax is rated max. current.
3.Function & Advantage:
- Protect from power theft,recording unlegal user's information automatically.(This function can prevent other device from using "phantom power")
- Once the remaining electric power quality is approaching the alarming power quality,the digital tube should be lighted to remind user of timely purchasing.
- Once the electric consumption available run out,it shoud be auto cut-off
- Data-copying function make the electricity department easier manage. (homeowner can easy to read how much power they have used at any time.)
- Auto-cut-off for overload
- Ther meter has the feature of long-using-life,high-reliable.
- The IC card power selling control system has the function as power selling and using control.
- Expansible RS485
