PET STRAPPING TAPE MAKING MACHINE
- SPECIFICATION OF PET STRAP MACHINE
No. | Item | Specification |
1 | Power | 380v/3P/50Hz |
2 | Material | PET |
3 | Extruding capacity | 100/200/400kg/hr |
4 | Product specification | width 9-32mm. thickness 0.35-1.2mm |
5 | Speed | max.120m/min |
6 | Mid-height of extruder | 1000 mm |
7 | Control Direction | from left to right |
8 | Total power | 215/285/352kw |
9 | Humidity | <85% |
10 | Temperature | 0-40°C |
11 | Cooling cycling water | <20°C >0.3Mpa ~30T/h |
12 | Compressed air | 0.4m³/min>0.5MPa |
13 | Overall dimension | 36m×6m×4.5m |

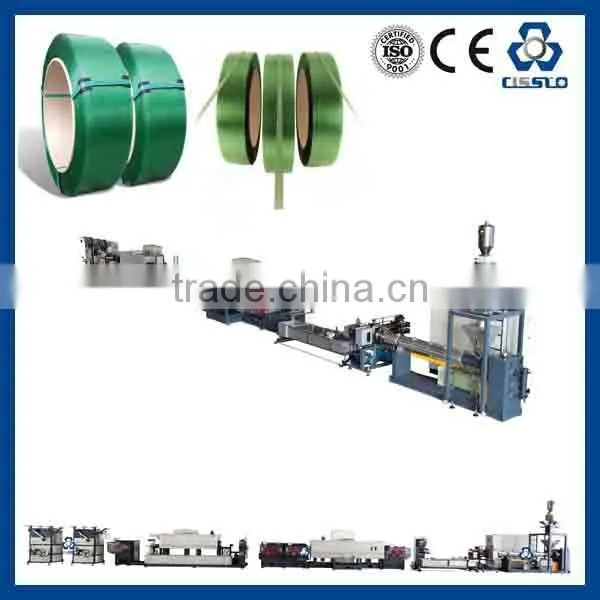

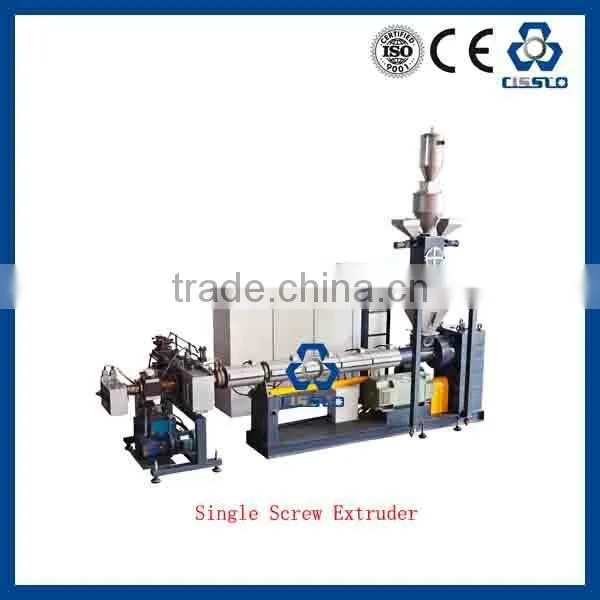

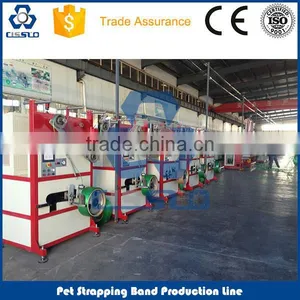

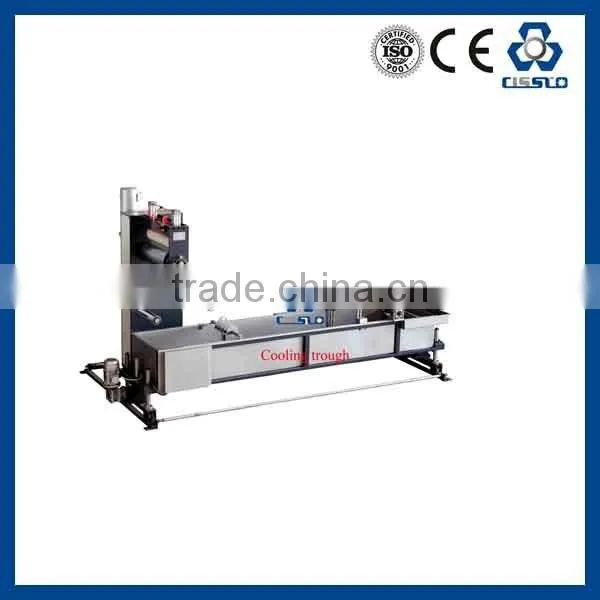

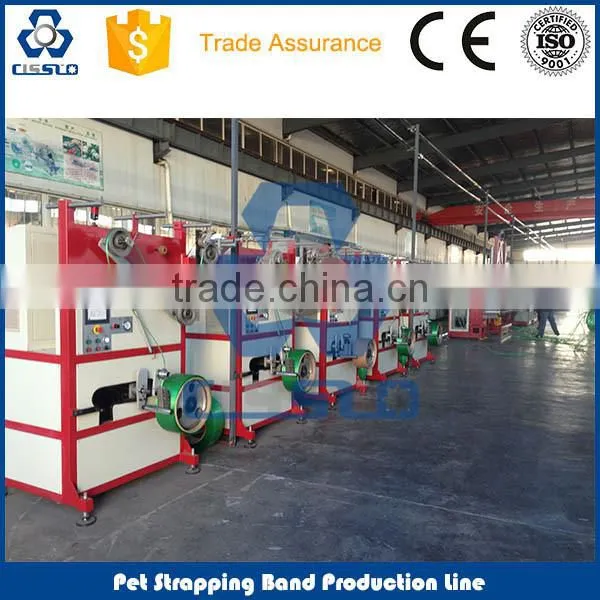

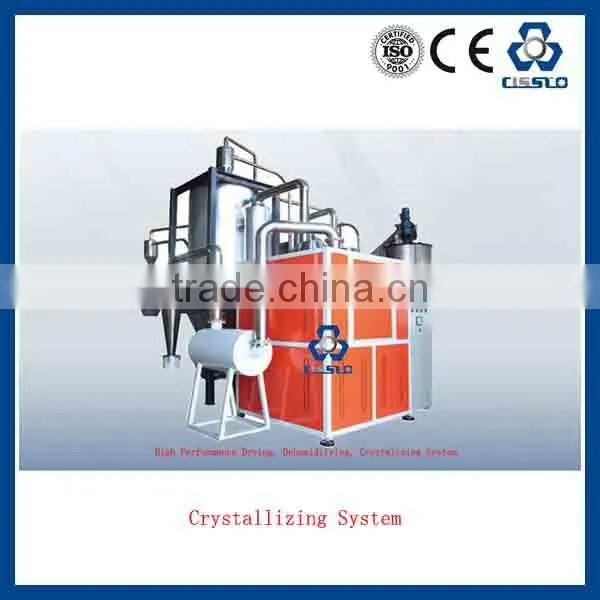

- PICTURES OF PET STRAP MACHINE (Main Parts)
1. For PP(polypropylene) strapping band extrusion line
- What about the output of PP strapping band extrusion line? 100kg/hr, 150kg/hr and 280kg/hr.
- What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm;
- What about the installation power of the PP strap machine? 135kw/155kw/195kw;
- What about the maximum tensile strength of the strap? 6000N (25*1.0mm);
- What about the camber of strap? <20mm/2m;
- What about the usage of PP strap? Packing boxes, money, paper;
- Will the strap be used for automatic strapping tool or manual tool? Both.
2. For PET(polyester) strapping band extrusion line
- What about the output of PET strapping band extrusion line? 100kg/hr, 200kg/hr and 400kg/hr.
- What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
- What about the installation power of the PET strap machine? 215kw/285kw/352kw;
- What about the maximum tensile strength of the strap? 12000N (32*1.2mm);
- What about the camber of strap? <20mm/2m;
- What about the usage of PET strap? Packing cotton, aluminum, wood, brick, boxes;
- Will the strap be used for automatic strapping tool or manual tool? Both.
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUSION MACHINERY for more than 20 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
For PET (Polyester) or PP (Polypropylene) strapping band production line, we have the samilary design, process and technology as Italy company. Comparing with the low price low quality machine, please note our strong advantages:
1. 20 Years Experiences;
2. Italy Technology;

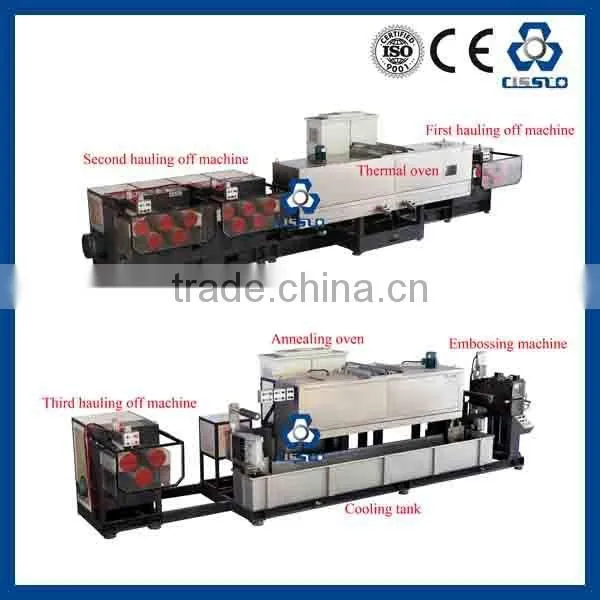

3. High Efficiency Oven Heating and Annealing system;
4. MAAG melt pump--Switzerland;

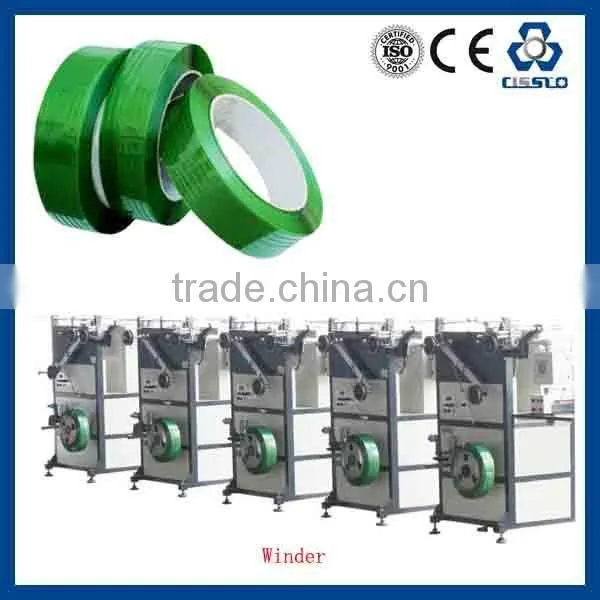

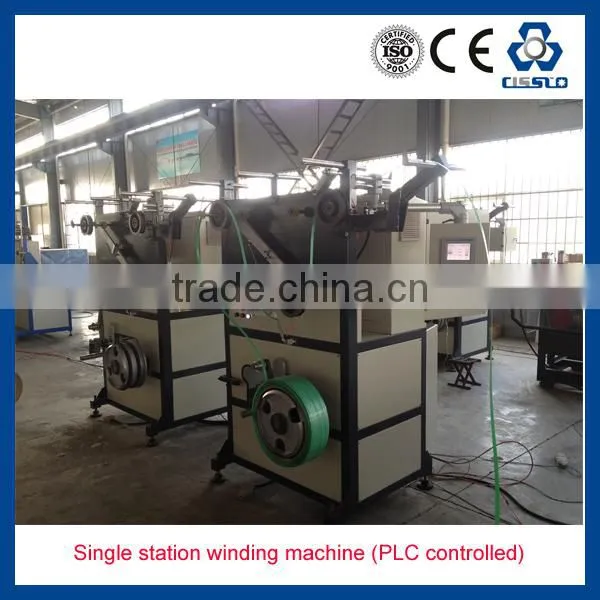

5. PLC Controlled Low-Camber Constant-tension Winder;

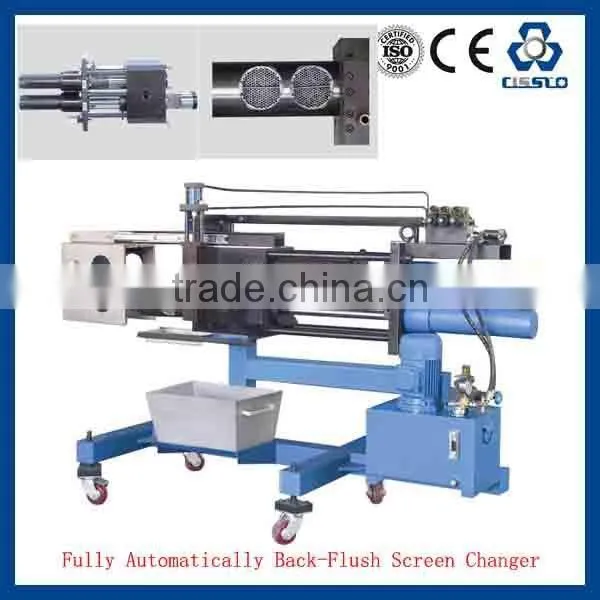

6. Fully Automatic No-Stop Back-Flush Screen Changer;
7. Easy to Operate, Stable Performance, Good Quality Straps, Low Production Cost;
8. Quicker Production Speed, Big Output;
9. Good Material and Well-Known Brand Electrical Parts;
10. Beautiful Appearance;
11. Free Training for Technical Process, Formula and Know-How;
12. Full Time and High Level After-Sale Services.
