CE STANDARD NYLON (PA, PA6, PA66) MONOFILAMENT EXTRUSION LINE
1. OVERVIEW OF CE STANDARD NYLON (PA, PA6, PA66) MONOFILAMENT EXTRUSION LINE
We have full experience in monofilament machine supplying. According to about 20 years experiences in this field, we have many many monofilament machines are in good production in all over the world.
Our monofilament machine can use virgin resin or recycled flakes of PP, PET as material to get very monofilament of good quality.
Monofilament can be used to make brush, broom, fishnet, zipper, string instrument.
2. CONFIGURATION OF CE STANDARD NYLON (PA, PA6, PA66) MONOFILAMENT EXTRUSION LINE
No. | Part Name | Qty. | Introduction of Main Parts |
1 | Extruder | 1set | 1. Raw material: PET virgin or bottle flakes 2. Frequency conversion control speed. 3. Hard tooth surface gear motor: Jiangsu changzhou. 4. Screw and cylinder: Made in Zhejiang Zhoushan. 5. Material of screw heating: Al Casting. |

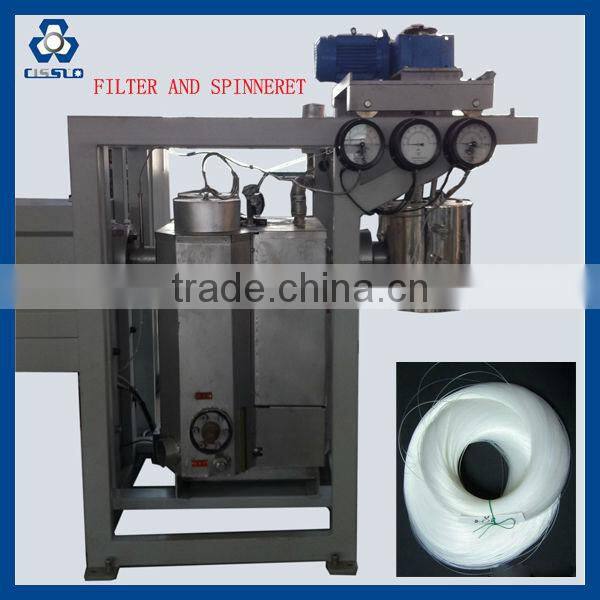

2 | Spinning die | 1pc | 1. Heating method of die head: oil heating. 2. Material of spinneret: SUS316. 3. Frequency conversion control speed, cycloidal pinwheel reducer.
|

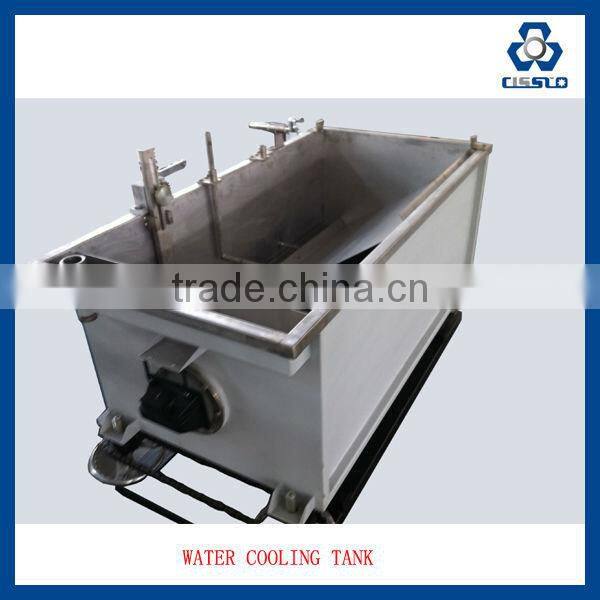

3 | Cooling water tank | 1set | 1. Yarn separate pole is movable. 2. Material of box: stainless steel. |
4 | Seven roller Stretching A | 1set | 1. Frequency conversion control speed. Frequency conversion motor. 2. Steel structure of box, gear transmission, running balance. 3. In front, one rubber roller and stainless steel separate pole.
|

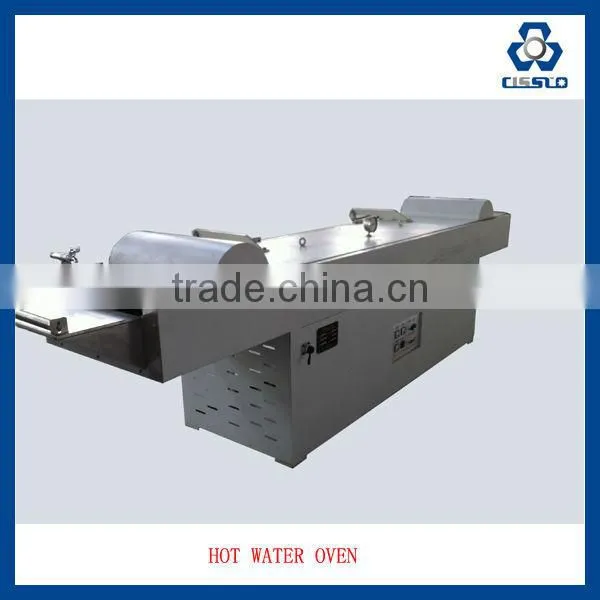

5 | Hot water tank | 1set | 1. Material is stainless steel with heat preservation, and cover is opened by gas 2. Heating method :electrical heating 3.Equip water recycling pump |
6 | Seven roller Stretching B | 1set | 1. Frequency conversion control speed Frequency conversion motor 2. Steel structure of box, gear transmission, running balance. 3. In front, one rubber roller and stainless steel separate pole
|

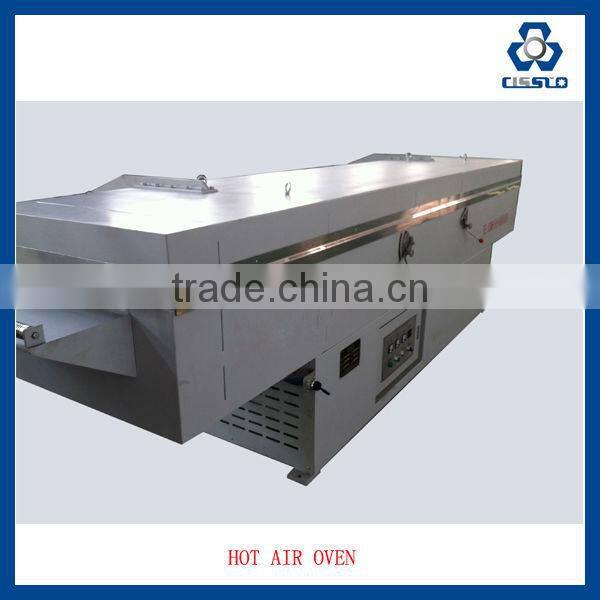

7 | Hot blast stretching recycled oven | 1set | 1. Single layer recycled hot blast oven 2. Equip wind power control 3. Hot blast path especial design make them equality 4. Frequency control of motor speed |
8 | Seven roller Stretching C | 1set | 1. Frequency conversion control speed Frequency conversion motor 2. Steel structure of box, gear transmission, running balance. 3. In front and back, each with one rubber roller and stainless steel separate pole.
|

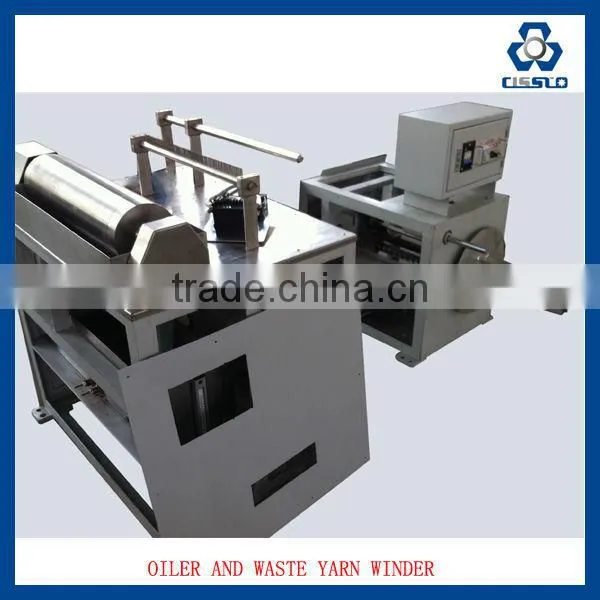

9 | Oiling unit | 1set | 1. Frequency conversion control speed Frequency conversion motor |
10 | Yarn guider system | 1set |
|

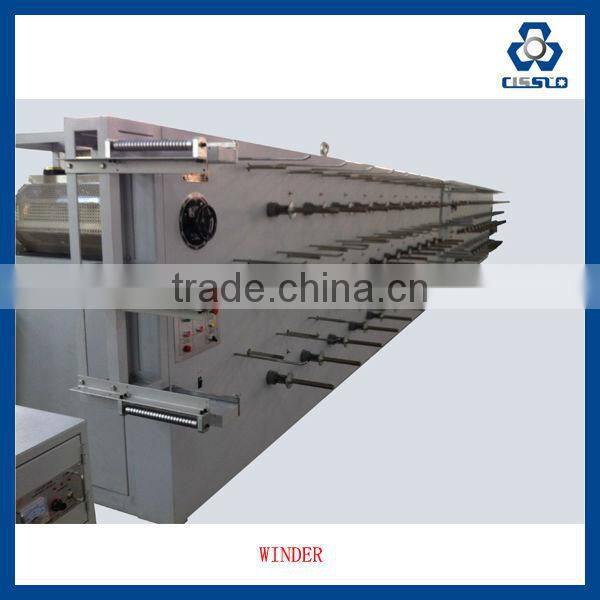

11 | Winder | 2sets | Frame style winder |
12 | Cabinet | 1set | Shown in another list |
3. PICTURES OF CE STANDARD NYLON (PA, PA6, PA66) MONOFILAMENT EXTRUSION LINE
4. CONTACT ME FOR CE STANDARD NYLON (PA, PA6, PA66) MONOFILAMENT EXTRUSION LINE
Tareq Muwanes
CissCo Machinery Co., Ltd.
Mob.: +86 13701714184 I Office: +86 2138726398/99
Email: arab@ I Skype: almqes I Web:
Add.: 30B, No.58 New Jinqiao Road, Pudong, Shanghai, China
