3D Printing Plastic ABS PLA Filament Extrusion Machinery With CE High quality
- 10 Set / Sets per Month
- shanghai
- T/T
Product Details
Condition: | New | Application: | Other, ABS ROD EXTRUSION, 3D PRINTER FILAMENT | Plastic Processed: | ABS |
Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Shanghai, China |
Brand Name: | Plastic ABS PLA Filament Extrusion Machinery With CE High quality | Model Number: | Plastic ABS PLA Filament Extrusion Machinery With CE High quality | Voltage: | AC 380V / 50Hz |
Power(W): | ≤30.0kW | Dimension(L*W*H): | 13.5m x 2.5m x 3.0m | Weight: | 20 tons |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

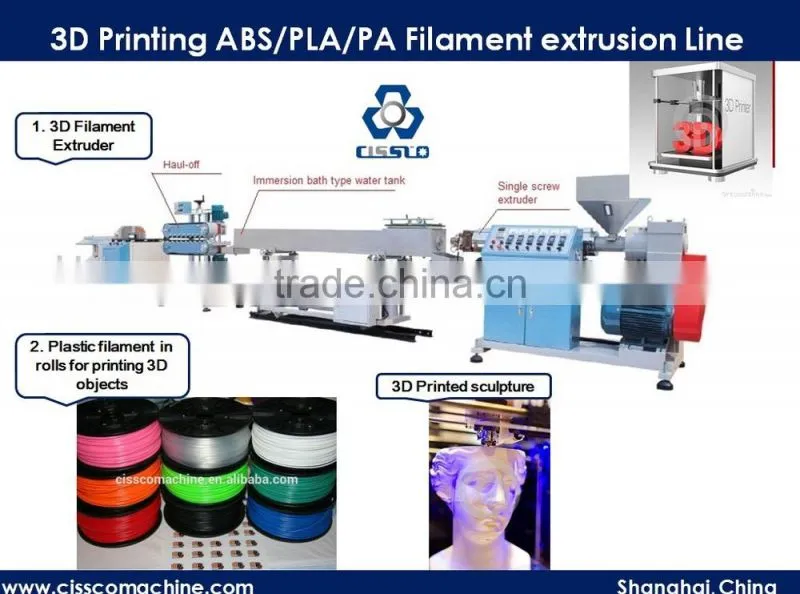

3D PRINTER PLASTIC MONOFILAMENT PRODUCTION LINE
3D Filament Extruder Introduction
SXG model 3D filament extrusion line is the main model of third generation (high speed) series line which designed and made by Cissco Machinery Co., LTD, this line is mainly used for producing various kinds of filament for 3D printer from ABS/PLA/PA material.
Technical parameters |
Model | ROD diameter range (mm) | Screw diameter ) | L/D | Main motor power (kW) | Output (Kg/h) |
SXG-50 | 1.5-8.0 | 50 | 28/30 | 15/18.5 | 25-45 |
SXG-40 | 0.6-6.0 | 40 | 28/30 | 7.5/11 | 12-20 |
SXG-30 | 0.2-2.0 | 30 | 28/30 | 4/5.5 | 5-8 |
Advantages:
- High productive efficiency • Excellent dimensional stability • High automation degree
II. ABS/PLA/PA Filament Extruder Machinery Components
Item. | Equipment Name | Model | QTY/set |
1-1 | Automatic loader | JLD-30 | 1 |
1-2 | Hopper dryer | GZ-108 | 1 |
2-1 | ABS Single screw extruder | BDSJ-40/28 | 1 |
2-2 | PLA Single screw | SJ-40/28 | 1 |
3 | High pressure volumetric type mold | BM-40 | 1 |
4 | Immersion bath type coolong water tank | CW-6000 | 1 |
5 | High speed synchronous strap puller (servo driving) | TKB-400T | 1 |
6 | High speed double-position automatic winding machine (variable-frequency driving) | SPS-500T | 1 |
III. ABS/PLA/PA Filament Extruder Machinery Features
3.1 Single screw extruder - BDSJ-30/28. The Screw designed by American technology, with bigger L/D and compression ratio, ensures high speed and stable extrusion, provides excellent plasticity. Extruder with “ABB” A/C frequency motor and high class “ABB” inverter, which provide accuracy and stable output control, Japan “OMRON” PID intelligent temperature controller, accuracy of temperature control: ±1°C.
2.1 Cooling water tank. Main body of the tank is made from the standard stainless steel 38CrMoALA material. Tank frame with spiral elevating device, can be 3-D moved, trouble free operation.
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our clients factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
Loyal Luo, Sales Export & Business Developer
CissCo Machinery Co., Ltd.
Mob.: +86 18817937157 I Office: +86 2138726398 / 99
Email: market02@ I Skype: cisscomachine03 I Web:
Add.: 30B, No.58 New Jinqiao Road, Pudong, Shanghai, China
