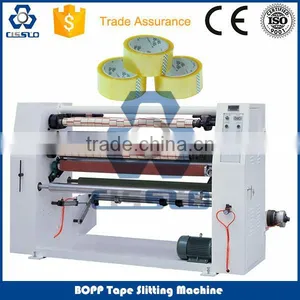

CE STANDARD BOPP CRYSTAL ADHESIVE TAPE SLITTING MACHINE
- 100 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Other, Machinery & Hardware | |
| Packaging Type | Cartons, Film | Packaging Material | Plastic, Wood | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 380V/50HZ | Power | 1.5KW | |
| Place of Origin | Shanghai, China | Brand Name | BOPP crystal adhesive tape slitting machine | |
| Model Number | BOPP crystal adhesive tape slitting machine | Weight | 800kg | |
| Dimension(L*W*H) | 1500*680*1050mm | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
BOPP crystal adhesive tape slitting machine
I. MAIN TECHNICAL PARAMETERS
1.1 Suitable base material: BOPP tape;
1.2 Valid width: 1050/1350/1650mm;
1.3 Maximum unwinding diameter: 800mm;
1.4 Maximum winding diameter: 150mm, four-position winder; 320mm, two-position winder
1.5 Diameter of paper core: 3”
1.6 Splitting width: 12-1280mm;
1.7 Mechanical speed: 0-180m/min;
1.8 Electricity: 380V, 50HZ;
II. CONFIGURATION
No. | Name | Specification | Qty. |
1 | Inverter | Shihlin, Taiwan | 1 set |
2 | Motor | Liangji, Taiwan, 3.7HP | 1 set |
3 | Unwinding shaft | 3” Air shaft | 1 pc |
4 | Unwinding brake | Vapour-pressure type | 1 set |
5 | Metering gauge | Higher electronic counting control | 1 set |
6 | Splitting knife | Industrial flat knife 0.2*22*60mm | 200 pcs |
7 | Edge material process | Winding synchronously by edge material winding equipment | 2 sets |
8 | Winding shaft | Aluminum tube with plastic lining | 4 sets |
9 | Winding pinch roller | Cylinder driving | 1 set |
10 | Automatic roll alternating system | AC motor, 2.2HP | 1 set |
11 | Maintenance tool | Delicate tool | 1 set |
12 | Operation manual | Instruction book and electrical diagram | 1 set |
III. SCOPE OF DELIVERY
NO. | Name | Qty. |
1 | BOPP Tape Slitting Machine | 1 set |
2 | Tube Wearing Machine | 1 set |
3 | Tube Cutting Machine | 1 set |
4 | Rewinding Machine | 1 set |
5 | Winding shaft | 4 pcs |
6 | Mould for two size | 3 sets |
7 | Knife | 20/200 |
4.1 Price:basis of FOB defined in accordance with the provisions of the International Rules for the Interpretation of the International Commercial Terms (INCOTERMS) 2000.
4.2 Delivery Time: 10 days after receipt of down-payment, clarification of all technical and commercial items.
4.3 Packaging: painted with anti-corrosion oil, and covered with plastic film. Fumigation cost is on Buyer’s side, if any.
4.4 Terms of Payment: 40% of total price as down-payment by T/T, 60% of total price shall be paid before delivery by T/T.
4.5 Quotation Valid: 30 days from the date of this offer.
4.6 Warranty: 12 months is from the date of commissioning from delivery.
V. PICTURES
CissCo Machinery Co., has been engineering and manufacturing a series of COATING MACHINERY for more than 20 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
Comparing with the low price low quality machine, please note our strong advantages:
1. 20 Years Experiences;
2. European Latest Technology;
3. Easy to Operate, Stable Performance, Good Quality Products, Low Production Cost;
4. Quicker Production Speed, Big Output;
5. Good Material and Well-Known Brand Electrical Parts;
6. Beautiful Appearance;
7. Free Training for Technical Process, Formula and Know-How;
8. Full Time and High Level After-Sale Services;
9. CE certificate..
l OEM is welcome and satisfactory sales service;
l Any inquiry will be replied within 12 hours;
l Well-trained & experienced sales representative are ready to answer you;
l Jumbo roll tape, packing tape, stationery tape and printed tape are for sale;
l BOPP tape coating machine, slitting machine for sale.
Contact Us
- Cissco Machinery Co., Ltd.
- Contact nameLouies Liu Chat Now
- Phone86-21-38726398
- AddressRoom 30B, Yindong Bldg., No. 58, New Jinqiao Road
