PET AdhesiveTape Coating Line
1. MAIN TECHNICAL PARAMETERS
1.1. Suitable base material: PE film;
1.2. Valid width: 1600mm;
1.3. Coating type: Anilox roller directly coating
1.4. Mechanical speed: 10-60m/min
1.5. Heating type: Steam heating
1.6. Mechanical power: About 65Kw
1.7. Heating power: About 300Kw
1.8. Overall size: 31580mm (L) * 4200mm (W)

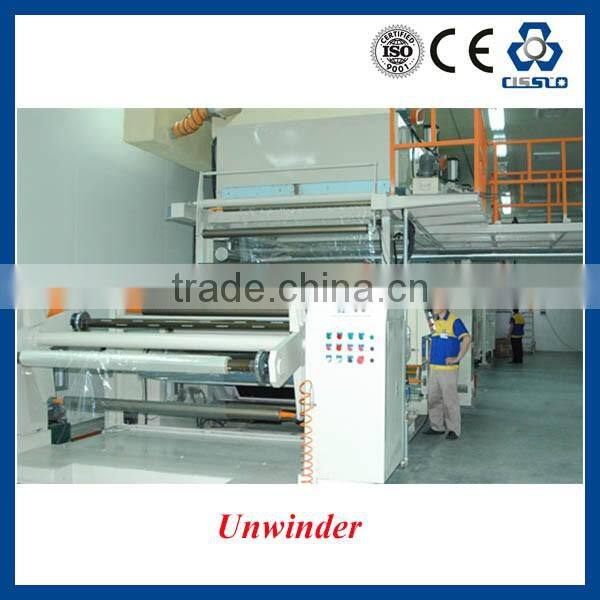

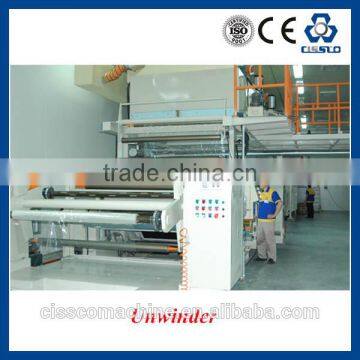

2. Turret unwinding machine
2.1. Type: Turret
2.2. Maximum unwinding diameter:800mm
2.3. Inner diameter of tube core:Up to customer’s requirement
3.SCOPE OF DELIVERY
NO. |
Name |
Qty. |
1 |
Turret unwinding machine |
1 set |
2 |

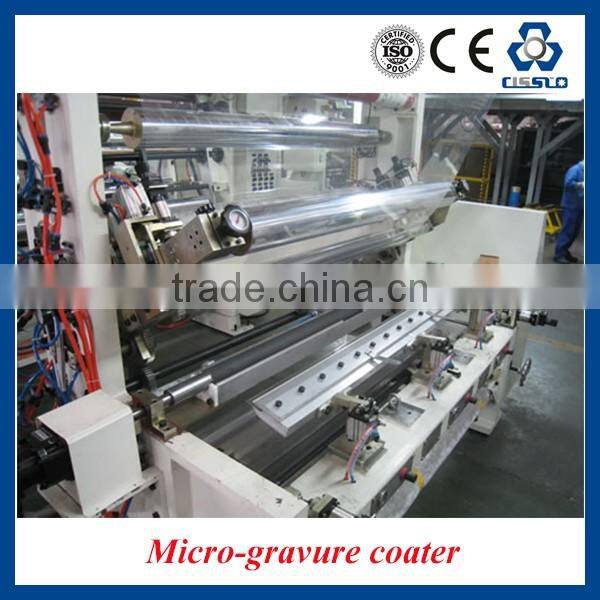

Anilox roller coating head |
1 set |
3 |

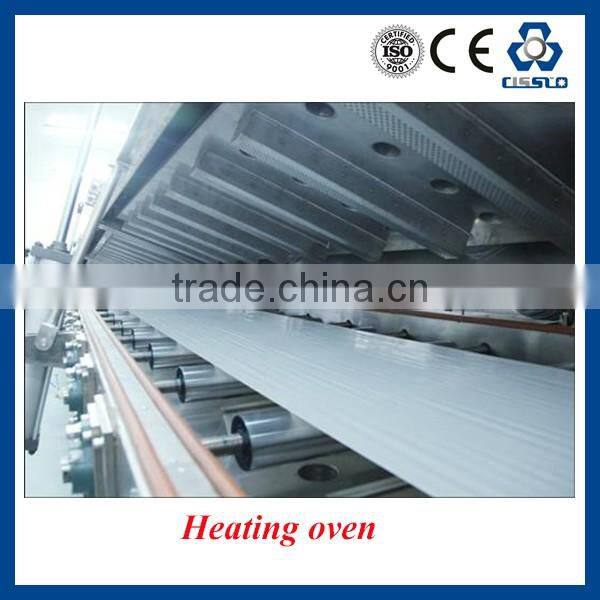

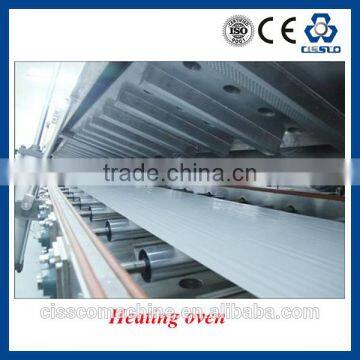

Drying oven (4m * 6 = 24 m) |
6 sets |
4 |
Cooling roller group |
1 set |
5 |
Four-position winder |
1 set |
6 |
Rectification unit |
3 sets |
7 |
Corona treatment system |
1 set |
8 |
Electrostatic clearing device |
2 sets |
9 |
Electrical control system |
1 set |
10 |
Electrical parts |
1 set |
11 |
Frame |
1 set |
12 |
Pipeline |
1 group |
13 |
Spare parts |
1 group |

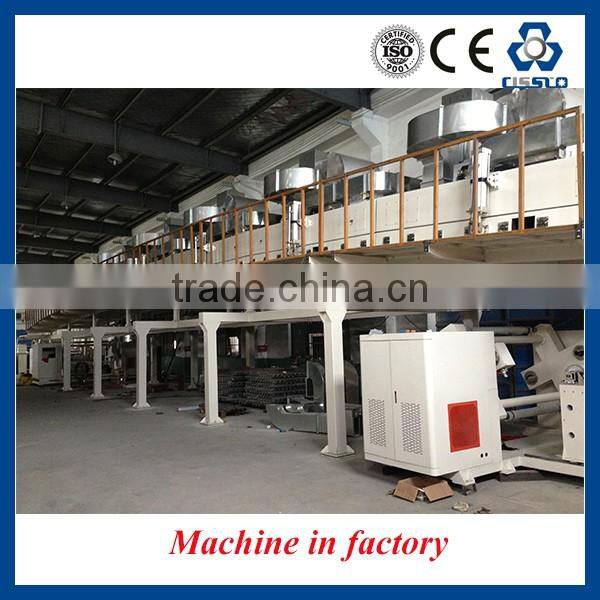

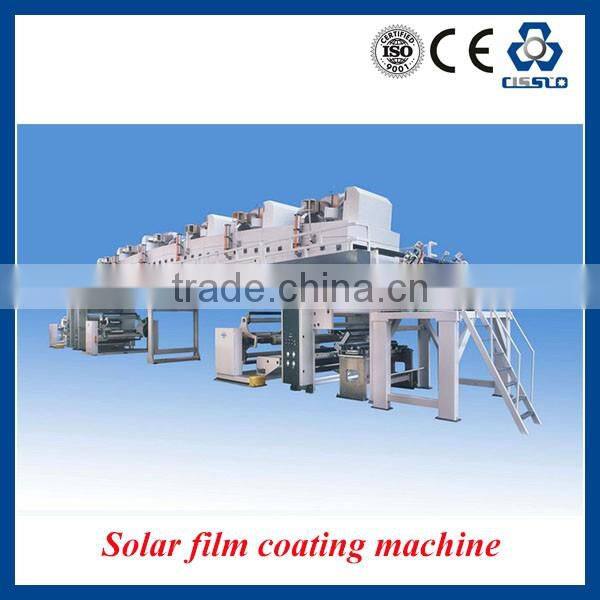

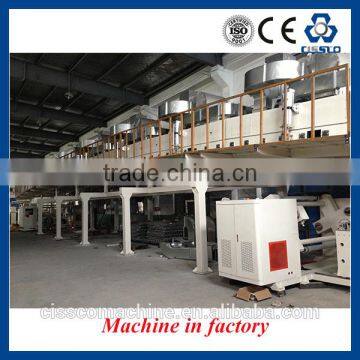

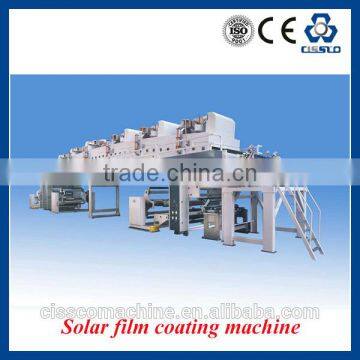

4.Pictures
CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUDing MACHINERY for more than 20 years and has acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
• We design, engineer and manufacture and customized the production line for every customer.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
