Adhesive Solar Film Coating Machinery
1. MAIN APPLICATION

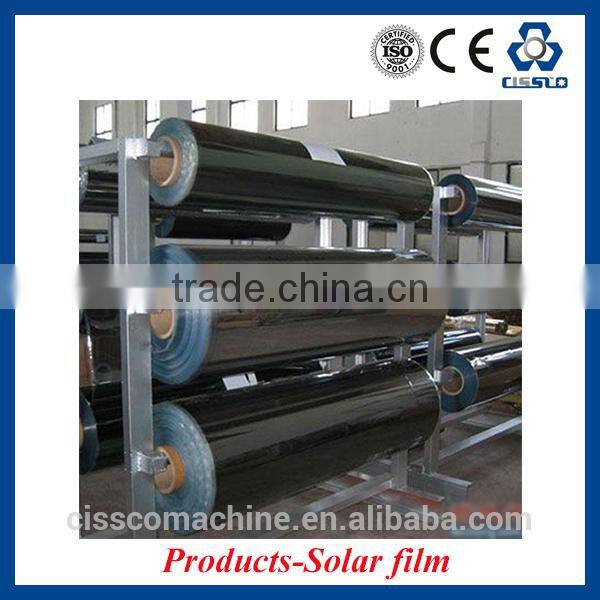

1.1. Used to produce PET Solar Film;
1.2. Suitable material:
1.2.1. Base material: PET film (12-25um);
1.2.2. Glue: Oil pressure sensitive adhesive.
2.MAIN FUNCTION AND CHARACTERS OF DECORATIVE WINDOW FILM PRODUCTION MACHINERY
2.1. Unwinding unit: Double positions, adopts Constant tension and Automatic Edge control system to keep the film in stable tension and reliable operation;
2.2. Heating ovens: Adopt segmented control to guarantee the accuracy of the temperature control;
2.3. Transmission units: Adopt Servo Motors to increase the synchronous control precision and guarantee the machine running smoothly;
2.4. Rewinding unit: Adopts two-position constant tension winding to keep the tension balance;
2.5. Transmission rollers: They are all by dynamic balance processing to guarantee the flexible operation and prevent the film scratches.
3. MAIN TECHNICAL PARAMETERS
3.1. Valid width: 1600mm;
3.2. Roller width: 1750mm;
3.3. Max. mechanical speed: 0-50m/min;
3.4. Operation speed: 10-30m/min (affected by glue and coating thickness)
3.5. Maximum unwinding diameter: 800mm;
3.6. Maximum winding diameter: 800mm;
3.7. Heating method: Electrical heating;
4. SCOPE OF DELIVERY
NO. |
Name |
Qty. |
1 |
Two-position unwinding machine A |
1 set |
2 |
Gravure coating head |
1 set |
3 |
Micro gravure coating head |
1 set |
4 |
Drying oven (3m * 8 = 24 m) |
8 pcs |
5 |
Outlet of oven |
1 set |
5 |
Cooling roller and lamination group |
1 set |
6 |
Two-position unwinding machine B |
1 set |
7 |
Two-position winder |
1 set |
8 |
Frame |
1 set |
9 |
EPC unit |
3 sets |
10 |
Electrical control system |
1 set |
5.PICTURES OF DECORATIVE WINDOW FILM PRODUCTION MACHINERY
6.CONNECT INFORMATION FOR DECORATIVE WINDOW FILM PRODUCTION MACHINERY
