constant temperature humidity climate chamber climatic test chamber

Specifications

constant climate chamber
1.Mirror finished stainless steel inner chamber
2.Warranty 1 years
3.CE.ISO9001
4.Delivery in time

constant climate chamber



Uses:



With precise temperature and humidity control system, this equipment provides variety of environmental simulate conditions that industrial research and biological test need. It is used in medicine, textile and food production experiment, as well as in product stability, raw material, packing and lifetime test.



Characteristics of standard form incubator:

1. Mirror finished stainless steel inner chamber; foursquare semicircle transition, convenient to clean; space between shelves is adjustable.

2. Micro-computer temperature and humidity controller with program of 330 sections to ensure timing, repeated or multistep running of temperature and humidity; Function of over temperature protection and timing; LCD enables multiple groups of data to be displayed at a time.

3. Test hole of 52mm at left side of chamber.

4. Brand compressor, fluoride-free refrigeration.

5. Double airtight door, which is convenient to on/off; with light in inner chamber for convenient viewing (The lamp can be replaced with ultraviolet ray sterilizing lamp as user’s need).

6. Equipped with ultrasonic humidifier and intelligent atomizer.



Characteristics of functional form incubator:

1. No freezing in inner chamber thanks to intelligent refrigeration and defrosting system.

2. Function of auto running, auto stopping and timing running, as well as parameter memorizing, power reset recovering and temperature display revising.

3. Watch timer and independent temperature safety device; auto alarm and auto break off when over temperature limit to ensure experiment runs safely .

4. Function of self-diagnosis, sensor failure alarm and.



Optional accessories:

a. Supplementary oxygen, nitrogen interface

b. Printer:  (desktop);

c. RS485 communication software interface



 Main Technical Parameters



Model		voltage (V)	Tem. variation (°C)	Tem.fluctua-tion (°C)	Tem.dis- tinguish- ability (°C)	Hum- idity variation	Hum- idity error	Heat- ing power	Ambient tem. (°C)
Standard form	HWS-70B	220V/50HZ	Humidific-ation: 10-65°C no humid-ification: 0-65°C	High tem:±1°C low tem:±0.5°C	0.1°C	45-90% RH	±5%-8%RH	500W	5- 35°C
	HWS-150B							800W
	HWS-250B							1200W
Functional form	HWS-70BX							500W
	HWS-150BX							800W
	HWS-250BX							1200W

Model		Interior dimensions W×D×H(mm)	Exterior dimensions W×D×H(mm)	Packaging dimensions W×D×H(mm)	Gross/net weight(kg)	Load per rack
Standard form	HWS-70B	420×350×500	570×560×1020	730×720×1170	59.5/85.5	15/kg 2 for stand-ard configuration
	HWS-150B	500×400×750	640×4620×1270	820×760×1430	68.5/92.5
	HWS-250B	500×500×950	660×700×1470	880×825×1645	71.5/115.5
Functional form	HWS-70BX	420×350×500	570×560×1020	730×720×1170	59.5/85.5
	HWS-150BX	500×400×750	640×4620×1270	820×760×1430	68.5/92.5
	HWS-250BX	500×500×950	660×700×1470	880×825×1645	71.5/115.5

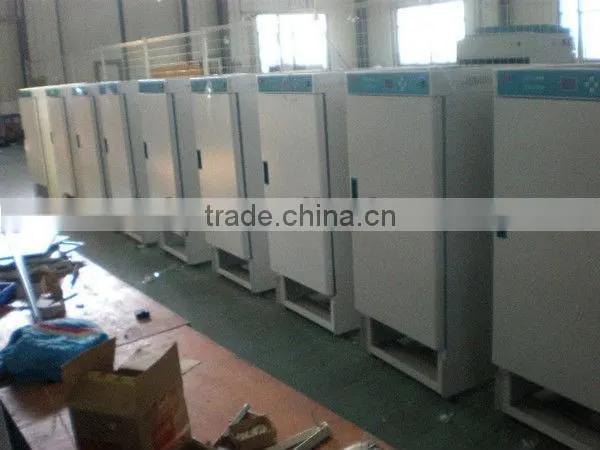

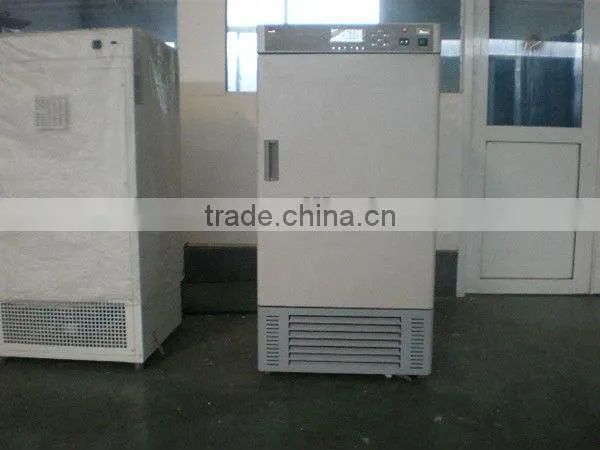

Pictures



Packing
