Specifications
1. Cold rolling steel case;2. Bottom heating and air blast;
3. Quick-release airduct and rack;
4. Intelligent controller.
Uses:

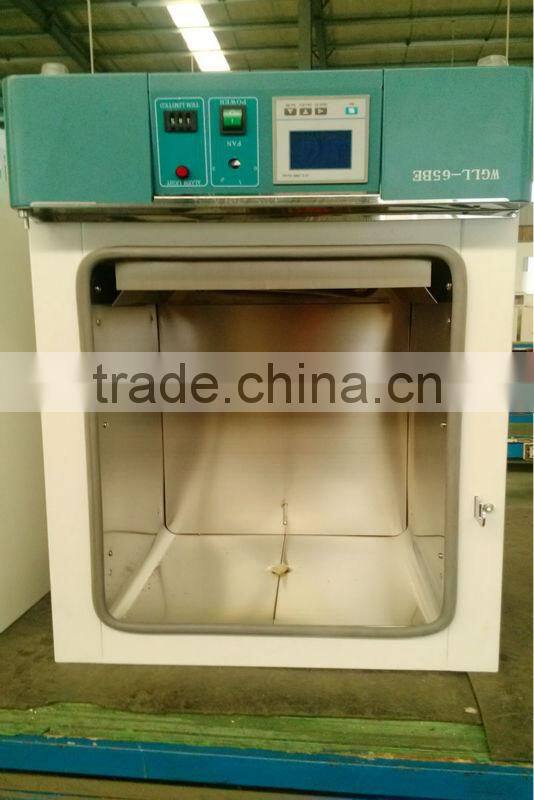

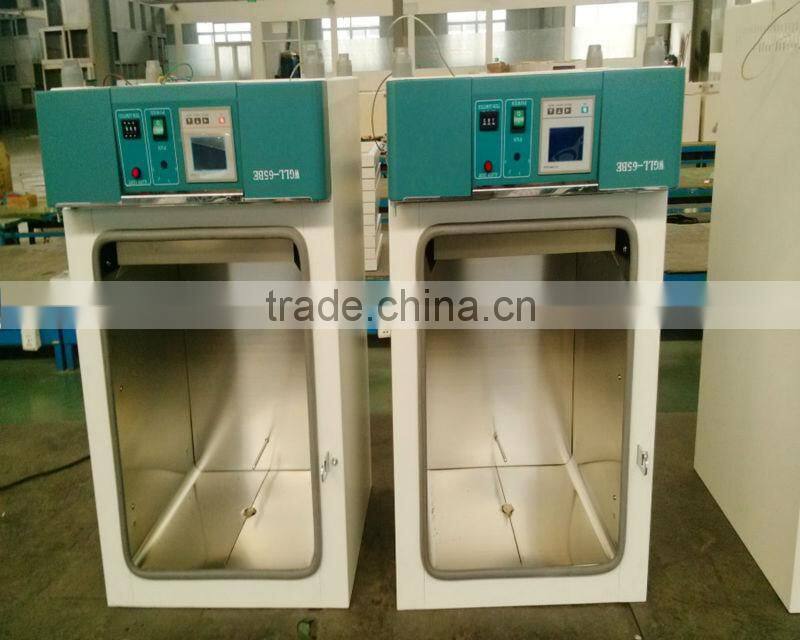

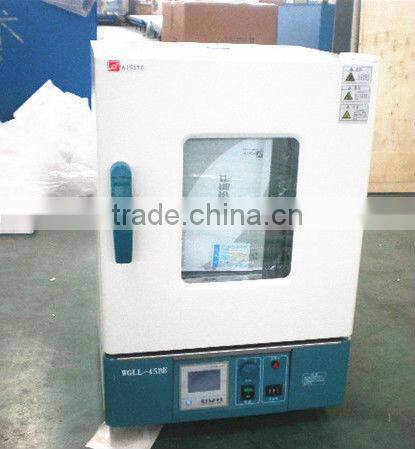

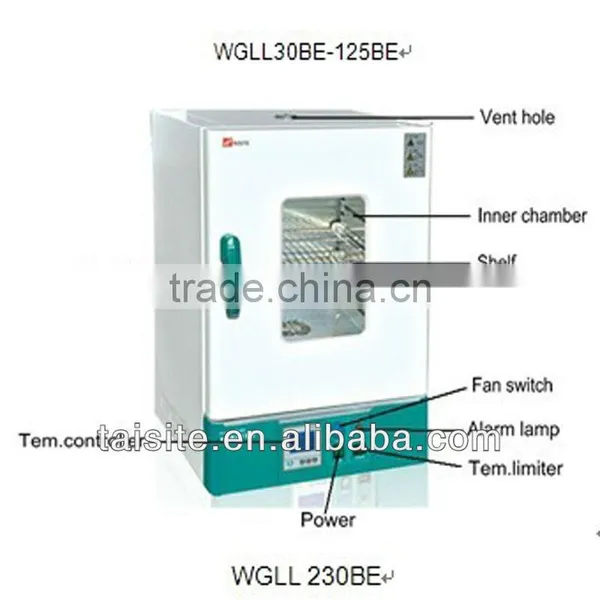

WGLL Drying Oven is widely used for drying, curing, melting and heating in experiments of industrial enterprises, scientific research institutions, and health and medicine units etc.
Characteristics:
1. Vertical design; cold rolling steel electrostatic spraying exterior.
2. Favin stainless steel inner chamber; foursquare semicircle transition; flexible positioning and airduct lateral plate and bottom heater covering are easy assembly and disassembly for convenient cleaning.
3. Well coordinated bottom air blower and heater and vertical hot air circulation ensure temperature evenness.
4. Adjustable fan speed; blowing rate is adjustable to ensure temperature evenness and prevent powder samples blowing away.

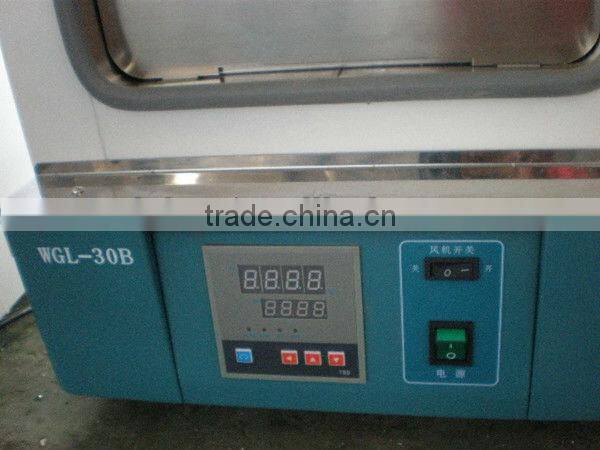

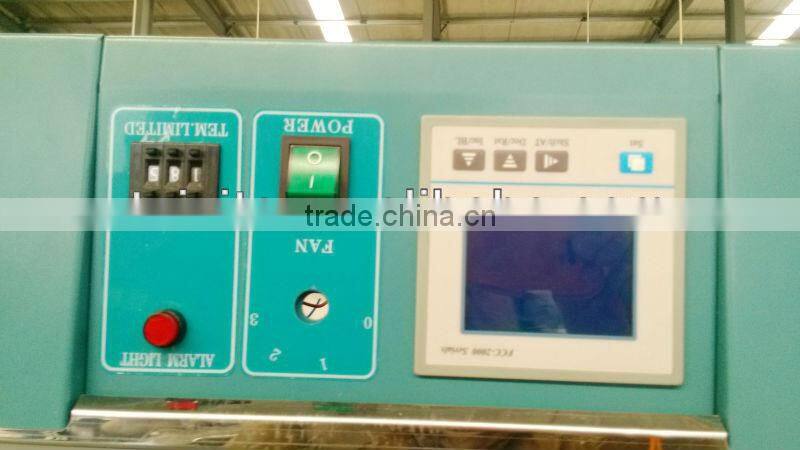

5. LED with function of timing and over-temperature protection.
6. Independent temperature safety device; auto break off when over temperature limit, auto power switch to maintain temperature when main controller fails to work; Double protection ensures experiment run safely and no accident would happen.
7. Optional RS-485 interface for network connection.
8. Door heat insulation well and with wide double-glass observation window, adjustable air-tight buckle lock and silicon rubber seal, which provide good sealability and efficiently prevent heat loss.
Notes: WGLL-230BE and WGL-625BE have no function of fan speed adjustment.
WGLL-625 features top blowing.
Optional accessories:
a. Desk printer: RMB1150;
b. Multi-staged temperature controller: RMB800 (domestic), RMB3000 (import);
c. Optional long-distance control system: RMB 800.
Main Technical Parameters:
| Model | voltage (V) |
Temperature variation (°C) |
Tem.fluctuation |
Tem.distingu- ishability(°C) |
Ambient tem. (°C) |
Heating power |
| WGLL-30BE | 220V/50HZ | RT+10-300°C | ±1.0°C | 0.1°C | +5-40°C | 0.8 |
| WGLL-45BE | 1.2 | |||||
| WGLL-65BE | 1.6 | |||||
| WGLL-125BE | 2.3 | |||||
| WGLL-230BE | 3 | |||||
WGLL-625BE |
380V/50HZ | 5 |
|
Model |
Interior dimensions W×D×H(mm) |
Exterior dimensions W×D×H(mm) |
Packaging dimensions W×D×H(mm) |
Load per rack | Gross/net weight(kg) |
Timing range |
| WGLL-30BE | 310×310×310 | 460×510×695 | 550×570×765 | 15/kg 2 for stand-ard configuration | 39/51 |
1-9999min |
| WGLL-45BE | 350×350×350 | 500×550×735 | 620×585×800 | 42/56 | ||
| WGLL-65BE | 400×360×450 | 550×550×840 | 640×640×905 | 47/61 | ||
| WGLL-125BE | 500×450×550 | 636×680×915 | 730×720×1000 | 56/71 | ||
| WGLL-230BE | 600×500×750 | 730×670×1220 | 900×800×1350 | 25/kg 2 for standard configuration | 70/105 | |
WGLL-625BE |
660×760×1250 | 895×925×1830 | 1000×1080×2000 | 25/kg 3 for standard configurati | 90/160 |
