Specifications
1. Cold rolling steel case;2. Bottom heating and air blast;
3. Quick-release airduct and rack;
4. Intelligent controller.
CO2 incubator, Microprocessor controller ensures precise and reliable control.
Carbon Dioxide Cell Incubator is an advanced instrument for cultivation of cells, tissues and bacteria, a key equipment for the development of immunology, oncology, genetics and biological engineering, extensively applicable in the research and production of microorganism, agricultural sciences and pharmaceutics
Structure Feature:
Sort: Microcomputer normal type
Performance Feature:
1,Adopts originated domestic streamline arc design, the outer is made of cold rolled steel plate, the surface is static lacquered;
2,Temperature control system adopts microcomputer singlechip technology, with the functions of temperature control, timing and over-temperature alarm;
3,CO2 control method is distribution type;
4,Adopts imported acentric fan with low noise and long uselife to heat quickly with good uniformity;

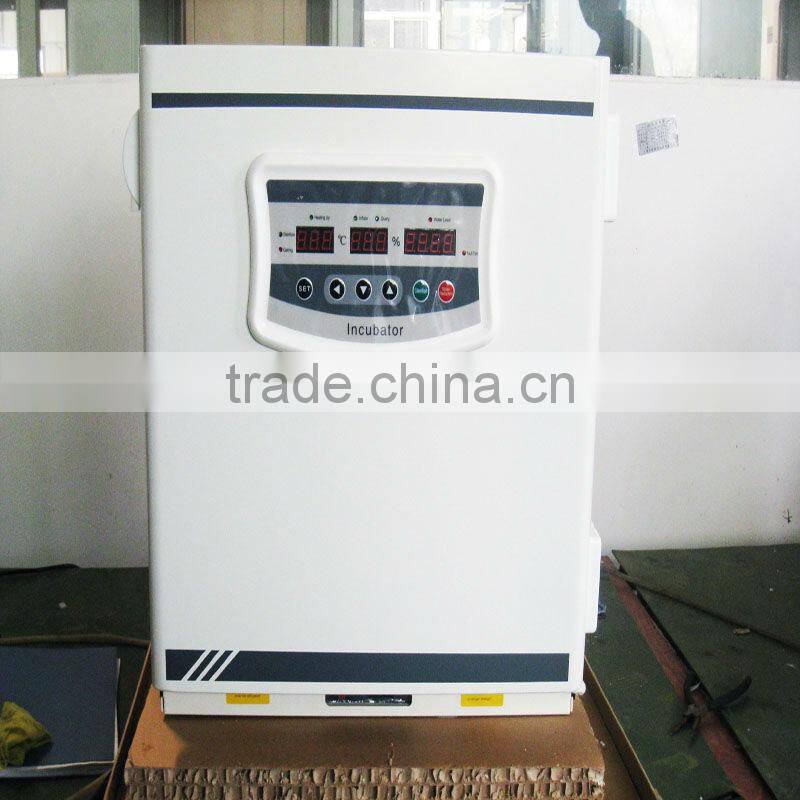

5,Double screens of high light nixie tube display, the value displayed well, predominant performance, set and adjust parameters by touch type buttons;
6,Equipped with two control systems, the assistant control system will play the monitoring role when the main control system is invalidated;
7,Adopts microcomputer auto-restrain control system that can avoid temperature fluctuation if user open the door when cultivating;
8,Adopts door heating control system which can avoid frost phenomenon of inner door;
9,Adopts double seal door structure, outer door adopts magnetic door seal strcuture. The silicone rubber door seal is equipped between chamber and inner door to ensure seal;
10,User can decide the number of shelves and the height of shelves can be changed optionally;
11,The interior chamber is made of mirror stainless steel material, the design of corners semicircular is easy to clean.
Technical Parameters:
| Model No | RYX-50 | RYX-150 | |||
| Exterior dimensions L×W×H | 465×480×580mm | 615×700×800mm | |||
| Interior dimensions L×W×H | 350×380×380mm | 500×500×600mm | |||
| Volume | 50L | 150L | |||
| Exterior material | high quality cold-rolled steel | ||||
| Interior material | SUS303 mirror finished stainless steel | ||||
| Interior door | toughtened glass | ||||
| TRAY | mirror finished stainless steel plate with punch | ||||
| holes(3pcs) | |||||
| Thermal insulation material | Rigid polyurethane foam board | ||||
| Heating system | DHA | ||||
| Humidification system | humidifying plate, natural evaporation type | ||||
| Temperature controlling system | PID | ||||
| CO2 controlling system | PID | ||||
| CO2 air-intake | can be connected with intake-tube of | ||||
| inner diameter 4-6mm | |||||
| CO2 air-intake filter | DFU filter, | ||||
| leach out the particalmore than Φ0.33nm | |||||
| CO2 intake pressure | 0.03MPaG(0.3Kgf/cm2G,4.3psiG) | ||||
| HEPA filter | after operating 10minutes, | ||||
| the level of the internal air can be 100 | |||||
| Water level detector | Optical water level sensor | ||||
| Air circulation | fan | ||||
| Nominal voltage | 220v/50hz | ||||
| Nominalpower | 160w | 330w | |||
| Rated current | 0.8A | 1.5A | |||
| Temperature range | RT+5-60°C | ||||
| Temperature accuracy | ±0.1°C | ||||
| Tem.uniformity | ≤0.35°C | ||||
| Humidity | ≥90%RH | ||||
| CO2 concentration range | 0-20% | ||||
| CO2 concentration | 0.10% | ||||
| distinguishability | |||||
| Using environment | RT 0-50°C,Humidity <80%RH | ||||
| Optional function | munication port RS485 | ||||
| 2.humidity display | |||||
| 3.double cylinder automatic switching | |||||
| 4.printer | |||||
