Laboratory equipment plant growth chamber with illumination RGX

Specifications

1. Cold rolling steel case;
2. Bottom heating ;
3. Quick-release airduct and rack;
4. Intelligent controller.

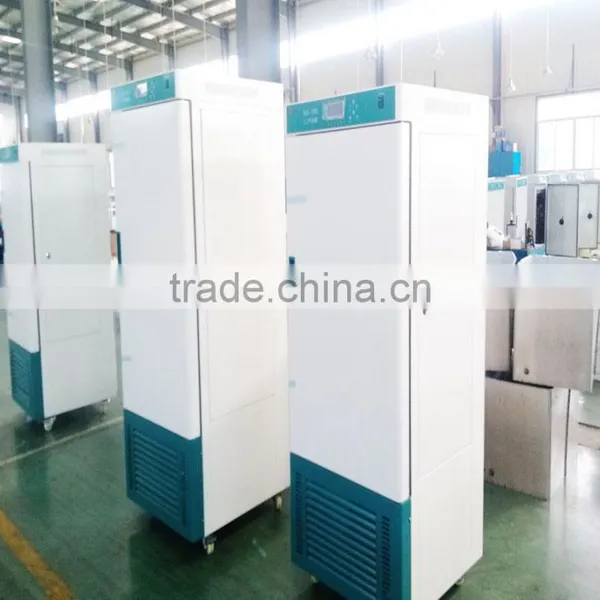

RGX Plant Growth Chamber



    Characteristics

1.  Micro-computer temperate, humidity and illuminance controller with multiple storable programs, each for a maximum of 99 hours to set. It simulates the temperature and humidity in day and night

2.  Substantial three-side or four-side illumination, hollow glass with good spectrum characteristic and low thermal emissivity, which is suitable for plant growth. Unique three-side illumination and heat dissipation technique ensure uniform illumination and photostrophism of plants.
3.  LED Temperature safety device with over temperature optical and audible alarm to avoid damage of specimen under extreme climate.

Main Technical Parameters



Model		volume	Tem. vasriation (°C)	Tem.fluctuation (°C)	Tem.uniformity (°C)	Tem.distinguishability(°C)	Humidity variation	Humidity error	Refrigerant
Three side illumination	RGX250E	250L	With illumination: 10-60°C without illumination: 0-60°C	±1°C	±1.5°C (250L 300L) ±2°C (400L)	0.1°C	40-90%RH	±5%-7%RH	R134a
	RGX300E	300L
	RGX400E	400L
Four side illumination	RGX250EF	250L
	RGX300EF	300L
	RGX400EF	400L





Illumination intensity (LX) 6 degrees for adjusting	Supply power(V)	Ambient tem. (°C)	Heating power(W)	Interior dimensions W×D×H(mm)	Exteriordimensions W×D×H (mm)	Packagingdimensions W×D×H(mm)
0-12000LX	220V/50HZ	5-35°C	500W	500×530×950	690×705×1650	890×905×1870
0-16000LX			600W	550×580×950	740×755×1650	940×955×1870
0-20000LX			700W	590×620×1100	780×795×1800	980×990×2020
0-15000LX			500W	500×530×950	690×705×1650	890×905×1870
0-20000LX			600W	550×580×950	740×755×1650	940×955×1870
0-22000LX			700W	590×620×1100	780×795×1800	980×990×2020
