Help CenterStainless Steel Sterilizer Drying Oven WGL CE ISO13485
Related Products
-
Drying Oven CE,ISO9001,ISO13485US$ 500 - 1,000MOQ: 20 Sets -
2014 New Products China Manufacture Muffle Furnace 1200 CEUS$ 1,600 - 4,000MOQ: 1 Set
-
Illuminate Climate Chamber Incubator Lab Incubator RGXUS$ 1,800 - 2,000MOQ: 20 Sets
-
Vacuum Drying Oven 25L,51L CE ISO9001US$ 310 - 1,500MOQ: 50 Sets
-
Stainless Steel 304 Water Distiller CE , ISO9001US$ 120 - 150MOQ: 20 Sets
Specifications
1.Passed ISO 9001 and CE2.Fast delivery
3.Very competitive price
4.Accuracy result
Uses:
This equipment is widely used for drying, curing, melting and heating in experiments of industrial enterprises, scientific research institutions, and health and medicine units etc.
Characteristics:
1. Vertical type, cold rolling steel electrostatic spraying exterior.
2. Well coordinated bottom air blower and heater and vertical hot air circulation ensure the temperature evenness.

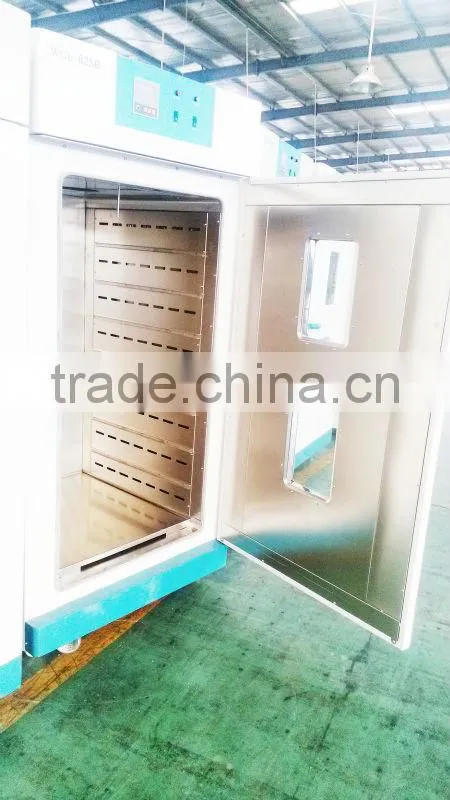

3. High quality mirror finished stainless steel interion; foursquare semicircle transition; flexible positioning and removable shelf; airduct lateral plate and bottom heater covering are easy to assembly and disassembly for convenient cleaning.
4. PID micro-computer intelligent temperature controller with functions of timing and over-temperature protection. Precise in temperature control and easy to read.

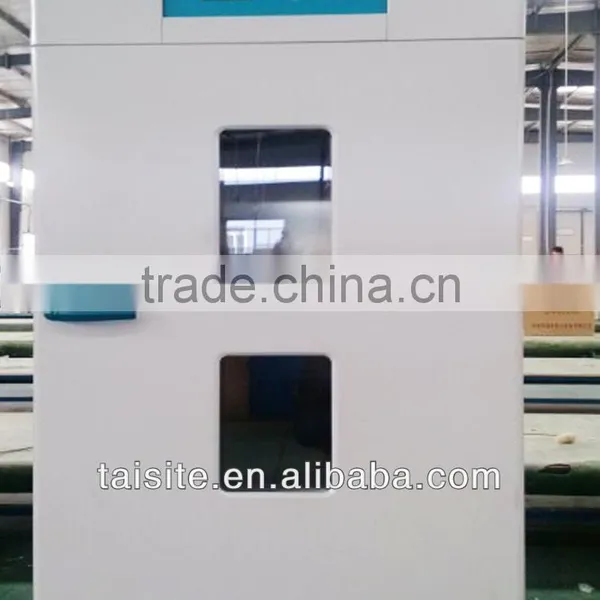

5.New desighed door ,and with double-galss observation window ensures effeetive heat-dissipation, adjustable airtight buckle lock, and heat resistant silicon rubber seal, which efficiently prevent heat loss.

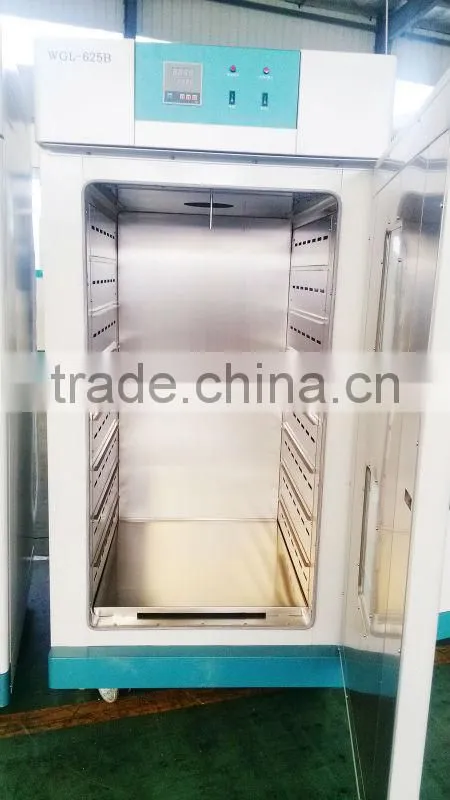

Note: model WGL-625B features top blowing.
heat insulation well.
Main Technical Parameters:
|
Model |
voltage (V) |
Temperature variation (°C) |
Tem.fluctuation |
Tem.distingu- ishability (°C) |
Ambient tem. (°C) |
Heating power |
| WGL-30(B) | 220V/50HZ | RT+10-300°C | ±1.0°C | 0.1°C | +5-40°C | 0.8 |
| WGL-45(B) | 1.2 | |||||
| WGL-65(B) | 1.6 | |||||
| WGL-125(B) | 2.3 | |||||
| WGL-230(B) | 3 | |||||
| WGL-625B | 380V/50HZ | 5 |
|
Model |
Interior dimensions W×D×H(mm) |
Exterior dimensions W×D×H(mm) |
Packaging dimensions W×D×H(mm) |
Load per rack |
Gross/net weight(kg) |
Timing range |
| WGL-30(B) | 310×310×310 | 460×510×695 | 550×570×765 | 15/kg 2 for stand-ard configuration | 39/51 |
1-9999min |
| WGL-45(B) | 350×350×350 | 500×550×735 | 620×585×800 | 42/56 | ||
| WGL-65(B) | 400×360×450 | 550×550×840 | 640×640×905 | 47/61 | ||
| WGL-125(B) | 500×450×550 | 636×680×915 | 730×720×1000 | 56/71 | ||
| WGL-230(B) | 600×500×750 | 730×670×1220 | 900×800×1350 | 25/kg 2 for standard configuration | 70/105 | |
| WGL-625B | 660×760×1250 | 895×925×1830 | 1000×1080×2000 | 25/kg 3 for standard configuration | 90/160 |
