Home > Products > New Products > sell digital ammeter and voltmeter combination meter multi-functions meter

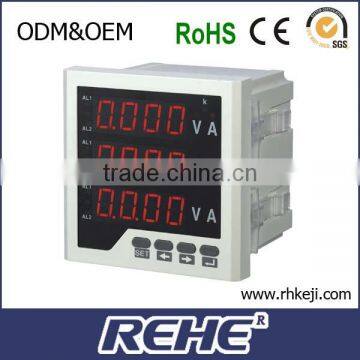

sell digital ammeter and voltmeter combination meter multi-functions meter
USD $20 - $22
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- NINGBO/SHANGHAI
- T/T L/C D/P D/A Credit Card
You May Like
-
mining equipment digital ammeter and voltmeter combination meter multi-functions meter
-
digital ammeter and voltmeter combination meter multi-functions meter china lcd tv price
-
digital ammeter and voltmeter combination meter 96*96
-
3 phase digital ammeter and voltmeter combination meter multi-functions METER
-
digital ammeter and voltmeter frequency combination meter 96*96
-
three phase ammeter voltmeter frequency combinations meter rs-485 with power supply frequency meter for remote control
Product Details
| Place of Origin | Zhejiang, China | Brand Name | RENHE | |
| Model Number | RH-3UI33 | Display Type | Digital Only | |
| Measuring Range | 0-9999 | Accuracy Class | 0.5 | |
| Supply Voltage | AC/DC 80-270V AC220V AC380V AC100V | Operating Temperature | -10 ~+55 ℃ | |
| Dimensions | 96*96 |
Product Description
Specifications
digital voltmeter1.high-precision,provide local date
grammable A and V transformation radio
3.support for rs-485 modbus
Product Description
| Dimension:customized | custom processing:Yes | Measuring range:0-9999 | ||
| Model NO.: RH-UI | accuracy class: 0.5 | Installation:embedded | ||
| Brand name: REHE | Usage:high precision measurement of single phase voltage and current | Auxiliary power supply:DC 80V-270V, DC48V, DC24V, AC220V, AC380V, AC100V(V) | ||
| Performance Characteristics | ||||
| High precision measurement measurement of single phase AC voltage and current | ||||
| Provide the digital tube display, local data query | ||||
| Programmable voltage ratio | ||||
| Support for RS-485 communication, Modubus-RTU protocol | ||||
| Support for switching input, output, analog quantity transmitting output | ||||
| Auxiliary power supply:AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V | ||||
| A variety of shapes, to meet the different requirements of the cabinet body electric circuit | ||||
| Technical Index | ||||
| Accuracy of measurement | Voltage level 0.5, current level 0.5 | |||
| Singal input | Connection mode of single phase | |||
| Rated current of AC1A,AC5A | ||||
| Over load 1.2 times ( Continued ), 2 times / second ( instantaneous ) | ||||
| Power consumption voltage <1VA/phase, current: <.0.4VA/phase | ||||
| Impedance voltage: >300KΩ current: <20mΩ | ||||
| The frequency of 45~65Hz | ||||
| Auxiliary power supply | AC/DC 80V~270V, AC220V, AC380V, AC100V | |||
| Power consumption <4VA | ||||
| Function module | Communication interface 1 way RS-485 communication, Modbus-RTU protocol | |||
| Baud rate: 1200~9600bps, the default 2400bps | ||||
| Switch input support 2 stem node input | ||||
| The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A | ||||
| Transmission output support 1 analog output: 0/4~20mA or 0~5/10V | ||||
| Environment | Working temperature:-10°C ~+55°C | |||
| Storage temperature:-25°C ~+70°C | ||||
| Relative humidity is less than 93%, no corrosive gas | ||||
| Elevation≤2500m | ||||
| Safety | Insulation resistance >100MΩ | |||
| AC withstand voltage AC 2KV | ||||
| Electromagnetic compatibility | ESD level 4 | |||
| Electrical fast transient burst level 4 | ||||
| Selcction of Specification | ||||
| Digital Single phase Ampere and Voltage Combined Meter(9999 display programmable) | ||||
| Model NO. | Display | Frame size(mm) | Hole size(mm) | Remark |
| RH-UI11 | Digital Single-row LED | 160*80 | 152*76 | |
| RH-UI22 | Digital Two-row LED | 120*120 | 111*111 | |
| RH-UI32 | Digital Two-row LED | 96*96 | 92*92 | |
| RH-UI41 | Digital Single-row LED | 120*60 | 114*56 | |
| RH-UI51 | Digital Single-row LED | 96*48 | 92*45 | |
| RH-UI62 | Digital Two-row LED | 72*72 | 68*68 | |
| RH-UI72 | Digital Two-row LED | 80*80 | 76*76 | |
| RH-UI82 | Digital Two-row LED | 48*48 | 45*45 | |
| Extended Modules: | ||||
| AC/DC power supply(switching power supply)$4 | ||||
| Modbus-RTU RS485 comm:$5 | ||||
| AO: $7 more for each stem node | ||||
| DI: $4 more for each stem node | ||||
| DO:$4 more for each stem node | ||||
| “*” means unconventional products of our corporation | ||||
| Order notes: Please write clearly the requested types, input signal and the functional modules, etc when purchasing. Others: Factory default settings (Use default setting if no instruction). | ||||
