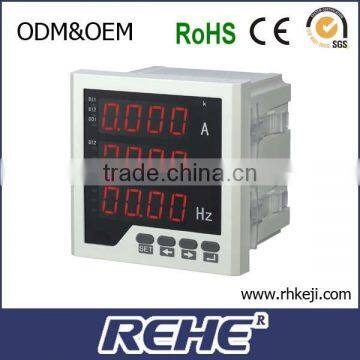

Digital LED Ammter Voltmeter hz Meter Multifunctions Meter

Yueqing Renhe Electrical Technology Co., Ltd.
Digital LED Ammter Voltmeter hz Meter Multifunctions Meter thumbnail-1
Digital LED Ammter Voltmeter hz Meter Multifunctions Meter photo-1
US$ 10 - 15 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
RENHE
Measuring Current Range:
0-9999
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name RENHE
Measuring Current Range 0-9999
Measuring Voltage Range 0-9999
Measuring Resistance Range 0-9999
Measuring Capacitance Range 0-9999
Measuring Inductance Range 0-9999
Operating Temperature -10 ~+55 ℃
Dimensions 96*96

Specifications

certificate:CE ,ISO9001
Product material:ABS
Service :ODM/OEM is available
support for RS-485 Modbus-RTU




Product Description



Dimension:customizedcustom processing:YesMeasuring range:0-9999
Model NO.: RH-UIFaccuracy class: 0.5Installation:embedded
Brand name: REHEUsage: high precision measurement of single phase voltage and current and frequencyAuxiliary power supply: DC 80V-270V, DC48V, DC24V, AC220V, AC380V, AC100V(V)
Performance Characteristics
High precision measurement measurement of single phase AC voltage and current and frequency
Provide the digital tube display, local data query
Programmable voltage ratio
Support for RS-485 communication, Modubus-RTU protocol
Support for switching input, output, analog quantity transmitting output
Auxiliary power supply:AC/DC 80V~270V, AC220V, AC380V, AC100V, DC48V, DC 24V
A variety of shapes, to meet the different requirements of the cabinet body electric circuit
Technical Index
Accuracy of measurementVoltage level 0.5, current level 0.5, frequency ±0.2Hz
Singal inputConnection mode of single phase
 Rated current of AC1A,AC5A
 Over load 1.2 times ( Continued ), 2 times / second ( instantaneous )
 Power consumption voltage <1VA/phase, current: <.0.4VA/phase
 Impedance voltage: >300KΩ current: <20mΩ
 The frequency of 45~65Hz
Auxiliary power supplyAC/DC 80V~270V, AC220V, AC380V, AC100V
 Power consumption   <4VA
Function moduleCommunication interface 1 way RS-485 communication, Modbus-RTU protocol
 Baud rate: 1200~9600bps, the default 2400bps
 Switch input support 2 stem node input
 The switch output support 2 relay output, capacity: AC 250V/5A, DC 30V/5A
 Transmission output support 1 analog output: 0/4~20mA or 0~5/10V
EnvironmentWorking temperature:-10°C ~+55°C
 Storage temperature:-25°C ~+70°C
 Relative humidity is less than 93%, no corrosive gas
 Elevation≤2500m
SafetyInsulation resistance >100MΩ
 AC withstand voltage AC 2KV
Electromagnetic compatibilityESD level 4
 Electrical fast transient burst level 4
Selcction of Specification
Digital Single phase Digital Panel Meter with A V Hz(9999 display programmable)
Model NO.DisplayFrame size(mm)Hole size(mm)Remark
RH-UIF11Digital Single-row LED160*80152*76
RH-UIF23Digital Three-row LED120*120111*111
RH-UIF33Digital Three-row LED96*9692*92
RH-UIF41Digital Single-row LED120*60114*56
RH-UIF51Digital Single-row LED96*4892*45
RH-UIF63Digital Three-row LED72*7268*68
RH-UIF73Digital Three-row LED80*8076*76
RH-UIF83Digital Three-row LED48*4845*45
Extended Modules:
AC/DC power supply(switching power supply)$4
Modbus-RTU RS485 comm:$5
AO: $7 more for each stem node
DI: $4 more for each stem node
DO:$4 more for each stem node
“*” means unconventional products of our corporation
Order notes: Please write clearly the requested types, input signal and the functional modules, etc when purchasing.
Others: Factory default settings (Use default setting if no instruction).
