Digital Spectrum Analyzer

Specifications

1.digital spectrum analyzer
2.Warranty:1 year
3.Delivery time: About 7days after received your payment
4.MOQ:1 pc
5. CE&ISO

A & E Lab.



A & E Lab Hot Selling are include: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer, PCR-Cycler, Blocker Heater, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker, See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, Melting Point Device, Shaker Incubator, etc.
Welcome to inquire us!



The information of our instruments:

Warranty : 1 year  / 3 years  / 2 years
Certifications: CE&ISO
Delivery time: Within 10 days after received your payment. (AAS: Within one month)
MOQ: 1 unit
Payment term: T/T advance, paypal, western union, Moneygram.

Cooperation type: Distribute / Neutral packing / OEM / ODM.



Key Features:

* Single beam spectrophotometer with highly stable optics.

* Extremely versatile with full functionality

 from 190 to 1100nm.

* Variable spectral bandwidth 0.5, 1, 2, 4,5nm.

* 2 or 8 cell holder available.

* 6 inches LCD display & integrated user interface.

* USB port for data storage.

* ISO/CE Certificate passed.

* A & E Lab PC software included as standard.

* Extensive range of accessories available.

Applications:

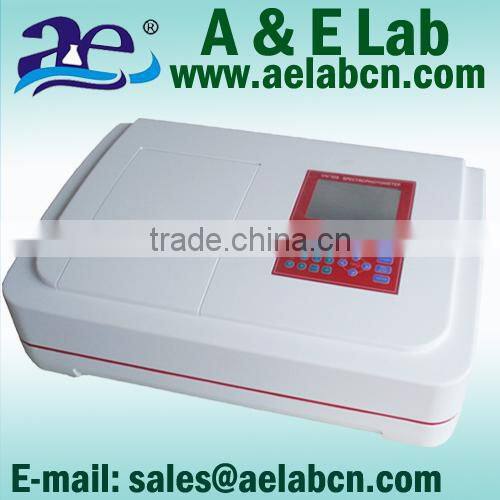

AE-S80 series are large scanning uv vis spectrophotometer which combine best features of single beam

spectrophotometer. They vary in bandwidth, wavelength accuracy and dimension. They provide excellent performance

for measurements in the range of 190nm to 1100nm. All spectrophotometers features high performance sealed optics

mounted on a stable machined platform.

AE-S80 series is ideal for quality control, general research, pharmaceutical, biochemical and clinical laboratory

applications. Such as: quantitative analyses, kinetics, wavelength scanning, multiple components and DNA/Protein

analysis,etc.

Ordering Information:

Order Code	Description
AE-S80-MS	Large screen, single bean, 4 cell holder, Bandwith: 0.5/1.0/2.0/4.0/5.0nm, with PC software.
AE-S80-1S	Large screen, single beam, 4 cell holder, Bandwith: 1nm, with PC software.
AE-S80-2S	Large screen, single beam, 4 cell holder, Bandwith: 1.8nm, with PC software.

Technical Specifications:

Wavelength		Photometric
Wavelength Range	190-1100nm	Photometric Accuracy	±0.3%T
Wavelength Accuracy	±0.3nm	Photometric Repeatability	0.2%T
Wavelength Repeatability	0.2nm	Photometric Display Range	0-200%T, -0.3-3.0A, 0-9999C
Band Width	1nm/1.8nm/0.5,1,2,4,5nm	Stability	0.002A/h @ 500nm
Others		Baseline Flatness	±0.001A
Data Output Port	USB	Noise	±0.001A
Printer Port	Parallel Port	Stray Light	≤0.05%T @220nm, 360nm
Optical System	Single Beam (1200 lines/mm grating)
Display	LCD (320X240 Dots )
Detector	Silicon Photodiode
Lamps	Deuterium & Tungsten Halogen Lamp
Power Supply	AC 220V/50Hz, 110V/60Hz.
Packing Size & Weight	860x660x465mm & 35kg
