Tube dry block heater tester1)Temperature Range:Room Temperature-200;
2)Need two insert blocks except the 96X0.2ml blocks.
A & E Lab Hot Selling are include: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer, PCR-Cycler, Blocker Heater,Shaker Incubator,Melting Point Device, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, Tube Roller Mixer, 3D Rocker, See-Saw Rocker, Vortex Mixer, Orbital Shaker, Cold Keeper, etc.
Welcome to inquire us!

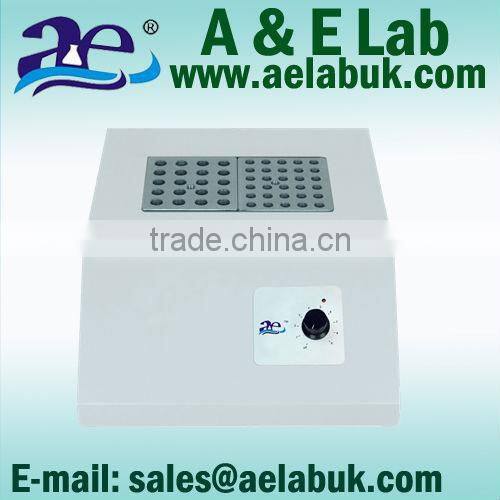

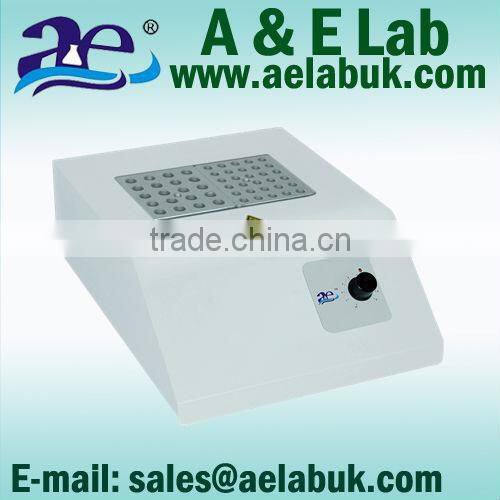

Tube dry block heater tester
Block heater is designed for widely use in Chemical, Biochemical, Clinical and other General Labs
for heating, digesting, incubating, concentrating and other heating processes.
There are two models of bock heaters, ABH-101 and ABH-102. Both are digital control with advanced
PID and giving better uniformity across blocks and much accurate heating.
Calibration can be easily set up using 1 to 5 points. After calibration, the display will reflect actual
sample tubes or block temperature.
ABH-101 can heat the block from room temperature to 200ºC, and accommodates three different
types of insert block; The ABH-102 have the same temperature range, but can be separately
controlled and run for the two different blocks.
Various block inserts can be chosen for different tubes and need to be ordered separately.
When ordered the 96X0.2ml block, the two adapters will added in the order. And 96X0.2ml block
can only be used in ABH-101.
All of the block heaters come with the block removal tool and thermometer ranging from 0 to 200ºC.
We provide 3-full years warranty with best service for these products.
Technical Specification:
Model | ABH-101 | ABH-102 |
Temperature Range | Room Temperature-200ºC | |
Temperature Stability | +/-0.1ºC | |
Temperature Maximum Variety Between Identical Blocks @ 50ºC | +/-0.2ºC | |
Power Supply | 230V, 50Hz or 110V,60Hz | |
2Dimension | 280x260x110mm | |
Difference | Need three insert blocks or on 96X0.2ml | Need two insert blocks except the 96X0.2ml blocks. |
Block Heater-Aluminum Blocks
All insert blocks made from anodized aluminum with identical dimension (75WX95LX50H) and can be
used in any combination except the 96X0.2 blocks.
We also provide any customer-made blocks with desired insertion depth and diameter.
Technical Specification:
Model | Tube (Diameter/Type) | No. Of Holes | Hole Size (dis. X depth)mm |
ADB-01 | 27mm | 6 | 26.75X47 |
ADB-02 | 0.5ml tubes | 30 | 7.8 (9º taper) |
ADB-03 | 96 well plate | --- | 6.3 (9º taper) |
ADB-04 | 2ml tubes | 20 | 10.5X33 |
ADB-05 | 13mm | 20 | 13.5X47 |
ADB-06 | 1.5ml tubes | 20 | 10.7X14 (9º taper) |
ADB-07 | 12mm | 20 | 12.6X47 |
ADB-08 | 12mm | 20 | 12.6X33 |
ADB-09 | 16mm | 12 | 16.5X47 |
ADB-10 | 10mm | 20 | 10.5X47 |
